Allen & Heath Qu Pac 32x32 USB Digital Mixer

Qu-Pac takes the power and legendary quality of the Qu family and shrinks it into a compact desk or rack mount format.

With Qu-Pac you are free to mix from your iPad, but the full functions of the mixer can be accessed from the front panel and touchscreen should you need them.

Custom settings and Cat5 expansion up to 38 inputs, makes Qu-Pac a scalable, failsafe solution for hardworking bands, schools, hotels, corporate events, live music bars, conferences, personal mixing and many more scenarios requiring a pro mixing solution in a tiny footprint.

User permissions and the customisable Qu-Control screen make Qu-Pac convenient and safe for day-to-day use by non-technical staff.

Qu series features include multitrack recording direct to USB, Automatic Mic Mixing, ProFactory mic presets, plus an ever growing ecosystem of apps, accessories and remote I/O.

Qu provides much more than just a mixer. Qu is an entire ecosystem with Remote AudioRacks allowing I/O to be placed where it’s needed, ME Personal Mixers expanding monitor mixes and enabling simple, time-saving local control, Qu Apps for complete remote setup and wireless mixing on stage or anywhere else in the venue, ProFactory Mic presets to speed up preparation time and ensure the best sound, plus USB recording and DAW integration for powerful workflow optimisation from one centrepiece device.

Touch Control
Having massive processing power and advanced functionality is great, but it counts for nothing if you can’t access the controls you need in a heartbeat.

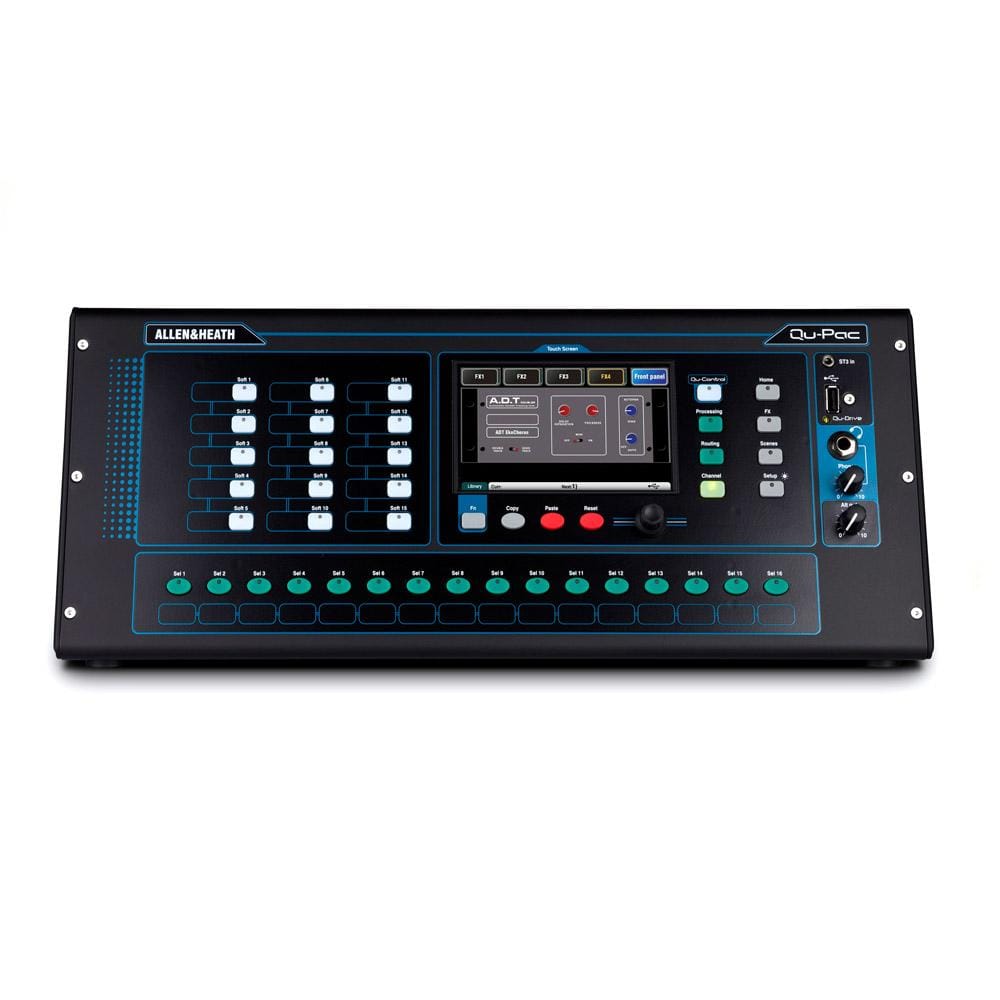

The 800 x 480, sixteen million colour Touchscreen and its dedicated data encoder form the heart of Qu-Pac’s interface, providing super-fast, easy access to all settings. Dedicated keys and screen tabs quickly guide you to meter and RTA views, FX racks, channel processing, USB audio control, scenes, setup menus and much more.

The Qu-Control key brings up a fully customizable screen which gives access to channels and settings tailored to the user and application. Several ‘widgets’ can be assigned to the page, including channel levels, mutes and assignment on/off switches and are arranged to suit the user requirement, for example, as a source selection and level control of background music to one or multiple zones.

Qu-Pac features sixteen built-in AnalogiQTM digitally controlled preamps with advanced zero-crossing detection and a padless 1dB-step gain stage, which have been closely allied to the DSP for optimal gain accuracy and audio transparency. The analogue signal is captured by high-class, low latency 24bit analogue to digital converters, which are matched to 24bit digital to analogue converters to deliver the required high quality output. The AnalogiQTM preamp design has been refined to offer superb transparency, minimal distortion and an ultra-low noise floor, with a warm, musical sound that is missing from some digital mixers.

Qu-Pac is a self-contained mixer, so if you’ve already got the analogue cables you’re good to go. If you’re thinking of trading in the copper multicore for a Cat5 digital snake, or expanding the number of input and outputs available, Qu-Pac’s built-in dSNAKE™ port has you future-proofed, allowing connection to a remote AB168, AR2412 or AR84 Stagebox. dSNAKE™ is our proprietary networking solution, boasting a transport latency of only 105us over cable runs of up to 120m / 390’.

The AudioRacks unleash all the power of Qu-Pac, giving you access to extra outputs for Stereo Matrix, Groups, and extra monitor Mixes.

Features :
  • 19” Rack Mountable
  • 16 local Mono Mic/Line Inputs (TRS + XLR)
  • Recallable AnaLOGIQTM Preamps
  • 3 Stereo Inputs (TRS)
  • 12 local Mix Outputs (XLR)
  • Expandable to 38 input, 24 out using dSNAKE AudioRack
  • 4 Stereo Groups (switchable to Mix mode)
  • Up to 11 Monitor Mixes (4 mono + 7 stereo)
  • 4 FX Engines
  • 4 dedicated FX Sends / Returns
  • 4 Mute Groups
  • 4 DCA Groups
  • AES Digital Out
  • 32×32 USB Audio Interface
  • dSNAKETM Remote Audio Port
  • 800×480 Touchscreen
  • 15 Soft Keys
  • 16 Custom Select keys
  • Trim, polarity, HPF, gate, insert, 4-band PEQ, compressor, delay on all Inputs
  • Insert, 4-band PEQ, 1/3 octave GEQ, compressor, delay on all Outputs
  • Automatic Mic Mixer
  • Channel Ducker on all Inputs
  • ProFactory Mic Presets
  • iLive FX Library
  • Built-in Signal Generator
  • RTA with Peak Band indication
  • Spectrogram to aid feedback elimination and room acoustics
  • DAW MIDI Control
  • Customisable Qu-Control screen to suit your application
  • Qu-Pad fully-featured iPad App
  • Qu-You iPhone / Android personal monitoring app
  • Qu-Control customisable iOS app for simple wireless control
  • Compatible with ME Personal Mixing System
Accessories
  • AB168 – 16 inputs, 8 outputs portable AudioRack with dSNAKETM connection and expansion port
  • AR2412 – 24 inputs, 12 outputs AudioRack with dSNAKETM connection, expansion port and dedicated port for personal monitoring
  • AR84 – 8 inputs, 4 outputs AudioRack with dSNAKETM connection
  • AH9650 – 100m drum of Etherflex cable with Neutrik EtherCon locking connectors
  • AH9981 – 50m drum of EtherFlex Cat5 with locking Neutrik EtherCon connectors
  • AH9651 – 20m Etherflex cable with Neutrik EtherCon locking connectors.
  • AH9997 – 2m cable with Neutrik EtherCon locking connectors
  • LEDLamp – variable brightness 18” gooseneck lamp
  • AP9933 – Qu-Pac carry bag
