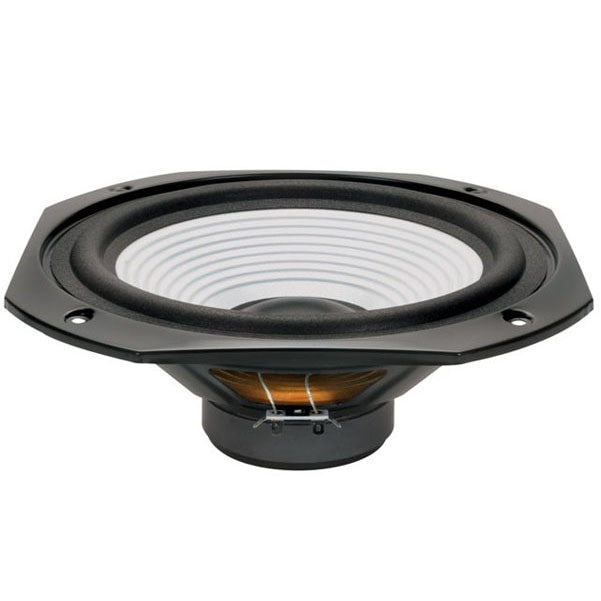

BAJAAO 10" Square Frame Paper Cone Woofer

Shop Brand : Bajaao
Shop All: Woofers

  • BAJAAO 10" Square Frame Paper Cone Woofer

    A perfect replacement woofer for classic hi-fi loudspeakers! The oversized decorative squared-off frame accommodates a wide variety of OEM driver cutouts. Smooth response and generous Xmax ensure optimum performance, and the use of modern materials and adhesives means your "experienced" speaker system will serve for many more years to come. Also great for DIY projects. Available in white or black cone versions.

    BAJAAO 10" Square Frame Paper Cone Woofer Features:

    • Attractive square stamped steel frame
    • Smooth response and hefty bass output
    • Treated paper cone
    • Foam half roll edge
    • Choice of white or black cone.

    BAJAAO 10" Square Frame Paper Cone Woofer Specifications:

    • Power Handling (RMS): 75 Watts
    • Power Handling (max): 150 Watts
    • Impedance: 8 ohms
    • Frequency Response: 32 to 3,500 Hz
    • Sensitivity: 89 dB 1W/1m
    • Voice Coil Diameter: 1.5"

    Thiele-Small Parameters:

    • Resonant Frequency (Fs): 32 Hz
    • DC Resistance (Re): 5.8 ohms
    • Voice Coil Inductance (Le): 1.32 mH
    • Mechanical Q (Qms): 3.01
    • Electromagnetic Q (Qes): 0.77
    • Total Q (Qts): 0.62
    • Compliance Equivalent Volume (Vas): 4.85 ft.³
    • Maximum Linear Excursion (Xmax): 4.25 mm

    Materials Of Construction

    • Cone Material: Paper
    • Magnet Material: Ferrite

    Mounting Information:

    • Overall Outside Diameter: 12.00"
    • Baffle Cutout Diameter: 9.125"
    • Depth: 4.00"
    • # Mounting Holes: 4

    Optimum Cabinet Size:

    • Sealed Volume: 4.68 ft.³
    • Sealed F3: 46 Hz
    • Vented Volume: 11.40 ft.³
    • Vented F3: 23 Hz.
