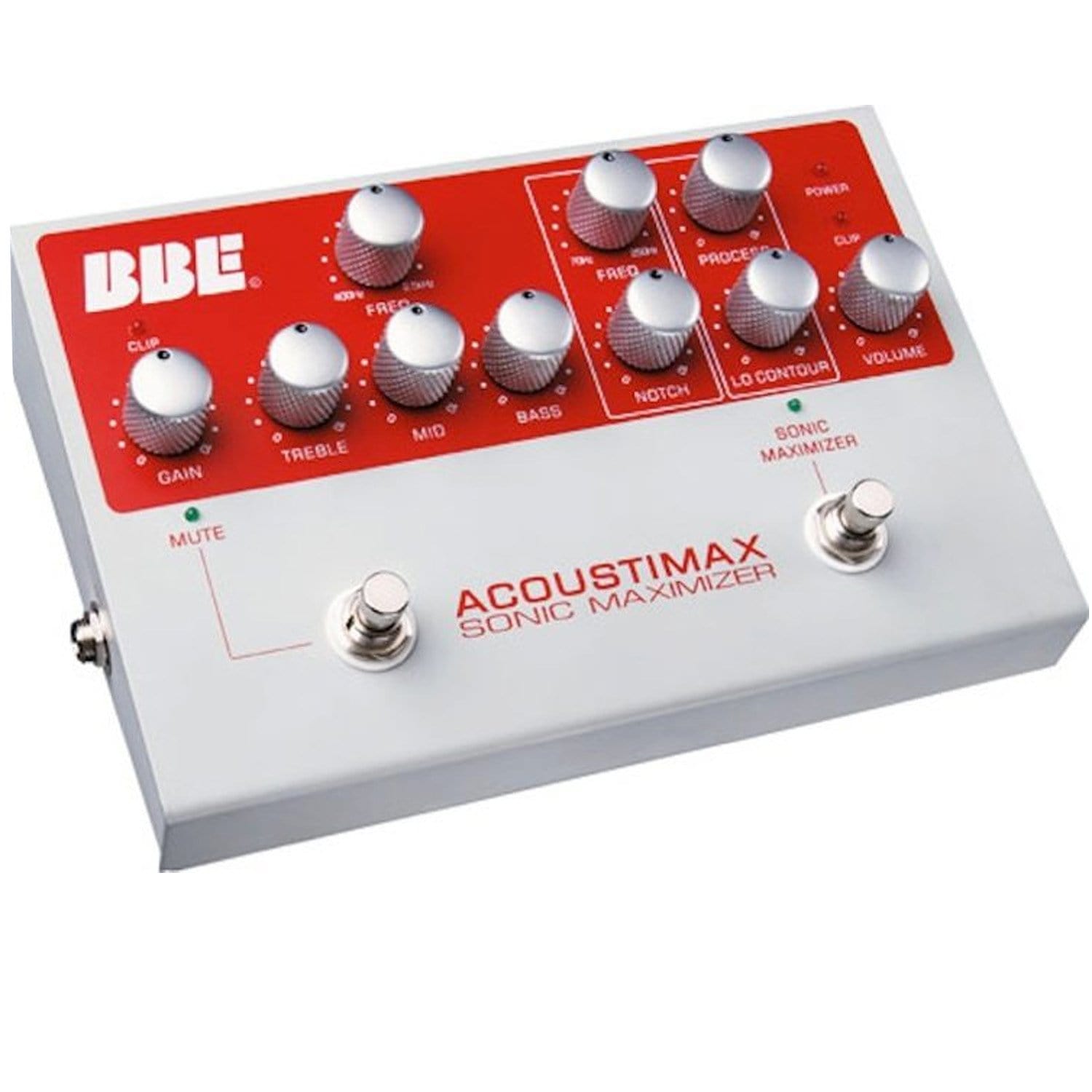

BBE Acousti-Max 386-Acoustic Instrument Preamp Pedal

BBE Acoustimax 386-Acoustic Instrument Preamp Pedal Overview : In the years since BBE last offered its award-winning 386 acoustic preamp,BBE's design and engineering teams studied the recording and sound reinforcement needs of serious acoustic players The result is all-analog Acoustimax,a stompbox-style acoustic preamp which raises the bar for amplified acoustic instrument sound quality.

Applications Recording studio Live concerts Features : Three band, recording-console quality eq with a sweepable mid-range band Low-frequency notch filter Phase reversal Ground lift Line level out Dedicated tuner out TRS effects loop Pre/post switchable-balanced DI output with pad Hardwire bypass Non-slip rubber bottom 12v power supply included Specifications : Frequency response 50Hz to 20kHz Treble ±12dB @ 10kHz Mid ±12dB @ 400kHz to 2.5kHz Bass ±12dB @ 60kHz Notch 0 to -12dB @ 70Hz to 250kHzBBE Lo Contour: +15dB @ 50Hz Process: +15dB @ 10kHzMaximum output +10dBu @ instrument jack Noise Instrument jack: -98dBv (unity gain) Line out: -88dBv (+10dB gain) Total harmonic distortion (THD) 0.05% @ 1kHz Impedances Input: 2.2M Ohm Tuner out: 2k Ohm Line out: 1k Ohm Instrument out: 2k Ohm XLR out: 600 Ohm (* 0dBu=0.775Vrms) Power requirements DC inlet +12 VAC min 200ma Designed and Engineered in USA Made in China.
