BBE MP24M 24-Channel Digital Mixer

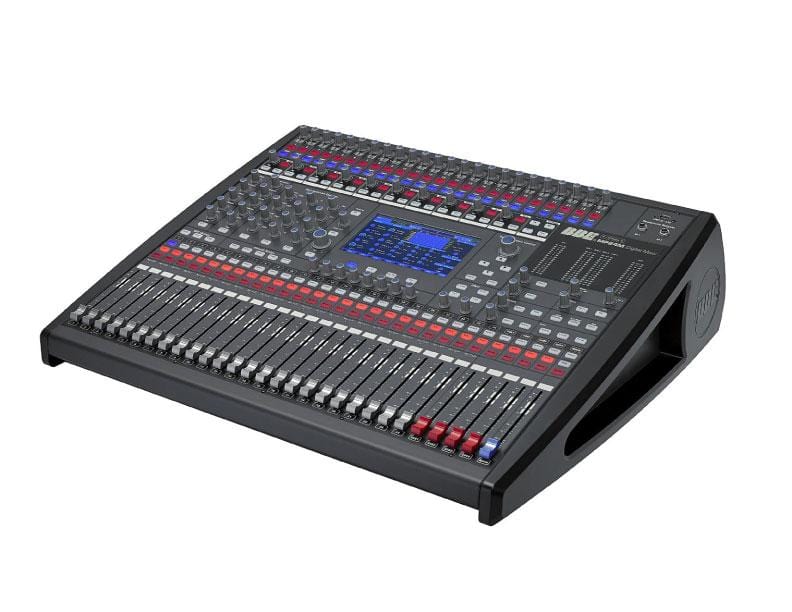

BBE MP24M 24-Channel Digital Mixer Overview : Introducing the BBE MP24M Digital Mixer, the only digital mixing system available with BBE Sonic Maximizer processing You can also take full advantage of wireless, remote mixing on your iPad from anywhere in the room via WiFi with our MP24M app, available in the iPad app store (requires the DMX-WM WiFi module).

The MP24M also includes it's own road case so that it's protected and ready to roll to the next gig when you are First, the BBE MP24M was designed to sound great, which is why we use class a mic preamps and SHARC 32bit floating point DSP processors Second, it was designed to be easy to use and intuitive to navigate.

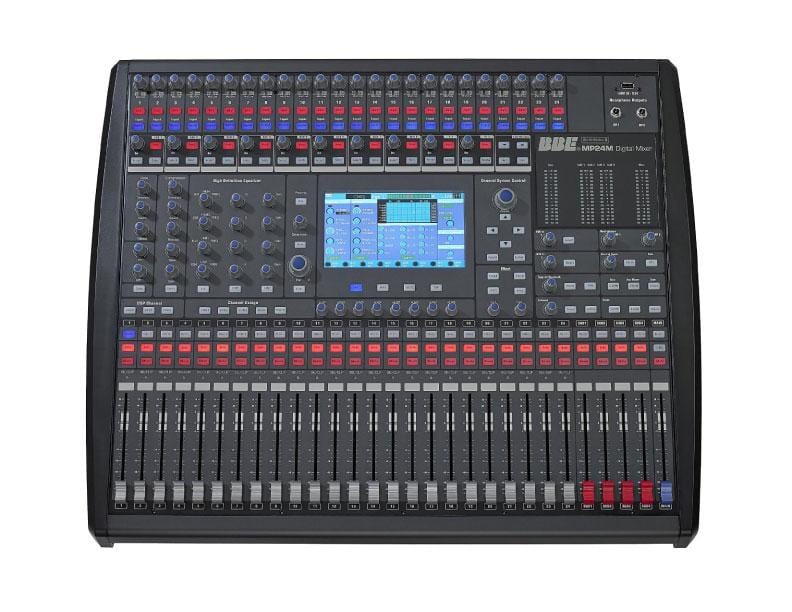

There’s little or no need to dig down through pages of menus to make on-the-fly mix adjustments, nearly all the MP24M’s functions and parameters have a knob, switch or button on the top of the console Adjusting EQ is as simple as selecting a channel and adjusting the EQ parameter, there’s a knob for each parameter…it sounds simple, but when you’re in the mix, speed is essential and simplicity becomes paramount.

The MP24M features 24 Class A microphone preamps, a virtual rack of fourteen 31-band graphic EQs, eight AUX sends and four Sub groups all with full DSP processing, and precise LED metering The input channels feature compressor, gate, high and low pass filters, four-band parametric EQ, delay, and polarity reverse.

The MP24M also lets you save FX presets, Channel DSP presets and full console Scene presets via simple to use Load/Save/Copy functions BBE's MP24M Digital Mixer was designed to create an unparalleled audio mixing experience.

It is simple and intuitive to operate even though it is a powerful mixing system Many digital consoles available in today’s market offer a stunning array of features and capabilities, the MP24M included, but what sets the MP24M apart is its ease of use.

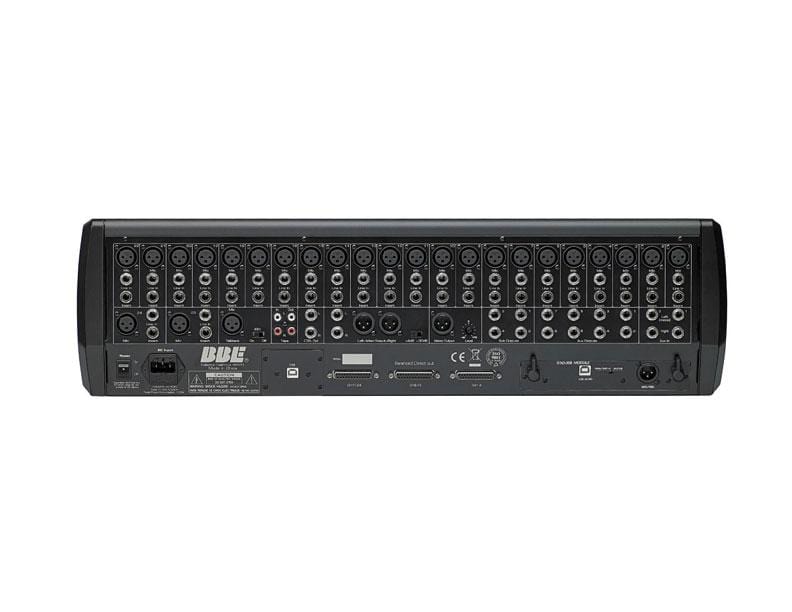

Anyone who’s trading in their analog mixer and taking the digital plunge will find the MP24M as intuitive and user-friendly as their faithful old analog workhorse, but quieter, cleaner, and with more sonic possibilities than they could ever imagine Features : Features BBE’s Sonic Maximizer processing Wireless Mixing via iPad or PC (requires DMX-WM WiFi card installed) 24 ultra-high headroom BBE MASS® Class A, Twin Servo mic preamps 2 Stereo AUX line Inputs 4 Subgroups Dedicated Mono Output with Variable Level Control 2 Digital Effects Engines Featuring BBE's Proprietary FX Library 8 AUX Sends 15 Total Analog Outputs (LIR Stereo Mains, Mono Main, 1-4 Subgroups, 1-8 AUX Sends) Assignable AES/EBU Output7 -inch full-color LCD display 100 Scenes can be Stored for Recall Anytime High-definition 24 bit/48 kHz A/D D/A converters 32-bit floating-point SHARC DSP Processors Dedicated Talkback mic input, fully assignable, w/EQ High and Low Pass Filters Full Function Gate and Compressor/Limiter4-band fully parametric EQ on every input and output Phase ReverseChannel Delay 31 Band 1/3 Octave Graphic EQ Available on all analog outputs Odd/Even Input Channels can be Linked Odd/Even AUX Sends and Sub-Groups can be Linked 2.4G Wireless Connectivity for Stereo Playback Devices 1OOmm Long Throw Faders Specifications : Frequency Response to Direct Output : 20Hz~100KHz at 0dBu ± 1.5dB Frequency Response to Main Output : 20Hz~20KHz at 0dBu ± 1.5dB Distortion (THD&N) to Direct Output : <0.005% at 0dBu ± 1KHz Distortion (THD&N) to Main Output" : <0.01% at 0dBu ± 1KHz SNR (Signal to Noise Ration) : 107dB Maximum Input Level : +21dBu Phantom Power (+/-3V) : +48VDC Line Inputs Frequency Response to Direct Output : 20Hz~100KHz at 0dBu ± 1.5dB Frequency Response to Main Output : 20Hz~20KHz at 0dBu ± 1.5dB Distortion (THD&N) to Direct Output : <0.005% at 0dBu ± 1KHz Distortion (THD&N) to Main Output : <0.01% at 0dBu ± 1KHz Gain : -15dBu~+35dBu Maximum Input Level (Gain at 0dBu) : +20dBu Aux 1~2 Inputs Frequency Response to Main Output : 20Hz~20KHz at +0dBu ± 1.5dB Distortion (THD&N) to Main Output : <0.01% at 0dBu ± 1KHz Gain : -∞ to + 10dBu Maximum Input Level : +22dBu Tape L/R Inputs Frequency Response to Main Output : 20Hz~20KHz at +4dBu ± 1.5dB Distortion (THD&N) to Main Output : <0.01% at 0dBu ± 1KHz Gain : -∞ to + 10dBu Maximum Input Level : +21dBu Talkback MIC Frequency Response to Main Output : 20Hz~20KHz at +0dBu ± 1.5dB Distortion (THD&N) to Main Output : <0.01% at 0dBu ± 1KHz Gain : -∞ to + 10dBu Phantom Power (+/-3V) : +48VDC Main Outputs Maximum Output Level : +20dBu Mono Output Maximum Output Level : +22dBu Aux 1~8 Outputs Maximum Output Level : +18dBu Sub 1~4 Outputs Maximum Output Level : +18dBu Tape Outputs Maximum Output Level : +14dBu Control Room Outputs Maximum Output Level : +18dBu System Crosstalk Input to Output (at +4dBu 1KHz) : -83dBu Adjacent Channels (at +4dBu 1KHz) : -82dBu Noise (Bus noise) : -85dBu Noise Gate Threshold Range : -84dBu - 0dB Attack Time : 0.5mS~200mS Release Time : 5mS~1S Compressor Threshold Range : -30dBu ± 20dB Attack Time : 0.5mS~200mS Release Time : 10mS~1S Ratio : 1:1~1:10 Gain : -0dBu ± 24dB EQ Low : (Low Pass or Low Shelf) 21Hz~19.2KHz +/- 24dB Low Mid : 21Hz~19.2KHz +/- 24dB High Mid : 21Hz~19.2KHz +/- 24dB High (High Pass or High Shelf) : 21Hz~19.2KHz +/- 24dB Digital Audio ADC Dynamic Range : 114dB DAC Dynamic Range : 114dB Internal Processor : SHARC 32-bit, floating point ADC,DAC bit depth/ sampling rate : 24 bit/48KHz Impedances Microphone Inputs : 1.4K Ω Channel Insert Return : 2.5K Ω All Other Inputs : 10K Ω or greater Tape Out : 1K Ω All Other Outputs : 120 Ω Operating Free-air Temperature Range : 0-40 C Storage Temperature Range : -20~60 C.
