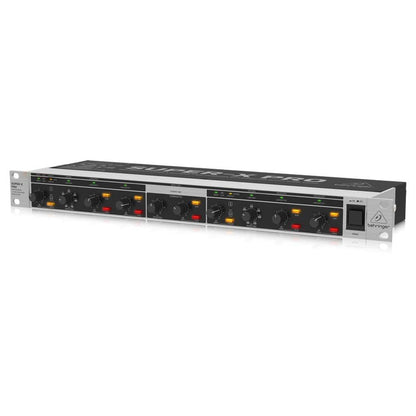

Behringer CX2310 V2 Stereo 2-Way Mono 3-way Crossover

Behringer CX2310 V2 Stereo 2-way/Mono 3-way Crossover Subwoofer Output Overview: SUPER-X PRO CX2310 V2 The CX2310 stereo 2-way/mono 3-way crossover provides amazing-accurate audio frequency separation, thanks to its state-of-the-art circuitry, superior-grade components, ultra low-noise op amps and balanced I/O connectivity Additionally, the CX2310 features an independently-adjustable Subwoofer Output, effectively providing an extra low-frequency band a control range from 10 - 235 Hz.

By using 1% metal film resistors, along with other extremely tight-tolerance components, the CX2310 is able to guarantee surgically-precise frequency selection with incredibly-low thermal noise Put simply, the easy-to-use SUPER-X PRO CX2310 is one of the best-sounding crossovers in its class! Sound Quality When a sound system is properly tuned, it becomes powerful, balanced and efficient.

Bass content is punchy and tight, with vocals and instruments that are rich, crisp and well defined The CX2310 crossover’s accurate signal processing protects critical loudspeaker components and improves overall system efficiency.

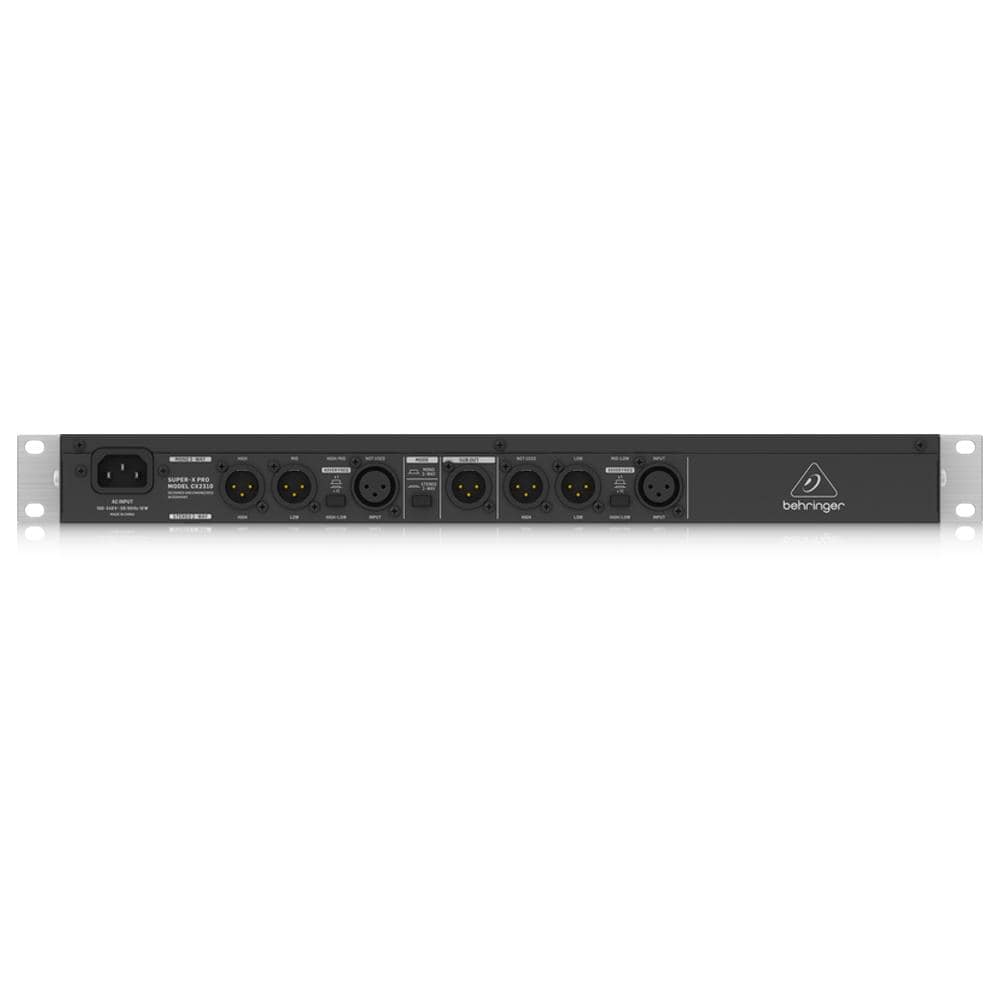

All Input and Output connections are balanced/unbalanced XLR and feature 25 Hz Low Cut filters for low-frequency driver protection – plus Mute and Phase Invert switches, making troubleshooting even a large system – virtually effortless! Divide and Conquer The CX2310 provides two modes of operation: 2-way stereo, for Left and Right Lows (woofers) and Highs (tweeters); and 3-way mono, for Lows, Mids and Highs In either mode, there is an additional output provided for a mono Subwoofer, with its own Frequency and Level controls.

This extra feature effectively turns the CX2310 into a stereo 2-way + mono 1-way, or a mono 4-way frequency crossover The Subwoofer Output is presented in mono, since people perceive extremely-low bass frequencies as being omnidirectional.

For your convenience, the CX2310’s front panel features an elegant and easy-to-read LED matrix, so you can see at a glance which operating mode has been selected – and which controls are currently active Extraordinary Value The high-precision CX2310 is the super-effective and affordable way to optimize the performance of your sound system – and protect your valuable loudspeaker investment at the same time! Features: Professional stereo 2-way/mono 3-way crossover featuring state-of-the-art Linkwitz-Riley filters with 24 dB/octave Additional subwoofer output with independent Frequency control Absolutely flat summed amplitude response, zero phase difference Individual output Gain controls for all bands Individual output Mute switches for easy band adjustment Individual Phase reverse switches for instant phase correction Switchable 25 Hz Low cut filter on each input for low-frequency driver protection Servo-balanced and gold-plated XLR connectors for all inputs and outputs Ultra-high precision potentiometers for ultimate accuracy and repeatability Illuminated switches for secure operation in dark stage environments Internal switch-mode power supply (100 - 240 V~) for noise-free audio and low power consumption.
