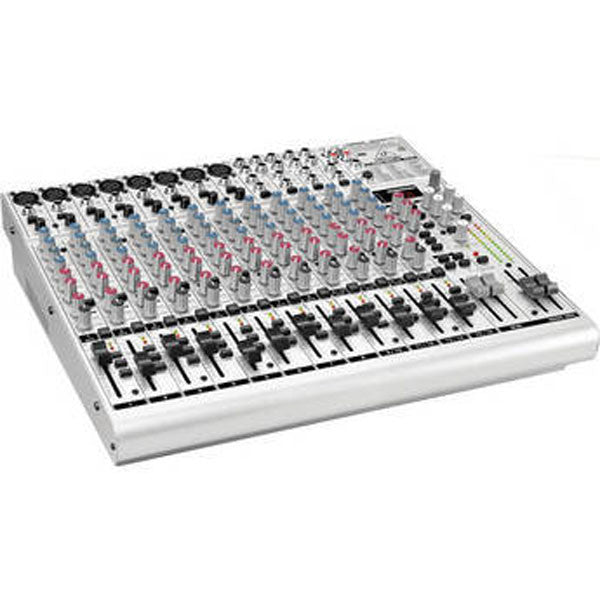

Behringer UB2222FXPRO Eurorack Channel Mixer

The Behringer Eurorack UB2222FX-PRO 22-Channel Mixer is versatile and feature packed for project audio mixing in home studios, musician rigs, podcast applications, sound reinforcement applications and more The UB2222FX-PRO features 16 balanced high-headroom line level inputs and 8 studio-grade IMP (Invisible Mic Preamps) with an impressive 130dB dynamic range, ideal for 24-bit, 192kHz recording environments.

There are 3 auxiliary sends per channel with one pre fader, one post fader and a dedicated send for routing internal effects Each channel features a musical 3-band EQ, and a switchable low-cut filter on all mono channels.

A built in internal effects processor features 100 internal effects, including reverb, chorus, flanger, phaser and more Ultra-low noise design, highest possible headroom, ultra-transparent audio 8 state-of-the-art, studio-grade IMP (Invisible Mic Preamps) with 130dB dynamic range for 24-bit, 192kHz sampling rate inputs Studio-grade stereo FX processor with 100 awesome presets including reverb, chorus, flanger, delay, pitch shifter and various multi-effects Effective, extremely musical 3-band EQ with semi-parametric mid band plus switchable low-cut filter on all mono channels Inserts on each mono channel for flexible connection of outboard equipment 16 balanced, high-headroom line inputs with +4/-10 level selection on stereo channels 3 aux sends per channel: one pre fader for monitoring, one pre/post fader switchable for monitoring/FX applications and one post fader (for internal FX or as external send) Clip LEDs, mute, main mix and subgroup routing switches, solo and PFL functions on all channels 2 subgroups with separate outputs for added routing flexibility 3 multi-functional stereo aux returns with flexible routing Balanced main mix outputs with TRS and gold-plated XLR connectors, separate control room, headphone and 2-track outputs Control room/phones outputs with multi-input source matrix 2-track inputs assignable to main mix or control room/headphone outputs Switchable +48 V phantom power for condenser microphones Rackmount brackets included Internal switch-mode power supply for maximum flexibility (100 - 240 V~), noise-free audio, superior transient response plus lowest possible power consumption for energy saving High-quality components and exceptionally rugged construction ensure long life Conceived and designed by Behringer Germany Features: Built-in Multi-FX Processor FBQ Feedback Detection System Low Noise Input Channels x22 Stereo & Subgroup Outputs Studio Grade IMP Mic Preamps x8 Musical 3-Band EQ Section Balanced High-Headroom Line Inputs x16 Stereo Inputs with +4 / -10 Level Select Aux Sends x3 Specifications: Inputs Mono Inputs Microphone Inputs (IMP Invisible Mic Preamp) Type: XLR, electronically balanced, discrete input circuit Mic E.I.N.

(20Hz - 20kHz) @ 0 ohms source resistance: -134dB / 135.7dB A-weighted @ 50 ohms source resistance: -131dB / 133.3dB A-weighted @ 150 ohms source resistance: -129dB / 130.5dB A-weighted Frequency response < 10Hz - 150kHz (-1dB), < 10Hz - 200kHz (-3dB) Gain range: +10 to +60dB Max input level: +12dBu @ +10dB gain Impedance: approx.

2.6k ohms balanced Signal-to-noise ratio: 110dB / 112dB A-weighted (0dBu In @ +22dB gain) Distortion (THD+N): 0.005% / 0.004% A-weighted Line Input Type: 1/4" TRS connector electronically balanced Impedance: approx 20k ohms balanced, 10k ohms unbalanced Gain range: -10 to +40dB Max.

input level: 30dBu Stereo Inputs Type: 1/4" TRS connector, electronically balanced Impedance: approx 20k ohms Max.

input level: +22dBu Attenuation Fade-out Attenuation (Crosstalk Attenuation) Main fader closed: 90dB Channel muted: 89dB Channel fader closed: 89dB Frequency Response Microphone input to main out < 10Hz - 90kHz: +0dB / -1dB < 10Hz - 160kHz: +0dB / -3dB EQ Section EQ Mono Channels Low: 80Hz / ±15dB Mid: 100Hz - 8kHz / ±15dB High: 12kHz/ ±15dB EQ Stereo Channels Low: 80Hz / ±15dB Low Mid: 500Hz / ±15dB High Mid: 3kHz / ±15dB High: 12kHz / ±15dB AUX Sends Type: 1/4" TS connector, unbalanced - 2x Impedance: approx 120 ohms Max.

output level: +22dBu AUX Retu\n \n \n AUX Returns \n Type: 1/4" TRS connector, electronically balanced - 2x stereo Impedance: approx 20k ohms balanced / 10k ohms unbalanced Max.

Input Level: +22dBu Outputs Main Outputs Type: XLR, electronically balanced and 1/4" TRS balanced Impedance: approx 240 ohms balanced / 120 ohms unbalanced Max.

Output Level: +28dBu Control Room Type: 1/4" TS connector, unbalanced Impedance: approx 120 ohms Max.

output level: +22dBu Headphones Output Type: 1/4" TRS connector, unbalanced Max output level: +19dBu / 150 ohms (+25dBm) \n \n \n DSP \n 24-bit Texas Instruments Converter: 24-bit Sigma-Delta, 64/128-times oversampling Sampling Rate: 40kHz \n \n \n Noise \n Main mix @ -∞ Channel fader @ -∞ -101dB Main mix @ -0dB; Channel fader @ -∞ -93dB Main mix @ 0dB; Channel fader @ 0dB -81dB \n \n \n Power Supply \n Mains voltage: 100 to 240 V~, 50/60Hz Power consumption: 46 W Fuse: 100-240V~: T 1.6A H Mains connection: Standard IEC receptacle \n \n \n Dimensions (HxWxD) \n 3.5 x 16.9 x 14" (90 x 430 x 355mm) Weight 12.1lb (5.5kg).
