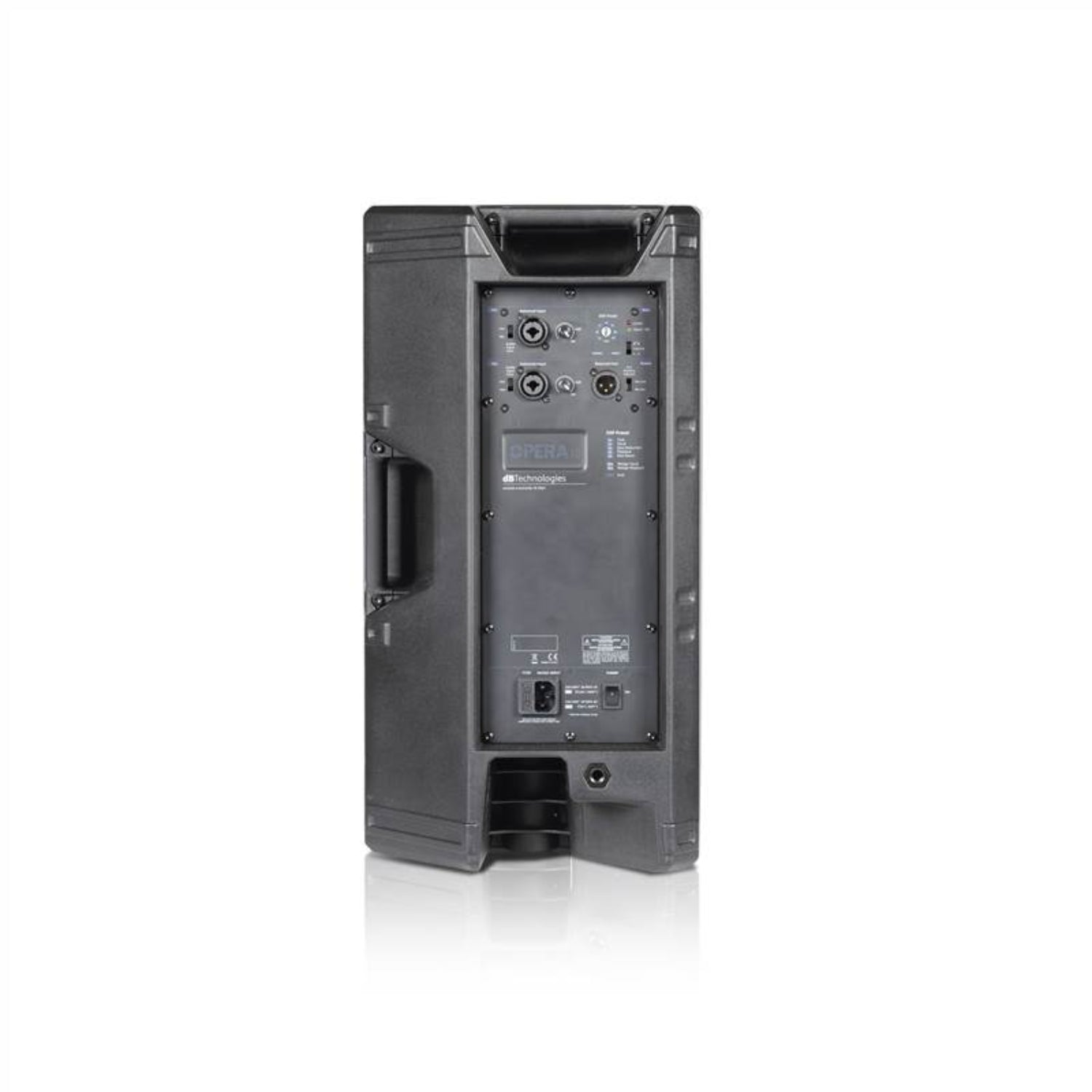

DB Technologies Opera 10 2-Way Active Speaker

Overview: Exceptional power and a unique acoustic design combine in order to deliver a vigorous yet accurate audio performance, successfully adaptable to both playback and live music applications Specifications: Technical Data Speaker Type2-Way Active Speaker Acoustical data Frequency Response [-10dB] : 58 - 20.000 Hz Frequency Response [- 3dB] : 70 - 19.600 Hz Max SPL : 128 dB HF : 1" Exit, 1.4 v.c.

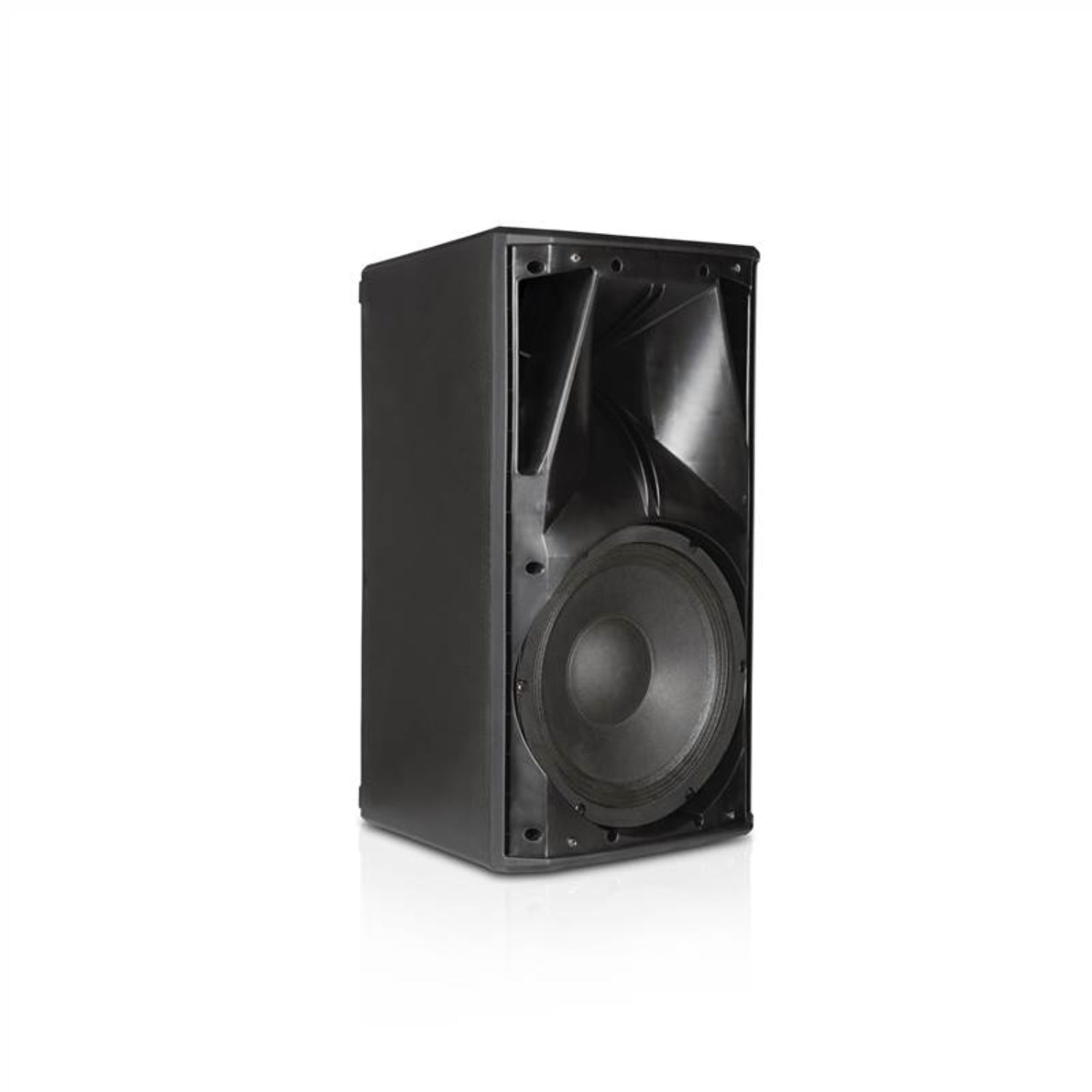

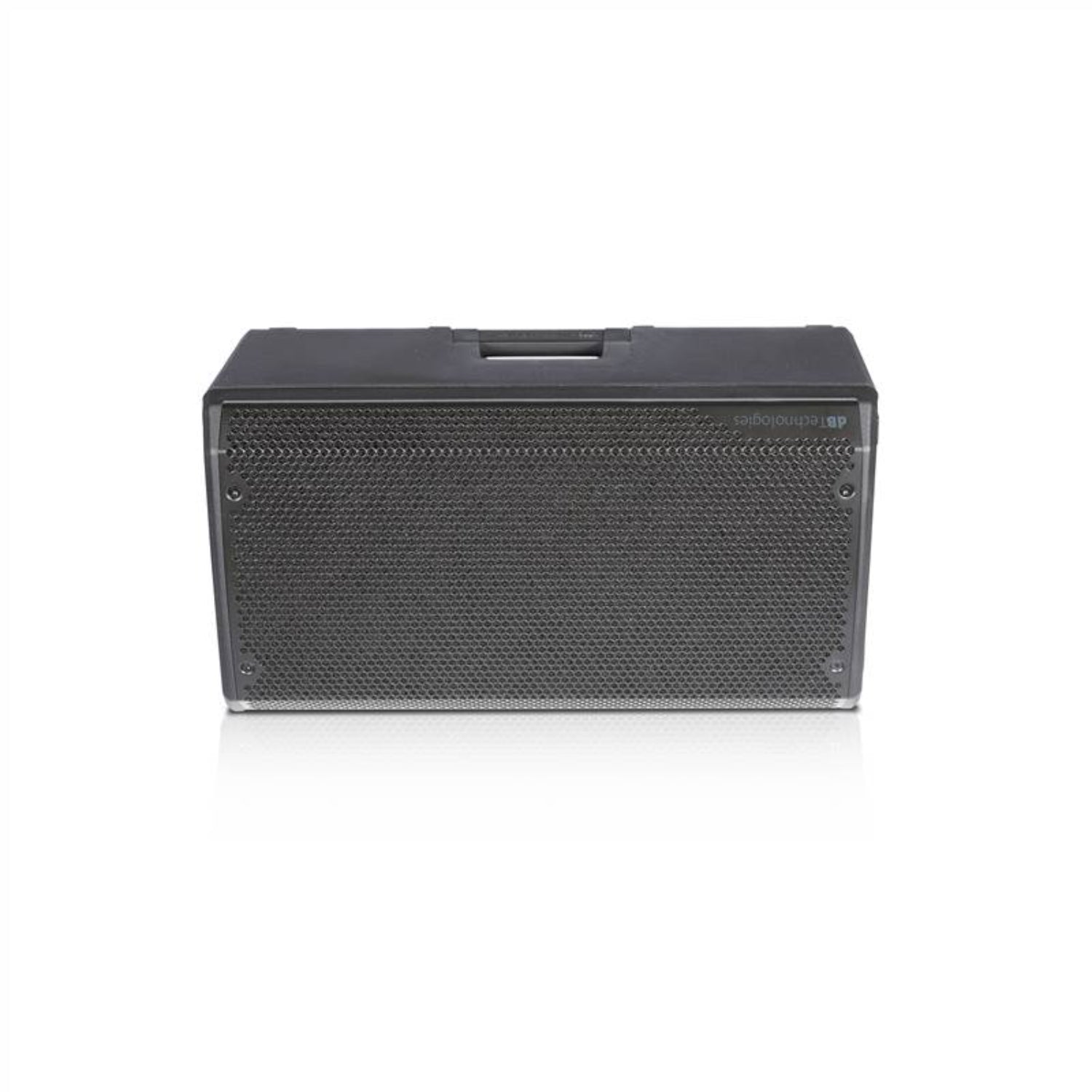

Type HF : Compression driver Horizontal Directivity : 100° (85° up/120° down) Vertical Directivity : 85° (+ 25°/-60°) Horn : Asymmetrical Horn LF : 10", 2" v.c Amplifier Amp Technology : Amp SMPS Power supply dual range Amp Class : Class D RMS Power : 600 W Peak Power : 1200 W Processor Controller : DSP 56 bit AD/DA Converter : 24 bit/48 KHz System Presets : Rotary Encoder (8 Presets) CrossOver Frequency : 2000 Hz Limiter : Peak, RMS, Thermal Advanced DSP Functions : Linear Phase FIR Filters Input Signal Input : 1xCombo (XLR/Jack 6.3 mm) MIC/Line 1xCombo (XLR/Jack 6.3 mm) MIC/Inst Signal Output : 1x XLR Male (CH1 Link/Mix OUT) Selectable Mechanics Housing : Polyproylene Grille : Full grille Handles : 1 on left Side, 1 on Top Rigging Points : 2XM10 on Top + 1x M10 on Back Pole Mount : D36 mm Angles up : Monitor use 45° Width : 300 mm (11.81 in) Height : 552 mm (21.73 in) Depth : 301 mm (11.85 in) Weight : 12.3 kg (27.12 lbs) Features: 1200 W Peak power 600 W RMS power Newly designed Asymmetrical Horn Advanced DSP with FIR filters 2 input channels (mic-line/mic-instr) Selectable output channel (link CH1/MIX CH 1+2) 8 EQ presets Fresh full grille design Stage monitor use.
