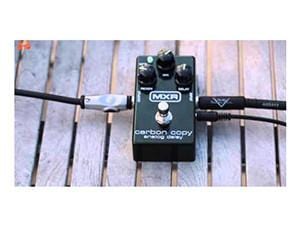

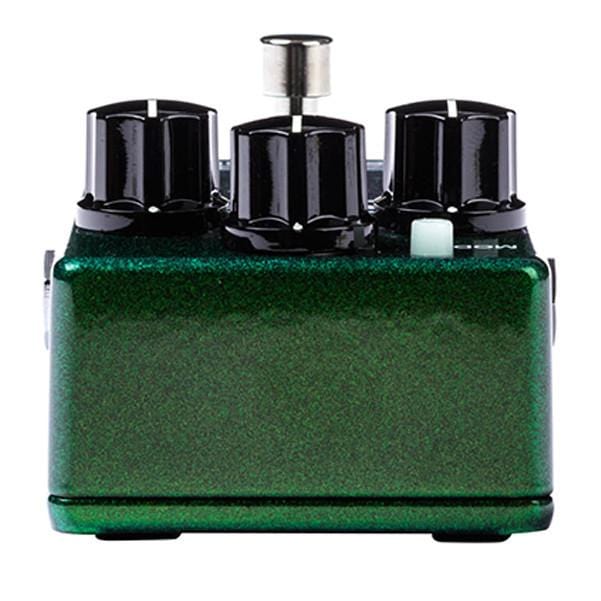

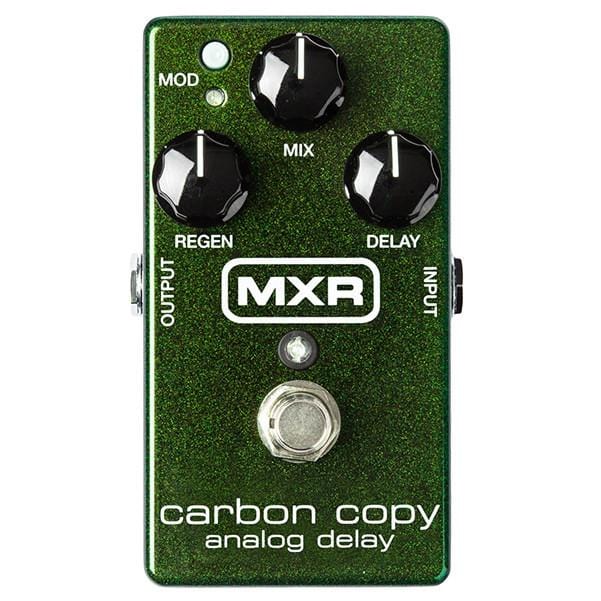

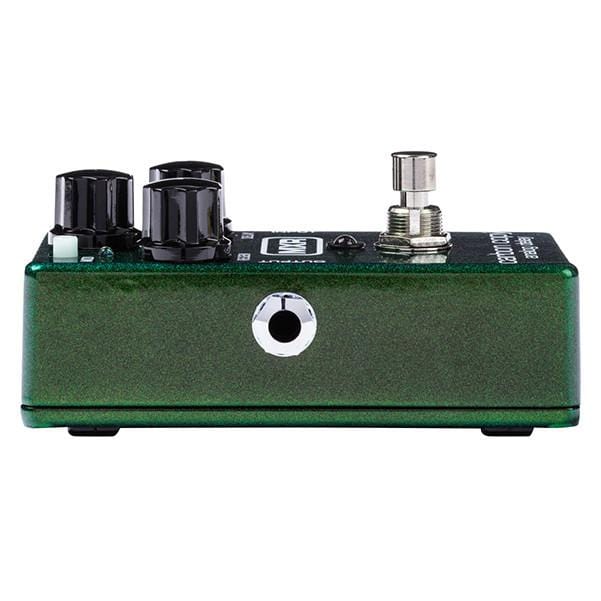

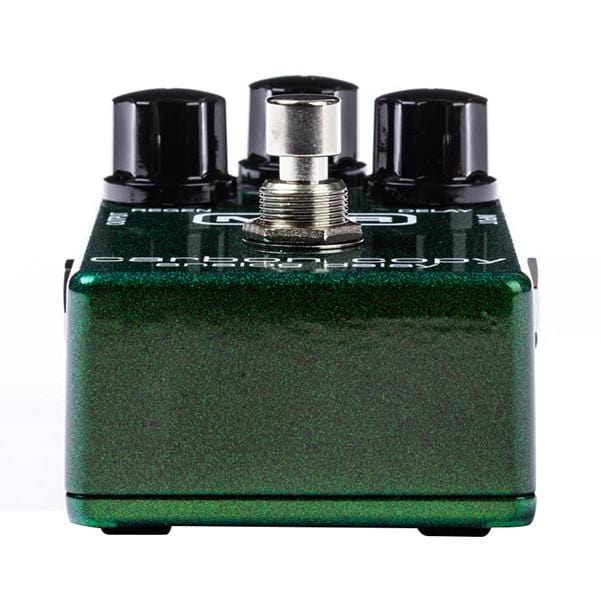

Dunlop MXR M169 Carbon Copy Analogue Delay Guitar Effects Pedal
The ultimate rich and warm delay effects pedal

Dunlop showcases the versatile analogue delay, made possible only with the aid of bucket-brigade technology. This boasts up to 600ms with a switchable modulation via a top-mounted switch. Get complete control over Delay, Regeneration and Mix with the simple three-knob layout. This incredibly compact pedal gives you everything from epic delays to crisp bathroom slap echoes. The blue LED indicates whether the device is on or off.




Ease of Use

If you're looking for a versatile delay effect pedals that’s sure to cater all your needs, look no further. Increase and decrease the number of repeats by rotating the Regen knob clockwise and anti-clockwise respectively. You can increase or decrease the delay time just by rotating the delay knob. The MOD button adds modulation to your delay signal.


Powered to Perform

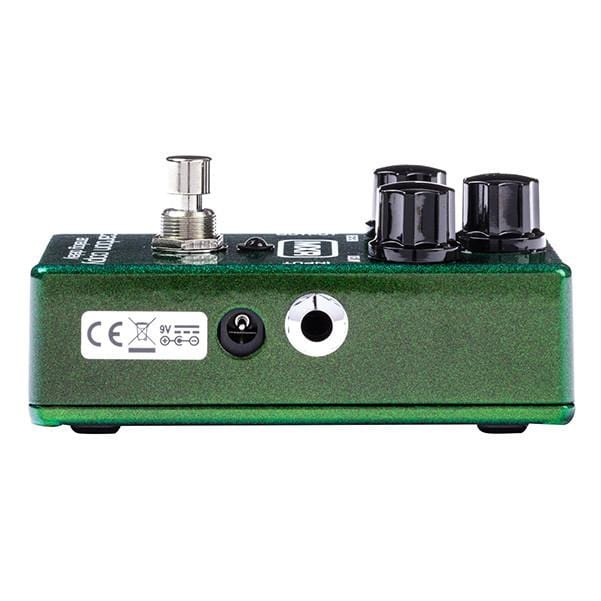

To power, this device all you need is one 9-volt battery or a 9-volt AC Adapter like the Dunlop ECB003/ECB003EU or a DC Brick power supply. The blue LED lets you know whether the device is active or not.


Create Magic with the Controls

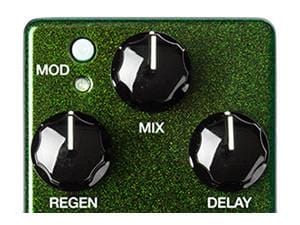

This device features various controls that help you create magic on-stage. It is equipped with Regen, MOD, Mix, Delay and Footswitch toggle. The mix knob controls the wet and dry signals. You just need to rotate it clockwise or anticlockwise. The number of repeats can be set with the Regen knobs. You can set the delay time with the delay knob. Toggle effects on/bypass with the footswitch.


Features:

  • It comes with an analogue audio path
  • The device is extremely compact
  • Features 600ms delay time
  • The various controls are Mod switch, Delay time, Mix, Regen
  • True hard-wire bypass
  • It has a 9-volt operation
  • Blue LEDs indicates whether the device is on or off
  • Constructed of high-quality material for long time use

Specifications:

  • Input Impedance: 1MΩ
  • Output Impedance: 1kΩ
  • Max Input Level: +5dBV at 500 Hz
  • Max Output Level: +8dBV
  • Delay Distortion: 1% at 1kHz, -5dBV Input
  • Delay Time: 20ms to 600ms
  • Noise Reduction: 2:1 ratio
  • Modulation Speed: 0.2Hz to 2.2Hz
  • Bypass: True Hardwire
  • Current Draw: 26mA
  • Power Supply: 9V DC

Noise Floor:

  • Mix at Max CW -96dBV
  • Mix at Max CCW -104dBV
