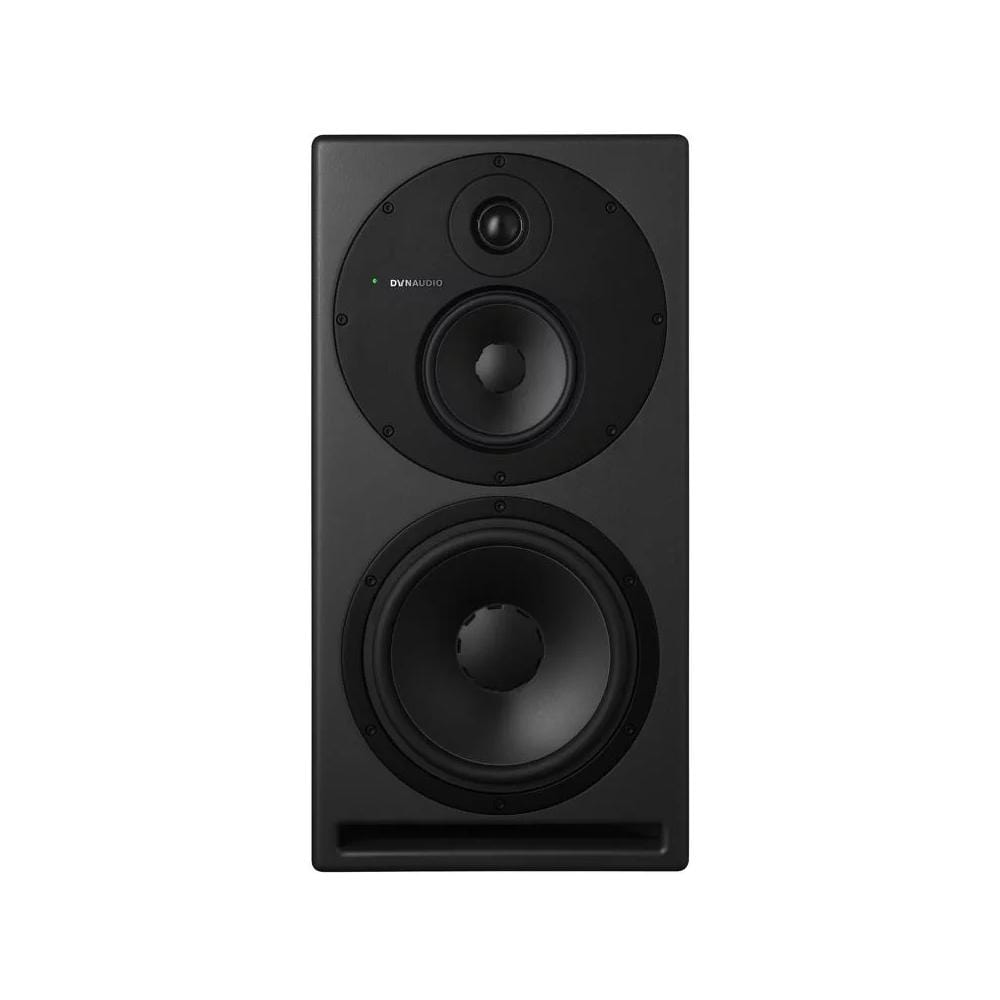

Dynaudio Core 59 3-Way Active Studio Monitor - Single

Dynaudio Core 59 3-way Active Studio Monitor Overview: Core 59 – the flagship of our high-end professional reference monitor series – is that monitor This three-way speaker features uncompromising class-D amplification, cutting-edge digital signal processing, a super-inert 32mm-thick baffle and a flat bass response down to 42Hz with -6dB at 36Hz.

It’s a serious system designed for serious audio professionals Core 59 has been made for the highest-demand environments that recording engineers, mixers, producers, and editors work in – and has been specifically designed to solve many of the monitoring issues that career professionals face every day.

Listen all day (and all night) without fatigue Listener fatigue is the thorn in the side of every studio engineer Once it sets in, you’re done for the day.

Core 59’s all-new Esotar Pro tweeter has been created to keep fatigue at bay so you won’t be finished before the mix is They provide hours of pinpoint imaging and detail without the tiring quality that’s common to other designs.

The Esotar Pro builds on this heritage with the ingenious Hexis device It’s an inner dome that sits just behind the diaphragm and optimises airflow, smooths the frequency response and eliminates unwanted internal resonances.

The result is outstanding imaging, transient detail, and effortless high frequency response The speaker’s 5in midrange driver provides staggering detail.

It uses our proprietary MSP (Magnesium Silicate Polymer) material in its cone for the best combination of lightness, stiffness and damping and, coupled with an aluminium voice-coil, has an incredibly fast response and authoritative control from its neodymium magnet system With crossover points at 312Hz and 5.1kHz, Core 59 delivers so much more of the critical vocal range in one driver than typical designs, ensuring your mix decisions on vocal balances and dialogue subtleties are made with total confidence.

Core 59’s new bass driver has emerged from over 18 months of intensive study into subwoofer driver technology, including 18S subwoofer, which dives all the way down to 16Hz The outcome of that research is a new copper voice-coil and glass-fibre former, pushed by ceramic magnets and a 500W class-D Pascal amplifier.

It gives the 9in long-excursion woofer even more grip on the bottom without sacrificing a deep frequency response Ultra-flexible positioning and the Orbit baffle AIR made it possible to use a three-way speaker in multiple orientations without compromising the midrange driver and tweeter’s phase response by using sealed midrange and tweeter assemblies that can be rotated in the cabinet.

Core 59’s Orbit baffle rotates too, so you can use it in left, right, or centre-channel orientation You can even position the woofer above the tweeter/midrange assembly to accommodate placement in front of a console in an LCR array.

Core 59 is also compatible with standard VESA mounting brackets or our custom K&M bracket should you want to mount them on walls or the ceiling as part of a multichannel or immersive-audio reference system such as Dolby ATMOS Sophisticated DSP that’s surprisingly easy to use The AIR series was famous for its advanced DSP system.

But our acoustic engineers don’t believe laurels are for resting on, so they’ve constantly been looking for better and more innovative ways of doing it That work has resulted in some great leaps in DSP sophistication – but also in the way it’s applied in everyday use.

Positioning is critical when installing a monitor system That’s why each Core 59 has two DSP filter switches to address its position and boundary locations.

For example, if you place the monitors on the meter bridge of a large-format mixing console, set them to ‘Desk’ This will help compensate for the first reflection created by the mixing surface.

On the other hand, if you put the monitors into a purpose-built wall, setting the Position 1 filter to ‘Soffit’ will compensate for the increased bass response Boundary effects created by placing a monitor close to walls or a ceiling can be compensated for by adjusting the Position 2 filter between ‘Wall’ or ‘Corner’.

These filters help compensate for the reflections created by the boundary walls, especially in the lower frequencies There’s also a low-frequency 80Hz Linkwitz-Riley cutoff that can be engaged if you’re using Core 59 with a subwoofer to extend the low frequency response.

Users can also alter the overall presentation Core 59 uses the same concept as the LYD series Sound Balance filter – a different design to typical shelving-EQ tweeter and woofer adjustments found on most active monitors.

Instead of simply fine-tuning the tweeter level up or down, which will affect phase response, Core 59 uses a full-spectrum band-pass filter that tilts depending on the desired tonal response In the ‘Dark’ setting, the entire frequency response is tilted so that 20kHz is down -1.5dB, while 20Hz is up +1.5dB.

In ‘Bright’, the tilt is reversed (+1.5dB at 20kHz and -1.5dB at 20Hz) This gentle filter maintains the proper phase response between the drivers while providing the tone that meet your tastes.

The changes are subtle, but often this little tweak is enough to make the sound balance just right Input sensitivity the way you want it The noise-floor and signal resolution of any monitoring system is critical to its performance.

Whether you’re using the analogue or digital inputs, you need to be able to control the gain staging between the monitor controller and the speaker system We’ve provided a range of 0dBu to +24dBu to match the analogue input sensitivity to the output level.

Once optimised, Core 59 processes all analogue signals at a 192kHz sampling rate and 64-bit resolution in the DSP (from the 24-bit analogue-to-digital converter) for the greatest degree of mathematical precision There’s a switch to determine the maximum output SPL with the greatest bit-depth in the DSP.

If you want the maximum level, set this to 112dB If you work mostly at lower levels, choose a lower SPL setting to optimise the bit-depth of the DSP for both inputs.

When using the AES digital inputs, you must determine which channel (left or right) of the AES stream is used for that monitor Core 59’s DSP operates at the incoming sample rate and either locks to the digital audio clock or word clock to maintain the most accurate signal possible.

The beating heart of your studio We’ve designed Core 59 for you We’ve designed it to be used however and wherever you need it – whether that’s for near-field, mid-field or main monitoring, or in soffit-mounted set-ups.

It’s made for music mastering, mixing, and recording; theatrical re-mixing; editorial and sound design for games or anywhere else you need an uncompromising critical monitoring system Core 59 is ready to be installed in high-SPL immersive audio and other multi-channel environments with both analogue and digital connectivity, DSP controlled acoustic response, and versatile positioning.

That means complete tonal consistency whatever your monitoring needs It really does give you everything you need to hear.

Specifications: Tweeter : 1in Midrange : 5in Woofer : 9in Inputs : Analogue and AES3 digital inputs Maximum 24-bit/192 kHz : Depending on input signal Maximum SPL : 112 dB @ 1 m anechoic, 118 dB half space Specification sheet for Core part 1 Crossover frequency : 385 Hz (LF/MF) / 5000 Hz (MF/HF) Frequency response : 38 Hz – 24 kHz - 6 dB Frequency response : 42 Hz – 21 kHz +/- 3 dB Principle : Front-loaded bass reflex Amplifiers : Pascal Class-D HF 150 W / MR 500 W / LF 500 W Dimensions (WxDxH) : 280 x 380 x 550 mm (11 x 15 x 21 11/16in) Weight : 24.6 kg (54.2 lb) Made in Denmark.
