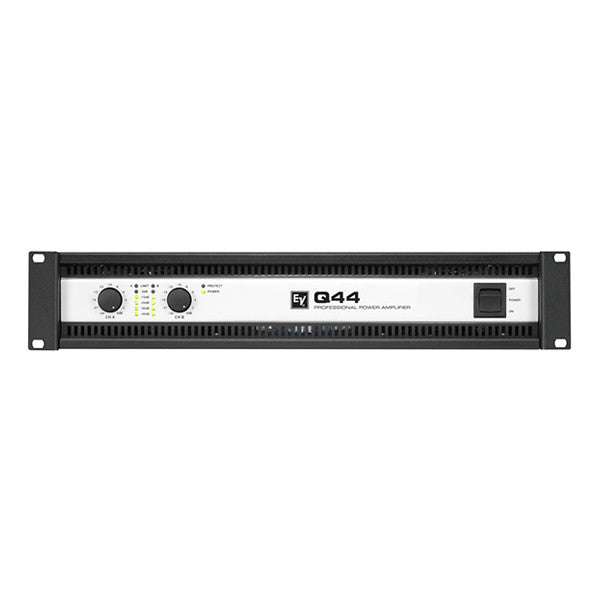

Electro-Voice Q44-II Power Amplifier

Electro-Voice Q44-II Power Amplifier The Q44-II from Electro-Voice is an amplification system that is suitable for a wide range of sound systems such as ZX, TourX, and Phoenix loudspeaker families This amplifier incorporates functional circuitry that guards its components against overheating, short circuit, and inrush current.

The integrated low-pass notch filter helps the amplifier deliver the desired punch by correcting the phase and frequency response of the connected speakers This system features balanced XLR inputs and outputs.

The Q44-II has been designed with reference to the 19" rack unit model; it has a rack unit of 3.5" The robust construction of this system ensures immense durability.

Features: Balanced XLR in/out LPN (Low-pass notch) filter protection DC protection Temperature switch-off Specifications: Continuous Rated Power (1kHz, THD 1%): At 2Ohm: 650W At 4Ohm: 450W At 8Ohm: 270W Continuous Rated Power (20-20kHz, THD<0,2%): At 4Ohm: 400W At 8Ohm: 200W Compatible Power: 2Ohm Input/Output: Balanced XLR Output: Speaker Twist Cooling: Front-to-Rear and 3-stage fans Size: 19-inch, 2U Dimensions: 483 x 88.1 x 421.5mm (W x H x D) Includes: Gnd lift, Limiter, LPN Filter (Low-Pass-Notch) protections, Temperature switch-off, DC protection, and Fan.
