Ibanez TWP10 Twin Peaks Wah Pedal

Ibanez TWP10 Twin Peaks Wah Pedal Overview: Twin Peaks is a new wah-wah pedal from Ibanez unlike any other before it. Most conventional wah-wah pedals utilize a single peak point to achieve the effect, but Twin Peaks doubles down on this sound by utilizing dual peak points at a higher and lower frequency. This is achieved through the use of dual inductor circuitry.

Additionally, the mix of the two frequency peaks can be controlled via a balance knob, inspiring enriched levels of sonic experimentation with this exciting and entirely new pedal from Ibanez .

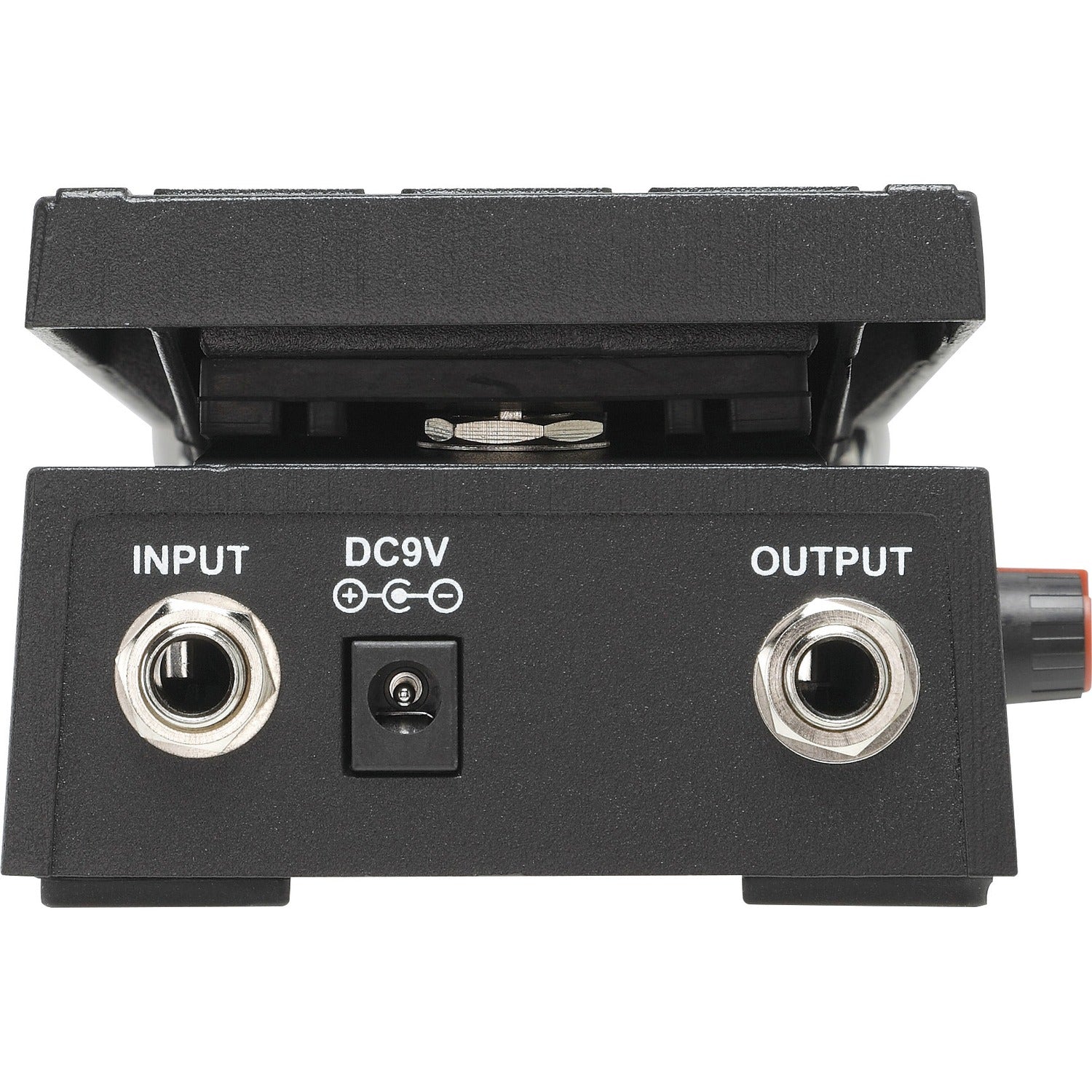

Control: Master level, Balance Switches: Tone mode (High/Low) True Bypass I/O's: Input, Output Weight: 815g Size: 96(W) x 202(D) x 84(H) (mm) Required current: 15mA@9V Power supply: One 9 volt battery or external DC 9 volt AC adapter Features: BALANCE control BALANCE controls the mix ratio of the two peak levels created by the dual inductor circuit resonances.

The higher frequency provides a sweepable range similar to that of most traditional wah-wah pedals. The lower frequency is closer to what’s generally found on modified or signature wah-wah pedals. Turning the BALANCE control counter-clockwise emphasizes the higher-frequency peak, while turning it clockwise emphasizes the lower-frequency peak.
