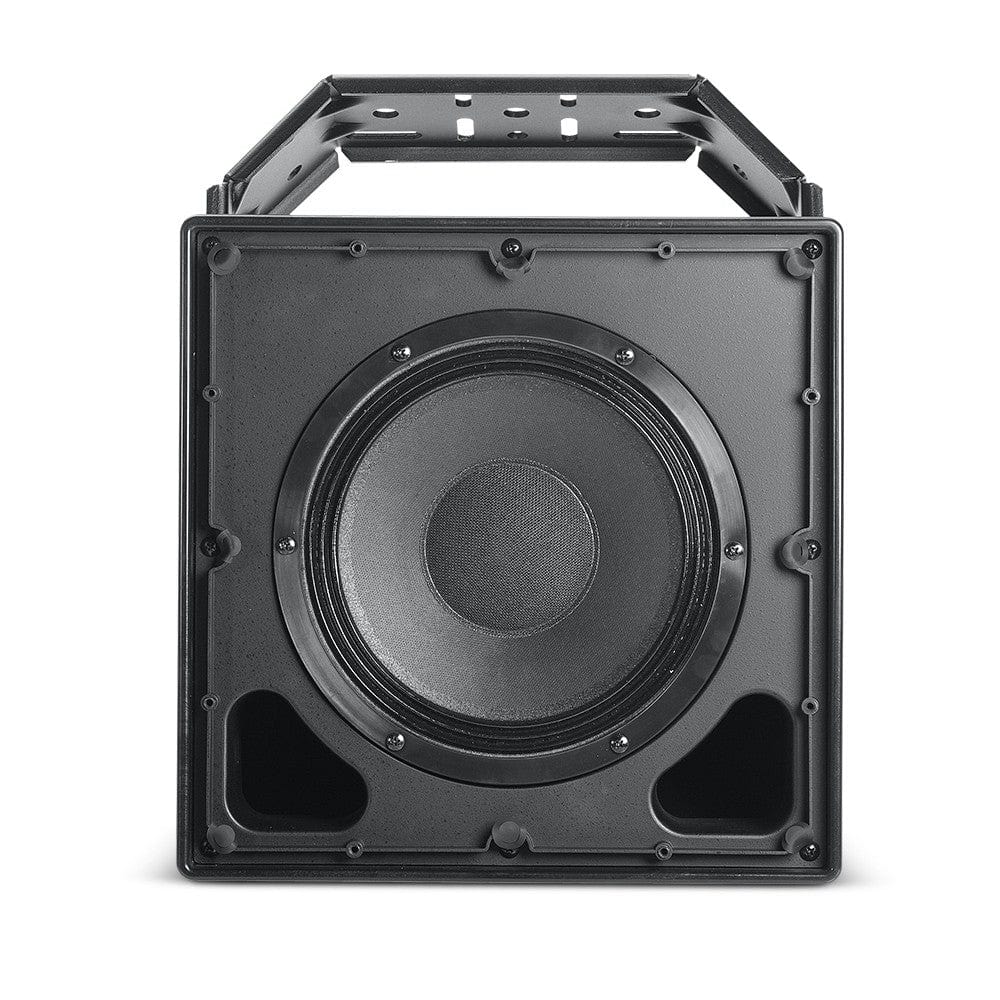

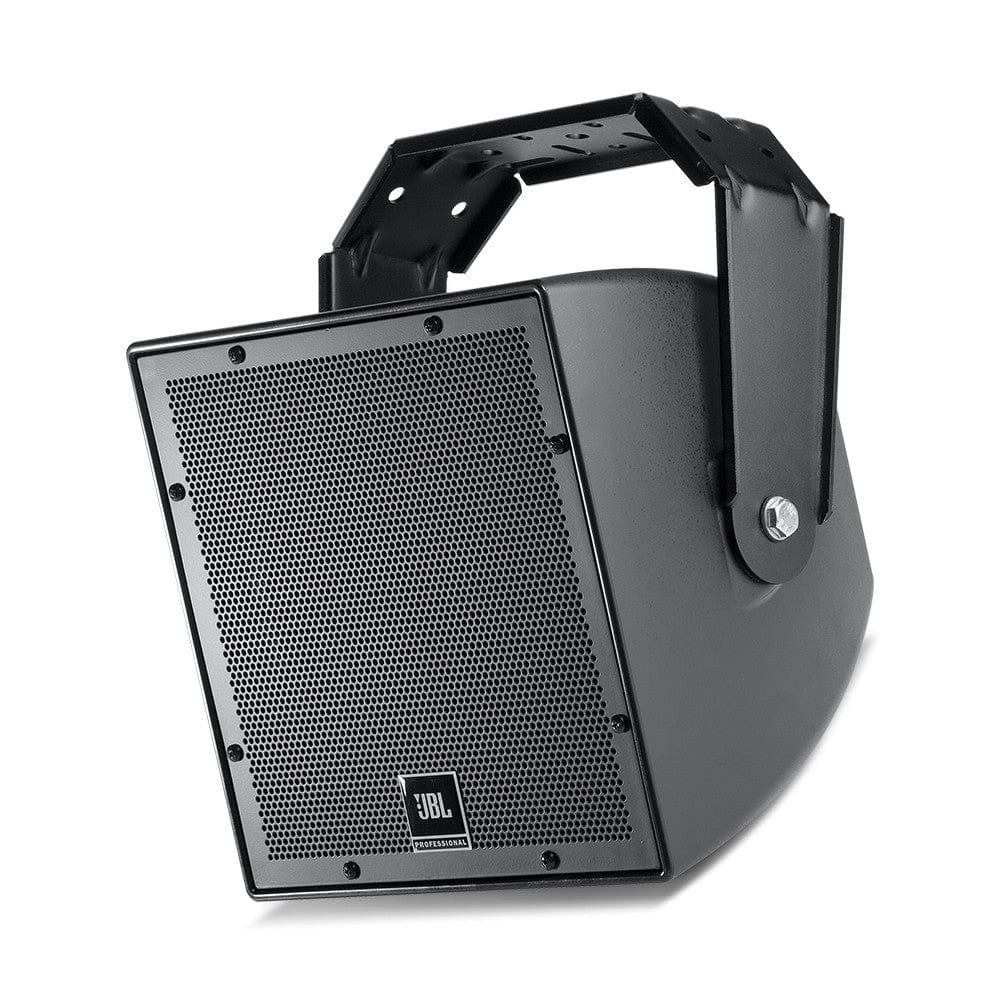

JBL AWC82 All Weather Compact 2-Way Coaxial Loudspeaker with 8" LF

JBL AWC82 All Weather Compact 2-Way Coaxial Loudspeaker with 8" LF Overview: Features Highly weather-resistant IP56 rating Consistent 120° x 120° broadband pattern control Components: • 200 mm (8 in) woofer with Kevlar-reinforced cone and 50 mm (2 in) voice coil. • 25 mm (1 in) exit compression driver with unique patented design and high temperature polymer diaphragm. Extraordinary clarity for speech, with extended frequency response for music.

Advanced high-slope crossover network for constant coverage and smooth, natural midrange. 250 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability. High-power passive crossover network. Overload protection 80 Hz – 20 kHz frequency response. 200 Watt 70V/100V multi-tap (built-in transformer) or direct 8Ω low-impedance.

Specification: Frequency Range (-10dB): 80 Hz – 20 kHz Frequency Response (±3 dB): 100 Hz – 20 kHz Coverage Pattern: 120° x 120° Directivity Factor (Q): 8.1 (1 k – 16 kHz) Directivity Index (DI): 8.4 dB (1 k – 16 kHz) System Power Rating: 250 W 2 hrs. 200 W 100 hrs Sensitivity (2.83V @ 1m): 94 dB (Ave.
