Neumann M147 Tube Microphone


EMI starts from Rs. 11,861.85. Click here for options.

Shop Brand : Neumann
Shop All: Microphones
SKU : NEUMANNM147TUBE

Buy Neumann M147 Tube Microphone online in India at the best price with free shipping from BAJAAO - India's music equipment superstore.

Neumann M147 Tube Microphone

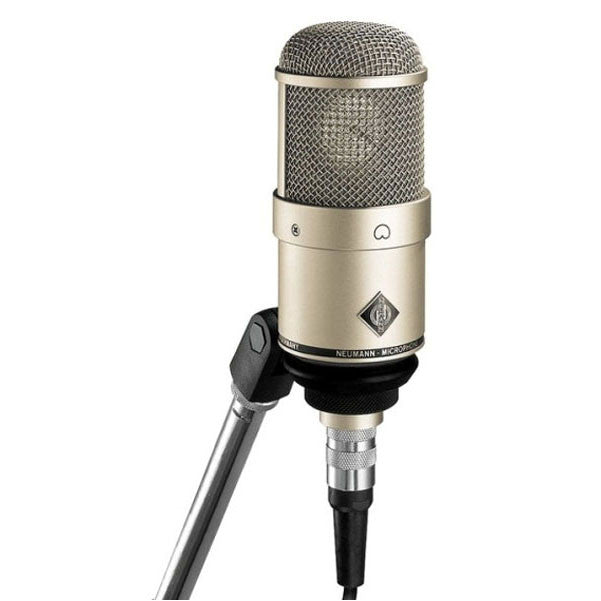

The Neumann M 147 Tube Microphone is a vacuum tube large diaphragm condenser microphone with a cardioid polar pattern.

The pressure gradient, dual diaphragm capsule is the K 47/49, inherited from the legendary U 47 and M 49 microphones.

Following the tube is a transformerless output circuit providing low self-noise and high output gain without adding color to the signal.

The M 147 Tube delivers high output levels, allowing the microphone to feed cables up to 300m in length without signal degradation.

The side address capsule features a cardioid polar pattern which is effective in minimizing ambiance and noise coming from the off-axis sections of the microphone.

The capsule features a flat frequency response to the upper midrange, and a boost of up to 3dB above 2kHz.

The M 147 Tube is a suitable microphone for recording vocals and general instruments such as strings, piano and wind instruments.

Tube Circuitry

The M 147 Tube features a combination of solid state and vacuum tube circuitry. The Vacuum tube design provides a type of warmth and definition not often found in solid state circuitry.

K 47/49 Dual Diaphragm

Featuring the K 47/49 dual diaphragm, adapted from the legendary M 49 and U 47 Tube microphones. The M 147 maintains the level of sonic character at a modest price point.

Quality Output Circuitry

The Transformerless output design provides a low noise floor and output gain high enough to feed cables up to 300m in length without degradation in signal.

Cardioid Polar Pattern

The cardioid polar pattern effectively minimizes off-axis noise caused by room ambiance, instruments, monitors etc. The pattern offers a more generous pick up area with lower range frequencies.

N 149A Power Supply

The Neumann N 149A power supply effectively powers the microphone and is compatible with both the M 149 and 147 microphones.

Includes:

  • M 147 Tube microphone
  • N 149 A power supply incl. power cable
  • SG 2 swivel mount
  • KT 8 microphone cable
  • Aluminium case.

Neumann M147 Specifications:

  • Transducer: Pressure Gradient Condenser
  • Polar Pattern: Cardioid
  • Frequency Response: 20 Hz - 20 kHz
  • Dynamic Range (Typical): 102 dB, (THD Less Than 5%)
  • Signal-to-Noise Ratio: 70 dB, (CCIR 468-3),
    82 dB, (DIN/IEC 651)
  • Maximum Input Sound Level: 134 dB, (@ 1 kHz, THD Less than 5%)
  • Power Requirements: N 149-A Power Supply Included
  • Output Impedance: 50 Ohms
  • Output Connectors: XLR-3M Type (Output from Power Supply)
  • Pad: None
  • Low Frequency Roll-Off: None
  • Dimensions: 5.6 x 2.2" (142.24 x 55.88mm) LxD
  • Weight: 16.2 oz (459g).
