Shure MX395B/O-LED Microflex Microphone with Remote LED Operation

Shure MX395B/O-LED Microflex Microphone with Remote LED Operation

This item is out of stock


Buy Shure MX395B/O-LED Microflex Low Profile Boundary Microphone with Remote LED Operation online in India at the best price with free shipping from BAJAAO - India's music equipment superstore.

Shure MX395B/O-LED Microflex Low Profile Boundary Microphone with Remote LED Operation.

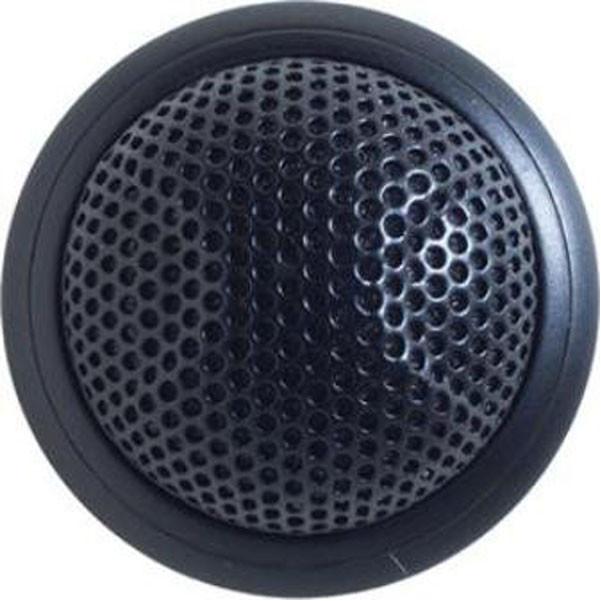

The Shure MX395B/O-LED Microflex Boundary Microphone with Remote LED Operation, Omnidirectional (Black) is a low profile boundary microphone designed for concealed capturing of conversations, speech and ambient audio while mounted in a flat surface, such as a desktop, ceiling or podium. The MX395B/O-LED measures just 1.25" (3.8 cm) in diameter, making it an ideal solution for video and broadcast operation.The microphone features an optimized frequency response and is available in a bi-directional, cardioid or omnidirectional polar patterns. Additional features include logic-controlled mute and a bi-colored LED ring for indicating open or mute status. The MX395B/O-LED is an ideal choice for speech capturing in meetings, executive boardrooms, conferences, news broadcasts and more.

Shure MX395B/O-LED Features:

  • Miniature Size: The MX395 measures just 1.25" (3.8 cm) in diameter, making it an ideal solution for video and broadcast operation
  • Omnidirectional: The omnidirectional polar pattern provides a uniform pick up at the entire perimeter of the microphone
  • Bi-color LED Ring: Additional features include logic-controlled mute and a bi-colored LED ring for indicating open or mute status
  • Remote LED: This connector for this MX395 features a 5-pin XLR connector for remote control over the LED

Shure MX395B/O-LED Specifications:

  • Frequency Response:50 to 17000 Hz
  • Polar Pattern:Omnidirectional
  • Output Impedance:EIA Rated at 150 Ohms (170 Ohms actual)
  • Output Configuration Active balanced
  • Sensitivity -28 dBV/Pa (42 mV)
  • Maximum SPL:Omnidirectional: 114 dB (1 kHz at 1% THD, 1 kilohms load)
  • Equivalent output Noise (A-weighted):Omnidirectional: 21 dB SPL
  • Signal-to-Noise Ratio:Omnidirectional: 73 dB (referenced at 94 dB SPL at 1 kHz)
  • Dynamic Range (1 kilohm load at 1 kHz) Omnidirectional: 93 dB
  • Common Mode Rejection (10 Hz - 100 kHz):45 dB minimum
  • Preamplifier output Clipping level:-8 dBV (0.4 V)
  • Polarity 5-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 4 relative to pin 2 of output XLR connector
  • Output Connectors 5-pin XLR
  • Pad:No
  • Low Frequency Roll-Off:No
  • Logic Connections LED IN: Active low (=1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V
  • Operating Temperature:-18 to 57 deg. C (0 to 135 deg. F)
  • Storage Temperature:-29 to 74 deg. C (-20 to 165 deg. F)
  • Relative Humidity:0 to 95%
  • Power Requirements:48 - 52 Vdc phantom, 8.0 mA
  • Dimensions (Dia):1.25-inch (3.8 cm).
