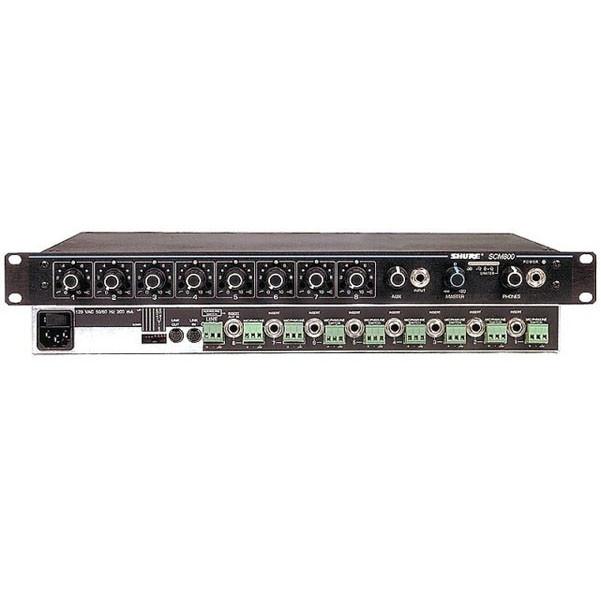

Shure SCM800 8-Channel Microphone Mixer

Buy Shure SCM800 8-Channel Microphone Mixer online in India - India's music equipment superstore Shure SCM800 8-Channel Microphone Mixer The Shure Model SCM800 is a full-featured, eight-channel microphone mixer for sound reinforcement, general audio recording, and audio-visual systems.

Any low-impedance, balanced dynamic or condenser microphone , including a wireless microphone system, can be used with the SCM800 mixer Each SCM800 accepts up to eight microphone- or line–level inputs and one aux-level input (two input jacks feed the same channel).

Up to four SCM800 mixers can be linked to provide up to 32 input channels Each input channel has a two-band equalizer, switchable microphone- or line-level operation, switchable 48 V phantom power, and a 1/4-inch send/receive insert jack.

Shure SCM800 Features: Compatible with Shure SCM410, SCM810 and FP410 automatic microphone mixers Adjustable EQ per channel: low-frequency rolloff and high-frequency shelving 48 V phantom power selectable for each input Active balanced microphone- and line-level inputs and line level output Highly RF-resistant chassis and circuitry LED indication of channel clipping Linking capability for systems up to 32 microphones Two Aux-level input jacks that feed one channel Insert jack on each channel Manual mixing of input channels Internal Modification permits 230 V operation (SCM800) or 120 V operation (SCM800E) Front-panel headphones output with level control Peak-responding output limiter with selectable thresholds and LED indicator Shure SCM800 Specifications: Frequency Response :50 Hz to 20 kHz +/- 2 dB; -3 dB corner at 25 Hz Phantom power required?:4 6 Vdc open-circuit through 6.8 kilohm series resistance per DIN 45 596 Made in China.
