Sonodyne PM 50 Professional Studio Reference Monitor Speaker

4 Reviews
| Ask a question
SKU : SND-PM50
Sold out
Rs. 18,250
Rs. 12,285

   Free Delivery available on this product.

Buy Bajaao Premium Warranty- With Accidental Damage Cover & Free Pickup and Return T&C
Seen It For Less? Learn More
Overview
The PM is our newest range of professional active loudspeakers for the producing musician. In home or project studios, for tracking and for mixing, the PM 50 and 100 are ideal.
The enclosure is heavily braced double MDF panels. This renders the cabinet rigid. To add, the integrated isolation base minimises residual vibrations.
The woofer is PP, and the tweeter is silk, both ferro fluid cooled.
The biamplifier is Sonodyne Class AB design providing 45 W + 45 W for the PM 50 and 80 W + 50 W for the PM 100.
On board controls include HF, LF trims and bass roll-off. Gain trim control of -6 dB to +6 dB is also present. For loud and clear reproduction at an exceptional value, the PM Series is an unbeatable option.





Highlights
  • Highly braced MDF enclosure
  • Class AB: Biamplifier
  • 5.25 " woofer with 1" tweeter
  • High, Low Shelving EQs
  • Excellent detailing and dynamics

Specifications
  • DESCRIPTION: Biamplified Studio Monitor
  • ENCLOSURE: Heavily braced MDF, vented
  • TRANSDUCER COMPLEMENTS: HF: Neodymium magnet 1" silk dome tweeter
  • TRANSDUCER COMPLEMENTS: LF: 1 x 5.25" injected PP cone wooder
  • AMPLIFIER TYPE: Class AB
  • AMPLIFIER POWER BEFORE CLIPPING: LF: 45 W, HF: 45 W
  • AMPLIFIER THD AT RATED POWER: < 0.04%
  • MAX SPL @ 1M: 104 dB
  • OVERALL FREQUENCY RESPONSE (+/-2 dB): 75 Hz ~ 20 kHz
  • USABLE FREQUENCY RANGE (-10 dB): 65 Hz ~ 22 kHz
  • CROSSOVER FREQUENCY: 2.5 kHz
  • CMRR: > 65 dB
  • INPUT LEVEL FOR 90 dB SPL @ 1M: 0 dBu

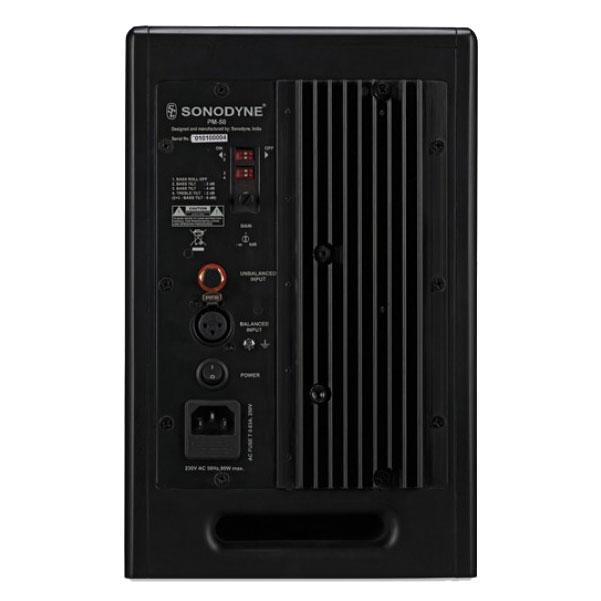

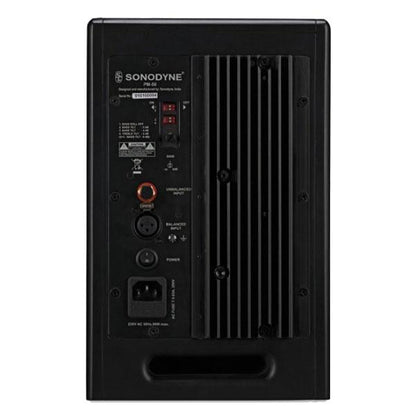

  • CONTROLS - REAR: Power, Volume, EQs
  • PROTECTION: Overcurrent, Overheat, RFI,
  • INDICATOR: Power On / Off
  • GAIN CONTROL RANGE: - 70 dB to +6 dB
  • HIGH SHELVING EQ: -2 dB @ 15 kHz
  • LOW SHELVING EQ: -2, -4, -6 dB @ 80 Hz
  • BASS ROLL-OFF: 80 Hz, 6 dB / oct
  • SIGNAL TO NOISE RATIO (AT UNITY GAIN): > 90 dB (at full output)
  • INPUT IMPEDANCE: 22 kOhm
  • FINISH: Durable matt black paint
  • COLOURS: Black
  • DIMENSIONS (HxWxD) mm: 306 x 194 x 235
  • POWER CONSUMPTION: 100 VA Max
  • POWER REQUIREMENT: Two versions: 230 V AC and 120 V AC, +/- 10%
  • NET WEIGHT: 6.3 kg
