Soundcraft Compact 10 Mixer

Shop Brand : Soundcraft
Shop All: Analog Mixers

Buy Soundcraft Compact 10 Mixer online in India at the best price with free shipping from BAJAAO - India's music equipment superstore.

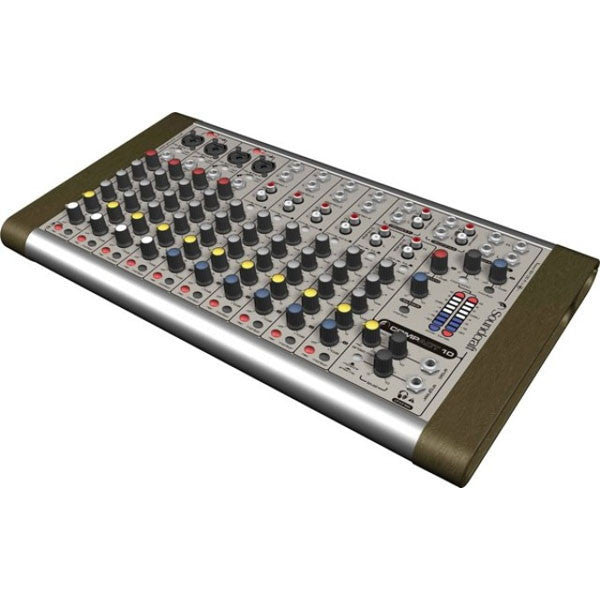

Soundcraft Compact 10 Mixer.

The Soundcraft COMPACT 10 Mixer is perfectly suited to many applications requiring simple mix facilities, but it really comes into its own during computer-based recording. It's simple to route an input straight to the record output simply by selecting the Record button on the channel. The COMPACT 10 Mixing Console is equipped with 4 mic inputs with high-quality mic preamps and phantom power plus line inputs, and a DI input for instruments, plus stereo inputs for keyboards, CD/tape, or turntables (with RIAA equalization). The DI input matches the input impedance of the Soundcraft mixer to the output impedance of the instrument, ensuring optimum pro-quality audio capture. Zero-latency monitoring while recording is enhanced with a blend control that lets you balance playback with the track being recorded for ideal headphone output for artists and engineers.

Soundcraft Compact 10 Features:

  • 10 channels
  • XLR and 1/4" jack inputs
  • High-quality Class A mic preamps
  • 3-band EQ on all input channels
  • Insert points for additional processing
  • Pan and Balance controls
  • Switchable +48V phantom power and indicator
  • Direct Injection for basses, guitars, and keyboards
  • Switchable RIAA turntable equalization
  • Zero-latency monitoring
  • Failsafe recording bus prevents unwanted noise
  • Dedicated artist and engineer headphone monitoring
  • Balanced and unbalanced record and playback connectors
  • Balanced mix and monitor outputs
  • Intuitive monitoring system
  • Turntable ground stud
  • Anti-skate rubber compound feet
  • Ez-groove mounting
  • Reinforced anodized aluminium chassis.

Soundcraft Compact 10 Specifications:

  • Frequency Response Mic/Line input to any output - 20Hz-20kHz, ±0.5dB
  • THD+Noise Mic gain 30dB
  • Mix out, fader max @ 1kHz-

Input & Output Impedances

  • Mic input- 2k
  • Line input- 10k
  • Hi-Z input -300k
  • Stereo input-47k
  • Outputs-75

Input & Output Levels

  • Mic input max level- +16dBu
  • Line input max level- +30dBu
  • Stereo input max level - +20dBu
  • Headphones (@ 200) - 300mW

Power (Average power consumption - quiescent)

  • COMPACT 4 - 8W
  • COMPACT 10 - 14W
  • Temperature Minimum operating temperature - 0 degrees C, 32 degrees F
  • Maximum operating temperature- 50 degrees C, 122 degrees F
  • Dimensions COMPACT 4.
