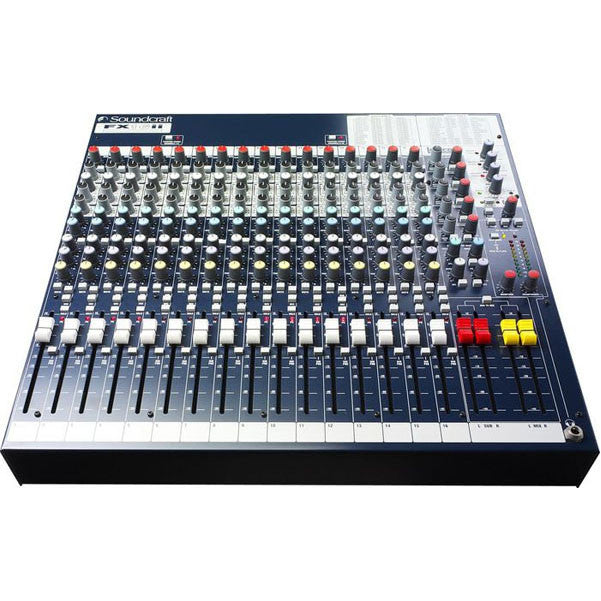

Soundcraft FX16ii Mixer

Buy Soundcraft FX16ii Mixer online in India - India's music equipment superstore Soundcraft FX16ii Mixer In 1997, Soundcraft launched the Spirit FX16 which immediately became popular with its 16 direct outputs and built-in effects unit in wide-ranging applications.

Ten years later, Soundcraft has given the FX16 an overhaul bringing it in line with the Soundcraft Professional range using the latest 24-bit, digital Lexicon effects processor and creating the Soundcraft FX16ii The Soundcraft FX16ii mixer uses the same AudioDNA processor featured in many of the Digitech and Lexicon outboard equipment including the highly respected Lexicon MX500 processor.

With over 35 years of experience, the Lexicon name is among top creators of reverb and processing equipment in the business, ensuring the finest quality effects not usually found in a console at this price level The Soundcraft FX16ii offers a combination of powerful live and recording features; each channel has a Direct Output that is individually switch-able pre- or post-fader to enable use with 16-track recording systems.

The Lexicon effects work just as well in the live as well as the recording environment with a tap tempo function, 3 parameter controls, user effects settings storability, effects clip LED, and 32 powerful and editable effects to choose from The use of the latest PCB surface-mount technology means that the Soundcraft FX16ii fits all of these features into a rugged, compact frame which can be optionally rack-mounted into a 10U space via Soundcraft FX16ii's rotating connector pod which allows cables to be connected conveniently behind the rack and save rack space.

Applications: Live Sound: bands, small venues, clubs, conferences, schools, houses of worship Studio Recording : digital/analogue multi-tracking (8 or 16 track), small/home studios, pre-/post-production Soundcraft FX16ii MixerŒæFeatures: 26 inputs 16 mono microphone channels 4 stereo returns 4-bus architecture, with sub-group routable to mix Built-in 24-bit Lexicon digital effects processor 32 FX settings Tap tempo 3 FX parameter adjust rotaries User FX settings store function Direct outputs for multi-track recording individually switch-able for pre-post-fade operation Inserts on all mono channels Inserts on stereo mix output Classic Soundcraft 3-band EQ with swept mid-band Stereo 18dB/octave 100Hz high-pass filter Dual-global +48V phantom power split channels 1-8 and 9-16 Channel mute control 10-segment tri-colored metering Two sub-group outputs Separate mono sum output Integral universal power supply Soundcraft FX16ii Mixer Specifications: Frequency Response Mic/line Input to any Output: +/-1dB, 20Hz äóî 20kHz T.H.D.

Mic Sensitivity -30dBu,+14dBu @ Mix output: Noise Mic Input E.I.N (maximum gain): -127dBu (150 Ohms source) Aux, Mix, and Masters (@ 0dB,faders down): Crosstalk (@ 1kHz) Channel Mute: > 96dB Fader Cut-off (rel +10 mark): > 90dB Aux Send Pots Offness: > 86dB EQ (Mono inputs) HF: 12kHz,+/-15dB, MF: (swept): 150Hz äóî 3.5kHz,+/-15dB LF: 80Hz,+/-15dB Q: 1.5 Power Consumption: Less than 40W Operating Conditions: Temperature Range 5ŒÁC to 30ŒÁC Input and Output Specs Input & Output Levels Mic Input: +15dBu max.

Line Input: +30dBu max Stereo Input: +30dBu max.

Mix Output: +20dBu max Headphones (@150 Ohms): 300mW Input & Output Impedances Mic Input: 2k Ohms Line Input: 10k Ohms Stereo Input: 65k Ohms (stereo), 35k Ohms (mono) Outputs: 150 Ohms (balanced), 75 Ohms (unbalanced) Dimensions & Weight Height: 5.8" Width w\n Width wn \n Width wn n Width without rack brackets: 17.4" Width with rack brackets: 19.0" n Depth 17.4" Weight: 19 lbs.

Made in China.
