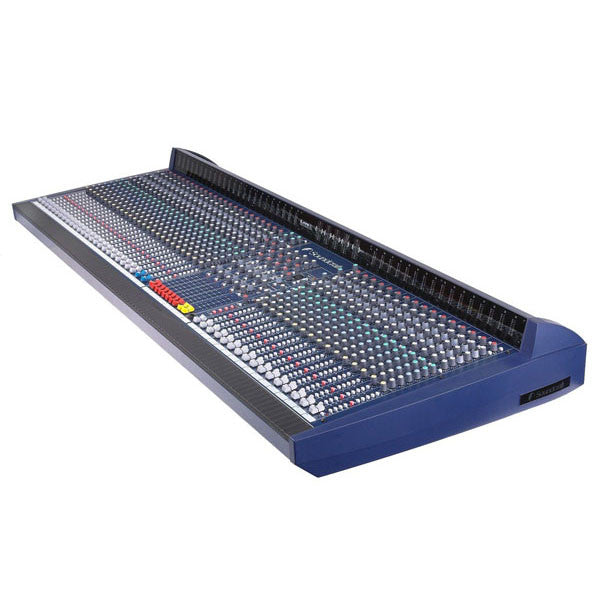

Soundcraft Live 8 32 CH

The Live 8 is the ultimate affordable live console, a full-featured 8-bus desk that combines a comprehensive range of professional control and routing facilities with cost-effective and compact design. You can choose the Live 8 in any of four frame sizes, from 24 to 40 mono channels, all featuring eight subgroups for routing sets of channels together, giving you fewer faders to ride when balancing the overall mix.


  • 8-bus live mixing
  • FOH mixing
  • Touring bands
  • Venues and theatres
  • Installations
  • Recording direct to multitrack

Soundcraft Live 8 32 CH Features:

  • 32 channels frame sizes
  • 8 group busses
  • UltraMic+™ preamp with up to 66dB gain range
  • +48V phantom power, individually switchable on each channel
  • 4-band EQ with two swept mid bands
  • 4 mute groups
  • Additional outputs on 10 x 2 matrix
  • Two stereo input channels
  • 8 stereo returns
  • Phase reverse on mono inputs
  • 18dB/octave high-pass filter
  • 6 aux sends, configurable to give up to 4 pre or post fade sends

The eight Output Groups provide submixing to the Mix L/R, either as stereo pairs or as mono sends to L & R. The Group outputs are available on separate connectors to feed external equipment directly. Each Group section incorporates matrix sends, PFL monitoring & bargraph metering. Eight external Stereo Return inputs are provided for effects or submixing from external sources and these route to Mix or to a pair of Groups.

Two Matrix outputs receive sends from each Group or Mix L & R as required.

The Master section provides master level control for the Left, Right, Matrix and Auxiliary Send buses, with separate AFL monitoring on each Matrix and Auxiliary output.

The Mix L/R and Group outputs all have insert points for the connection of external signal processing or graphic equalization.

Comprehensive Talkback facilities are provided, which allow a talkback microphone to be routed to Mix L/R, Groups and Auxes 1-2 or 3-4. Ten 12-segment, 3-color peak reading LED bargraph meters provide clear display of Mix L/R, Group and PFL signals. Pressing any PFL or AFL switch puts the selected signal onto both sides of the headphones output and the L & R bargraph meters in place of the Mix signal. Two LEDs monitor the status of the console power supply.

The construction of the Live 8 is everything you'd expect of a full-size professional live board, with individual channel circuit boards firmly bolted into a sold steel frame. The rugged steel chassis is combined with molded side trims to give protection and distinctive appearance. Custom molded controls, designed for the best `feel' and visual clarity complement the styling, resulting in a truly professional product which is ideal for both touring and fixed PA installations.
