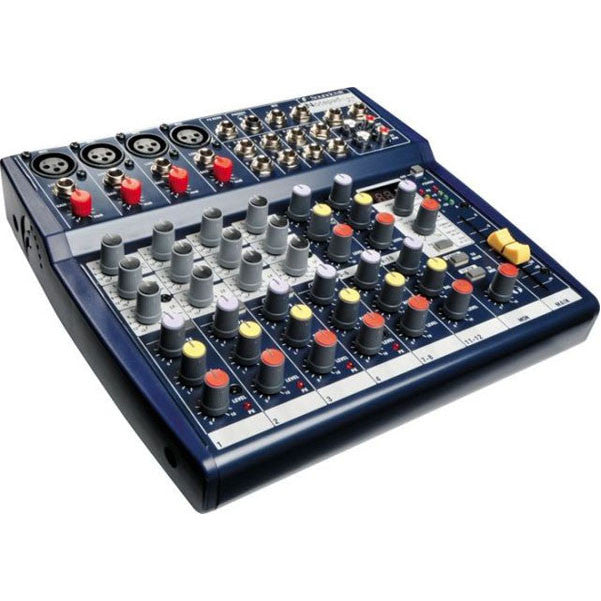

    Soundcraft Notepad 124FX Mixer with Effects.

    The Soundcraft Notepad 124FX mixer boasts Soundcraft audio performance with the acclaimed GB30 mic preamp and EQ technology in a highly-compact and solid chassis.

    The 124 FX has 4 mono mic/line inputs. It also boasts 4 stereo line inputs, and suits a very wide range of applications where simple yet high-quality mixing is required, such as in home recording, small band/cabaret PA systems, AV presentation systems, small broadcast edit suites, educational environments and general contracting.

    The Notepad 124FX also has an integral digital effects processor which has a feed from every input and over 100 effects, including a pink noise and test setting. The FX control can also be used to set delay tap tempo, a feature not found in many mixers in this class.

    Other highly-desirable functions include a high-pass filter on the mono inputs, a 60mm fader for the mix output selectable sensitivity of +4dBu or 1-dBv on each stereo input (Notepad 124 models only) and multi-segment led metering on the mix output along with a headphone monitoring output.

    Soundcraft Notepad 124FX Mixer Features:

    • Analog mixer
    • 4 mic inputs with GB30 mic preamps:
    • 4 stereo line channels for keyboards, MP3 player, etc.
    • Switchable +4dBu/-10dBV on stereo inputs
    • Classic sounding Soundcraft GB30 3-band British EQ
    • 100Hz high-pass filter on each mic input
    • Over 100 powerful built-in digital effects
    • +48V phantom power (global)
    • 1 Aux/FX Sends
    • 1 Return
    • L/R main Bus Outs.

    Soundcraft Notepad 124FX Mixer Specifications:

    • Frequency Response Mic / Line Input to any Output: +1/-1.5dB, 20Hz – 20kHz
    • T.H.D. Mic Sensitivity -30dBu, +10dBu @ Mix output:


    • Mic Input E.I.N. (maximum gain): -128.5dBm (150 ohm source)
    • Aux, Mix and Masters (@ 0dB, at unity)

    Crosstalk (@ 1kHz)

    • Channel Faders: > 87dB
    • Master Faders: > 100dB
    • CMRR (@ 1kHz) Master Faders: > 90dB


    • High Pass Filter: 100Hz @ 12dB/Octave
    • HF: 12kHz, ±15dB,
    • MF: 1kHz, ±15dB
    • LF: 80Hz, ±15dB
    • Q: 0.7
    • Power Consumption: Less than 40W
    • Operating Conditions Temperature Range: 5°C to 40°C.

    Input & Output Levels

    • Mic Input: +10dBu max.
    • Line Input: +22dBu max.
    • Stereo Input: +20dBu max.
    • Mix Output: +25dBu max.
    • Headphones (@32 ohm): 300mW

    Input & Output Impedances

    • Mic Input: 2k ohm
    • Line Input: 18k ohm
    • Stereo Input: 20k ohm
    • Outputs: 150 ohm
    • Dimensions (WxHxD):242mm (9-1/2") 45mm (1-13/16") 220mm (8-11/16")
    • Weight: 3.5 lb. (1.6 kg).
