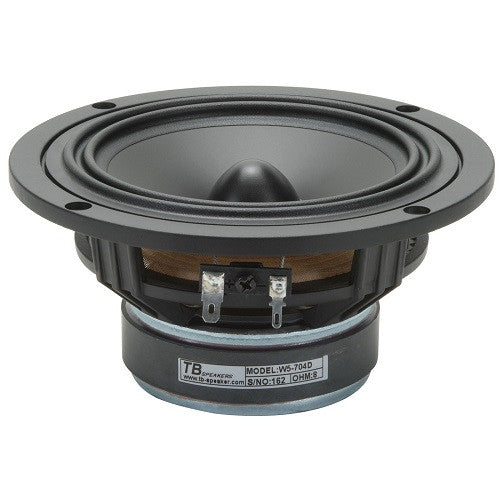

Tang Band W5-704D 5-1/4" Woofer


Shop Brand : Tang Band
Shop All: Woofers
SKU : TANGBANDW5704D

  • Tang Band W5-704D 5-1/4" Woofer

    This high-quality poly cone woofer has several unique features including a twin-roll rubber surround, durable aramid spider, and cast aluminum frame. The lightweight poly cone and phasing dustcap provide a smooth frequency response.

    Tang Band Woofer Highlights:

    • Twin-roll rubber surround
    • Durable aramid spider
    • Cast aluminum frame

    This high-quality poly cone woofer has several unique features including a twin-roll rubber surround, durable aramid spider, and cast aluminum frame. The lightweight poly cone and phasing dustcap provide a smooth frequency response. Great for compact vented two-way designs.

    Tang Band Woofer Specifications

    • Nominal Diameter : 5-1/4"
    • Power Handling (RMS) : 28 Watts
    • Power Handling (max) : 56 Watts
    • Impedance : 8 ohms
    • Frequency Response : 55 to 9,000 Hz
    • Sensitivity : 88 dB 1W/1m
    • Voice Coil Diameter : 1"

    Thiele-Small Parameters

    • Resonant Frequency (Fs) : 55 Hz
    • DC Resistance (Re) : 6 ohms
    • Voice Coil Inductance (Le) : 0.06 mH
    • Mechanical Q (Qms) : 2.07
    • Electromagnetic Q (Qes) : 0.46
    • Total Q (Qts) : 0.38
    • Compliance Equivalent Volume (Vas) : 0.41 ft.³
    • Mechanical Compliance of Suspension (Cms) : 0.92 mm/N
    • BL Product (BL) : 6.17 Tm
    • Diaphragm Mass Inc. Airload (Mms) : 7.98g
    • Maximum Linear Excursion (Xmax) : 3.3 mm
    • Surface Area of Cone (Sd) : 94 cm²

    Materials of Construction

    • Cone Material : Poly
    • Surround Material : Rubber
    • Basket / Frame Material : Cast Aluminum
    • Magnet Material : Ferrite

    Mounting Information

    • Overall Outside Diameter : 6.16"
    • Baffle Cutout Diameter : 4.875"
    • Depth : 2.75"
    • # Mounting Holes : 4

    Optimum Cabinet Size (determined using BassBox 6 Pro High Fidelity suggestion)

    • Sealed Volume : 0.1 ft.³
    • Sealed F : 3127 Hz
    • Vented Volume : 0.27 ft.³
    • Vented F : 373 Hz.
