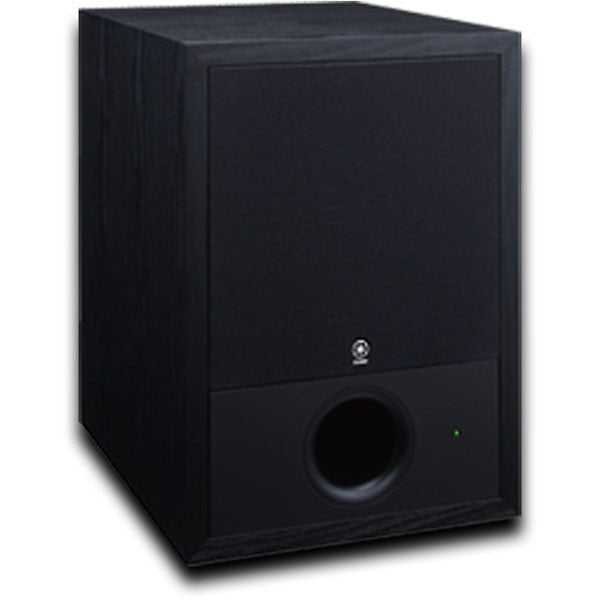

The SW10 STUDIO from Yamaha is a high-quality subwoofer designed to be a perfect match to the MSP-series active studio monitors. When combined as part of a stereo or surround monitoring system, the SW10 studio offers excellent low frequency support, thanks to the 10" long-throw cone and 180W of amplifier power.
The bass-reflex style enclosure is constructed from medium-density fiberboard for an extended bass response that goes all the way down to 25Hz. Three XLR input and output connectors are provided for wide compatibility. Rear-panel controls include a phase switch, and continuous high-cut and level controls, which allow you to set the subwoofer for optimal performance with your system and in your space.
Yamaha SW10 Features:
Designed to match the MSP-series active monitors
Large 10" front-firing cone
180W of output power
MDF bass-reflex enclosure
Magnetically shielded for safe use near video monitors
XLR I/O connectors
Controls include a phase switch, and continuous high-cut and level controls.
Yamaha SW10 Specifications:
Driver: 10" (254mm)
Frequency Range: 25-150Hz (-10dB)
Maximum Sound Pressure Level (SPL): 111dB @ 1m
Connectors: 3 x XLR Inputs, 3 x XLR Outputs
Input Impedance: 10 kOhms
Controls and Indicators: 1 x Phase Control, 1 x High-Cut Filter, 1 x Level Control, 1 x Power Switch, 1 x Green/Red Power/Clip LED
Shielded: Yes (Non-Covered Type)
Dimensions (HxWxD): 18.1 x 12.9 x 18.7" (459 x 328 x 476mm)
