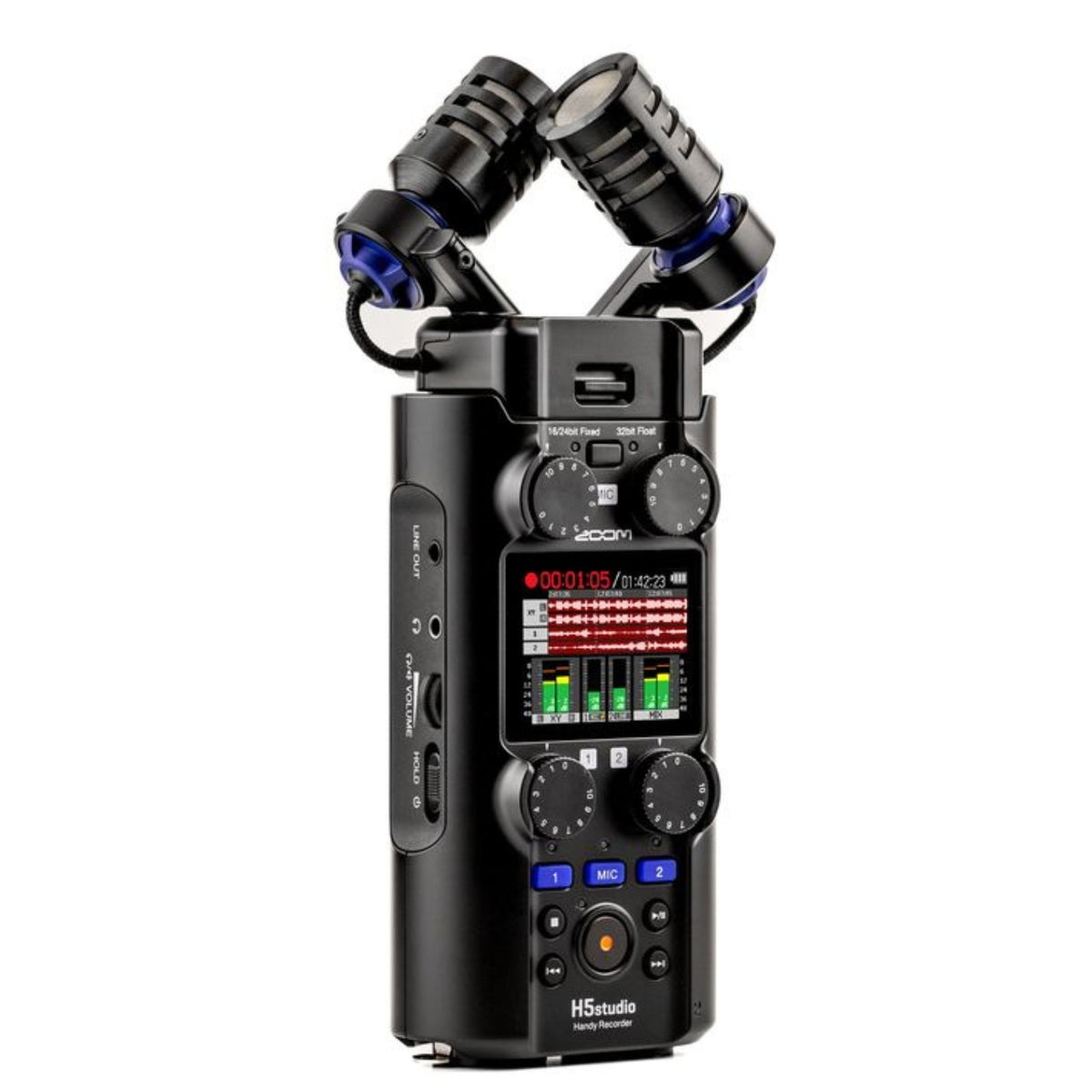

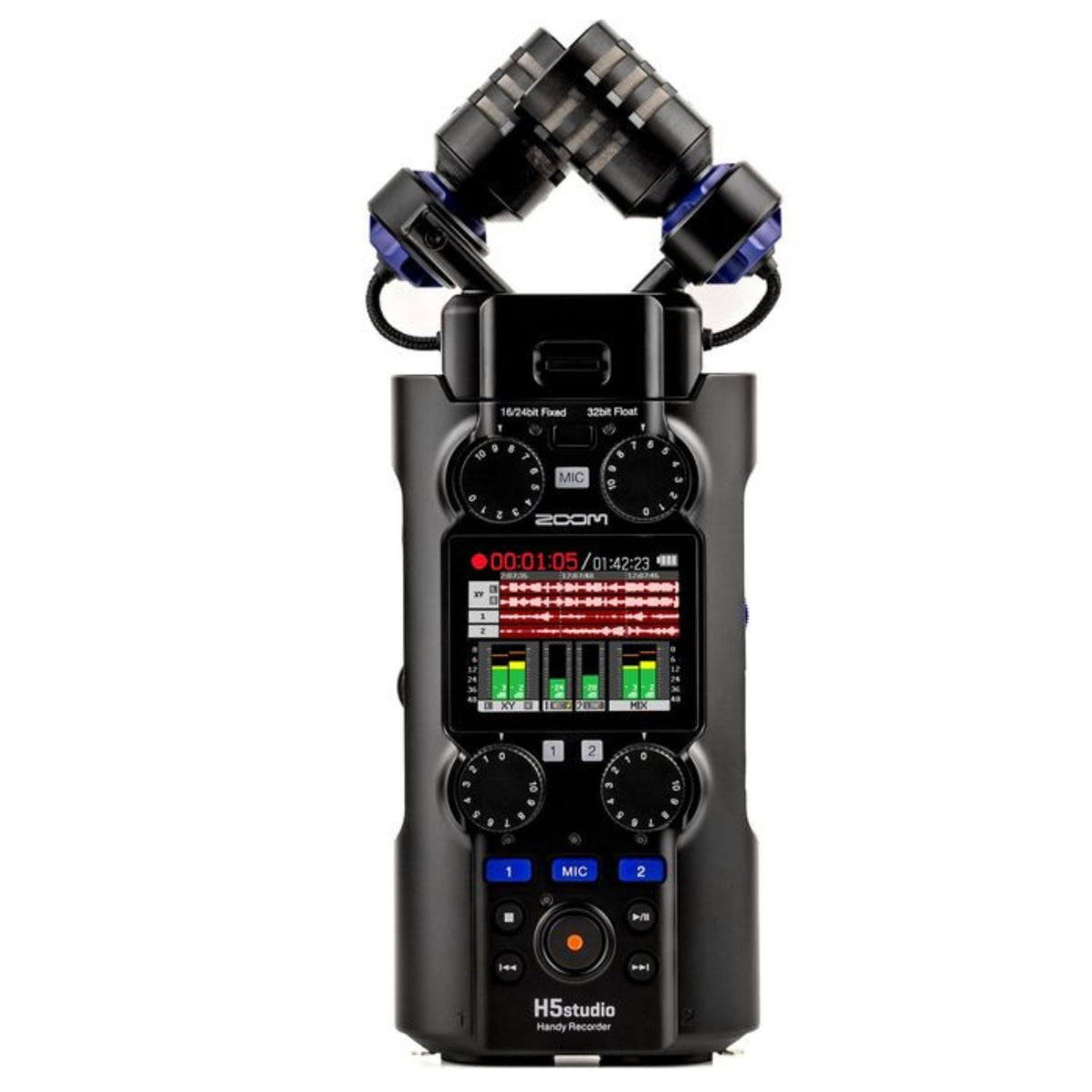

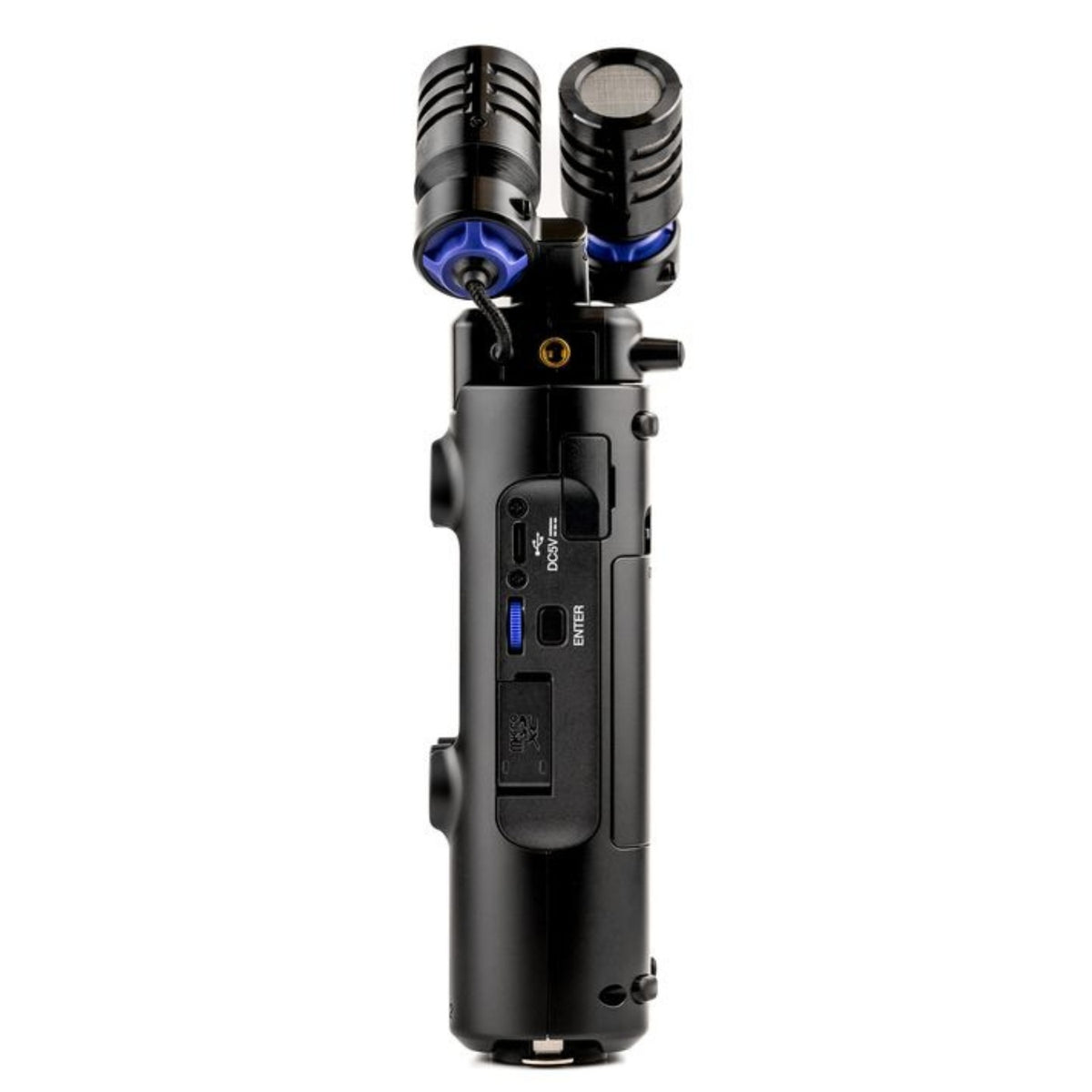

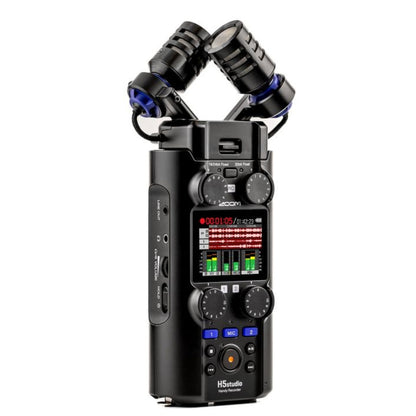

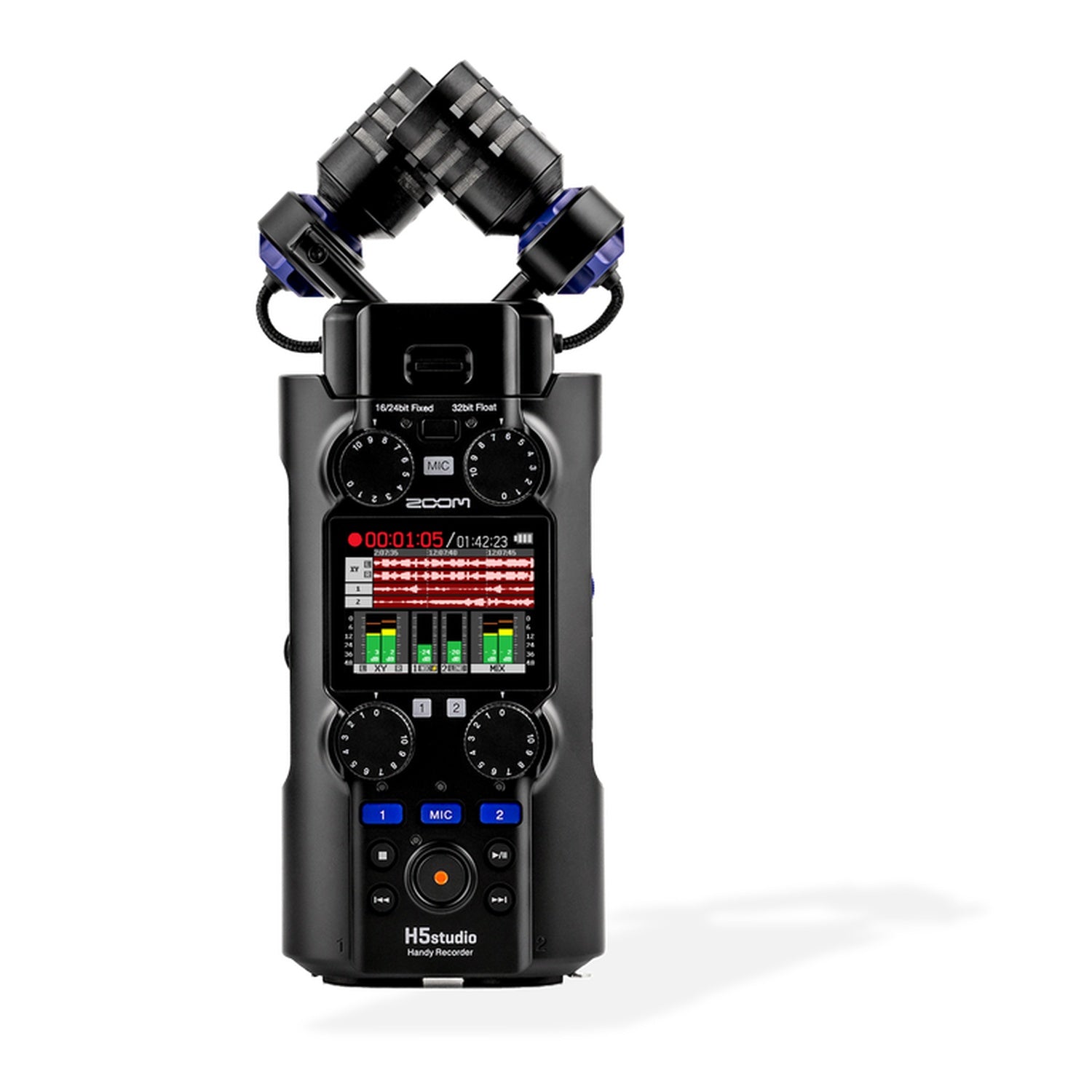

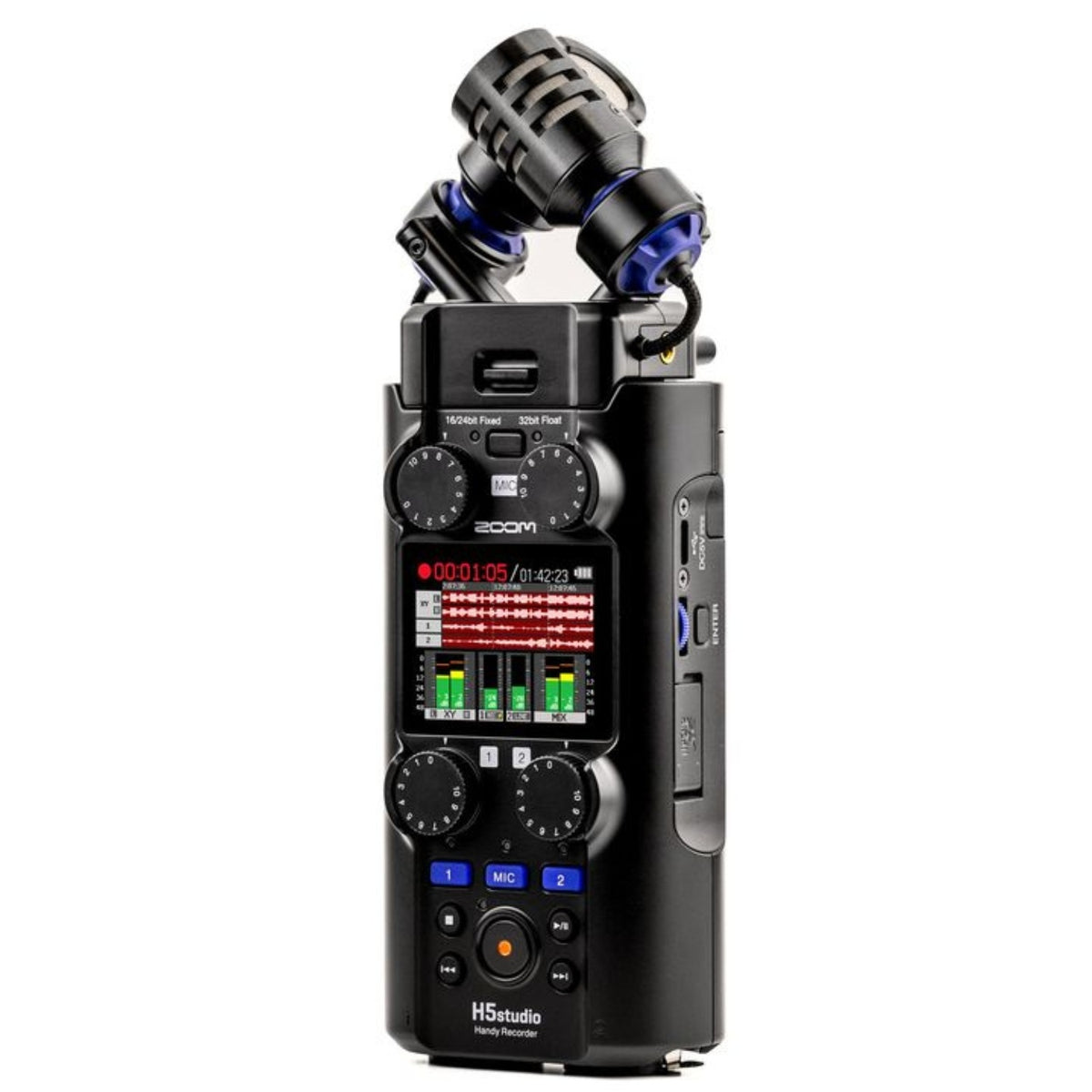

Zoom H5studio Handy Recorder

Your Best Work Starts Here The H5studio was made for seamless and professional production. Creators can record flawless audio with stunningly clear microphones, studio-grade preamps, and 32-bit float recording.

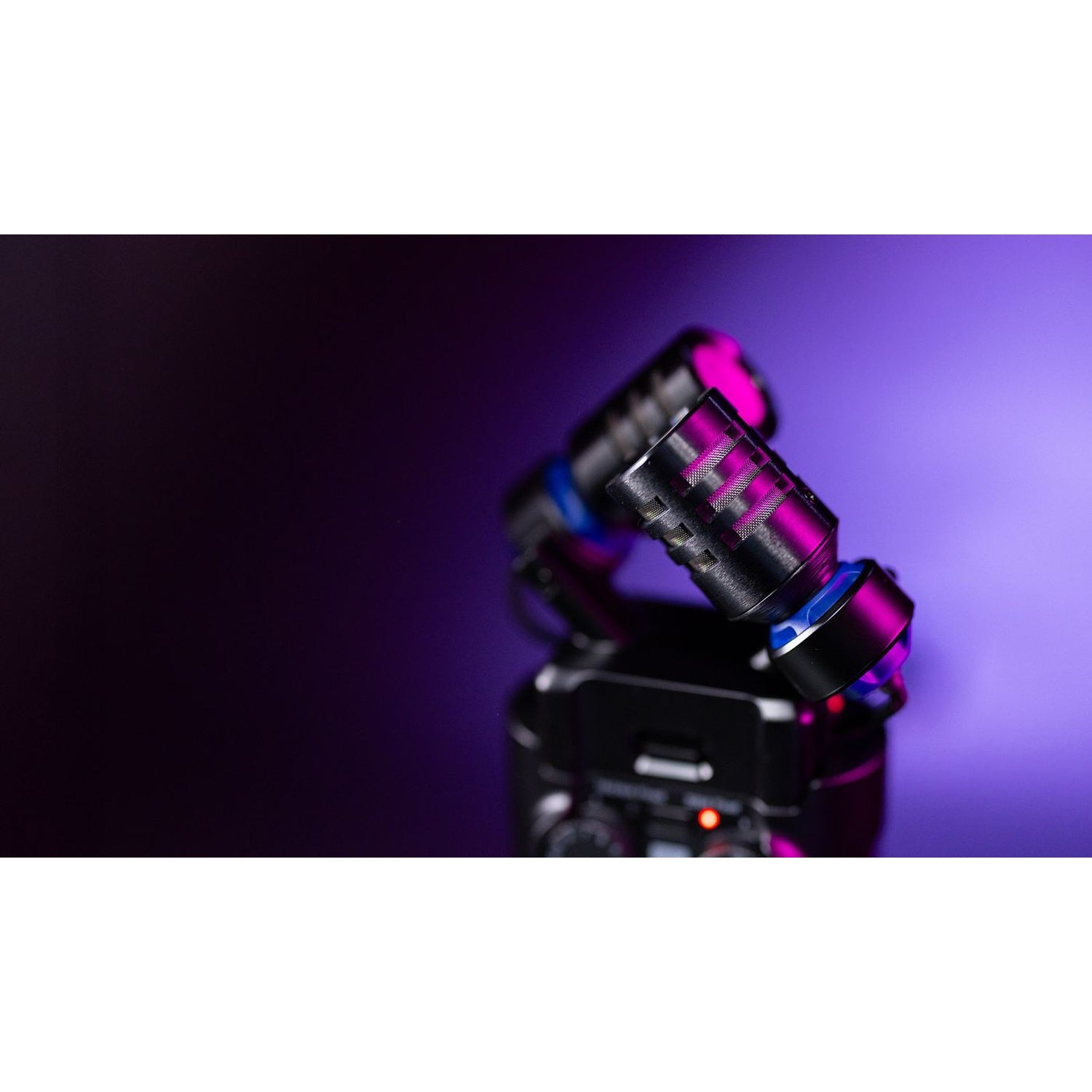

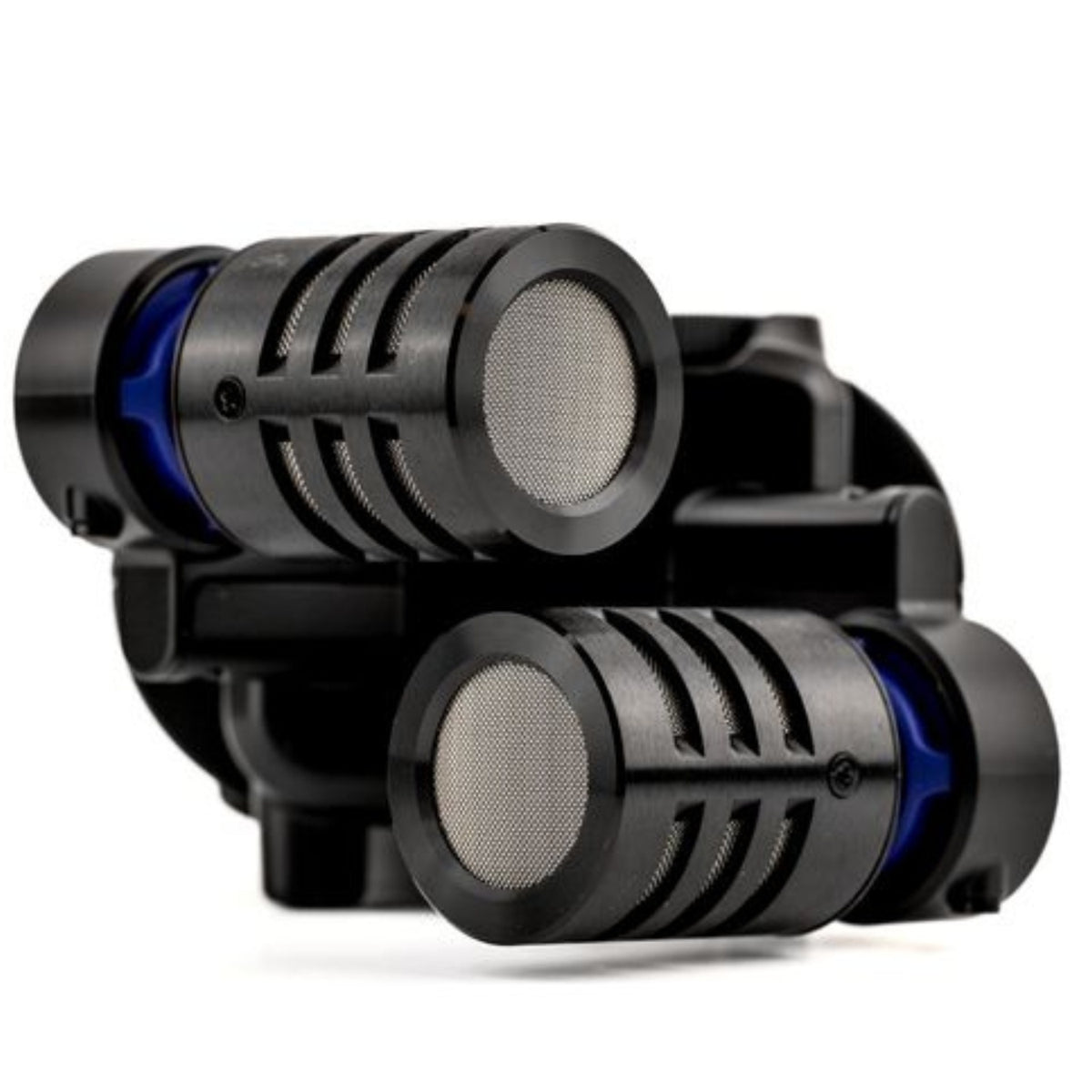

The Largest Mics Ever on a Handy Recorder The 19.4mm microphones capture audio with incredible frequency response, 140 dB max SPL, and an expansive dynamic range. Their increased size captures recordings with unmatched depth and fidelity.

F-Series Preamps, Now in Your Hands The H5studio's inputs feature our F-series preamps, giving your audio unmatched clarity (-127 dBu EIN). With dual AD converters and 32-bit float, they deliver an impressive 132dB dynamic range, capturing everything without noise or distortion.

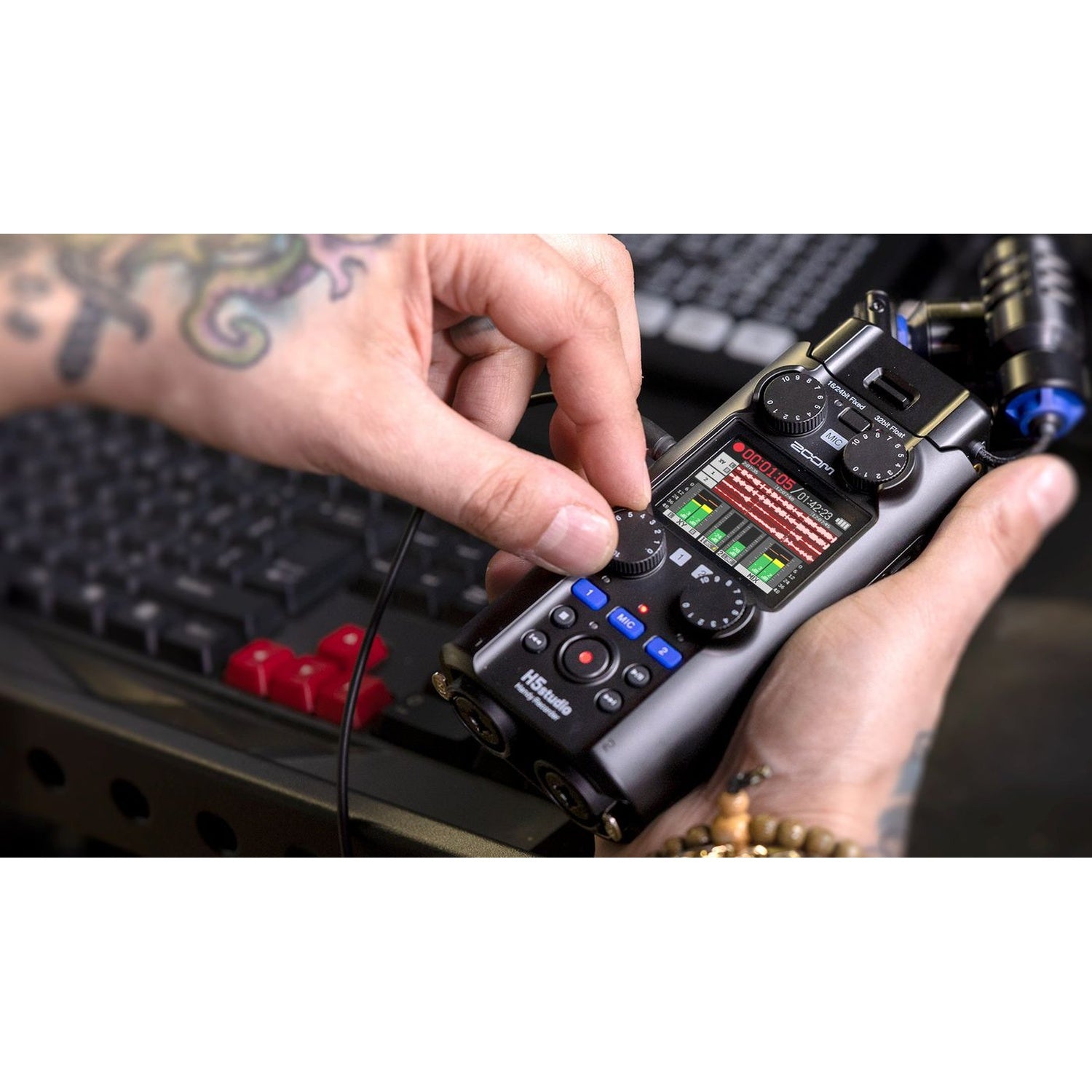

Complete Control, Zero Clipping 32-bit float and 16/24-bit formats each have their advantages. 32-bit float prevents clipping but requires post-production. 16/24-bit eliminates the need for post-processing but requires gain adjustment to prevent clipping. The H5studio offers the best of both worlds with 32-bit float and dedicated gain knobs—no clipping and no need for post-production.

4 Tracks + Stereo Mix Record with sample rates from 44.1 to 192 kHz. The H5studio can capture up to 6 tracks* at once - 4 individual tracks plus a stereo mix. *Stereo mix only available at 96 kHZ

Protect Your Sound Carefully engineered RF shielding keeps interference from smartphones and Wi-Fi routers out of your recordings, anywhere you go.

Advanced Limiters The H5studio features “advanced look-ahead” limiters which anticipate potential overloads and prevent distortion before it reaches your track.

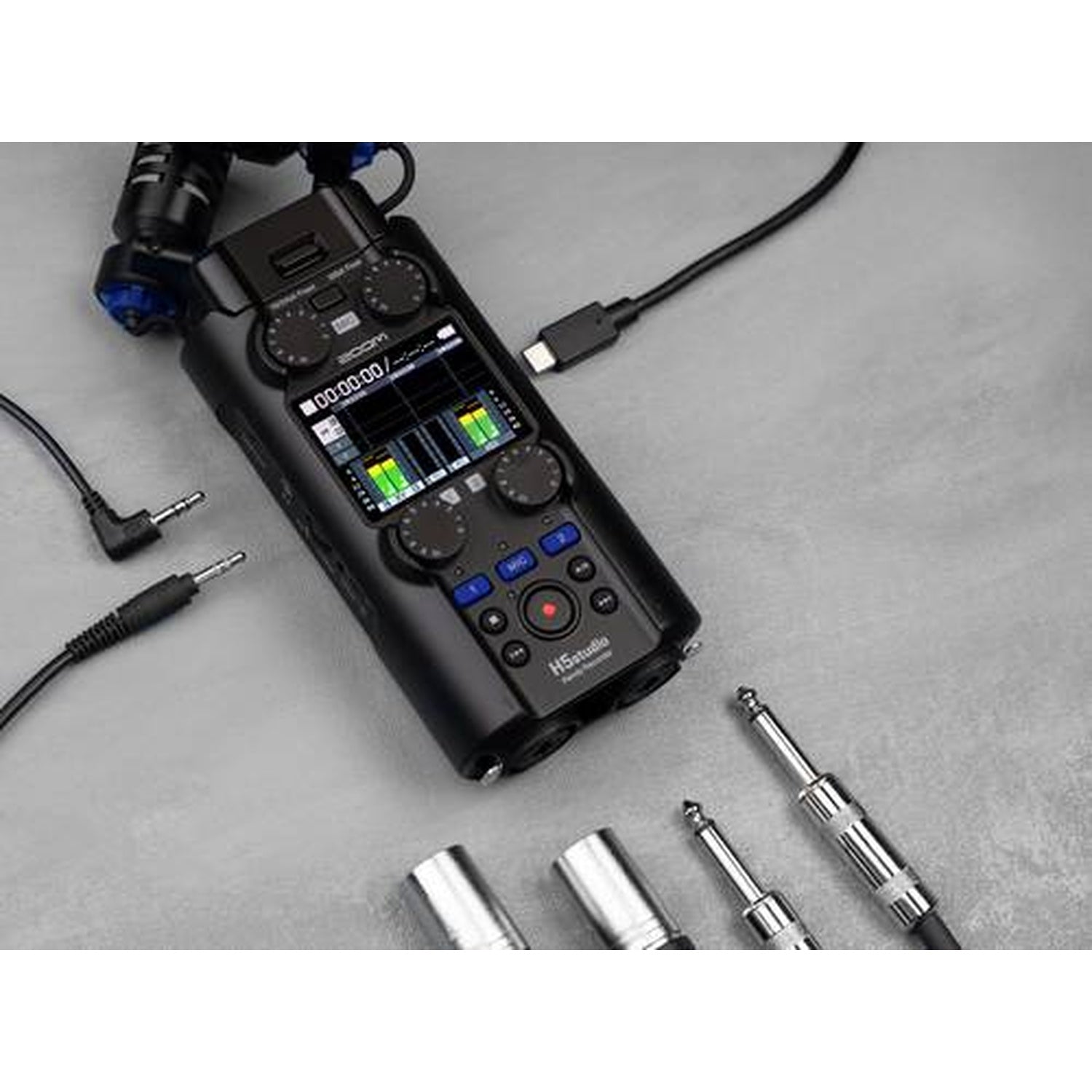

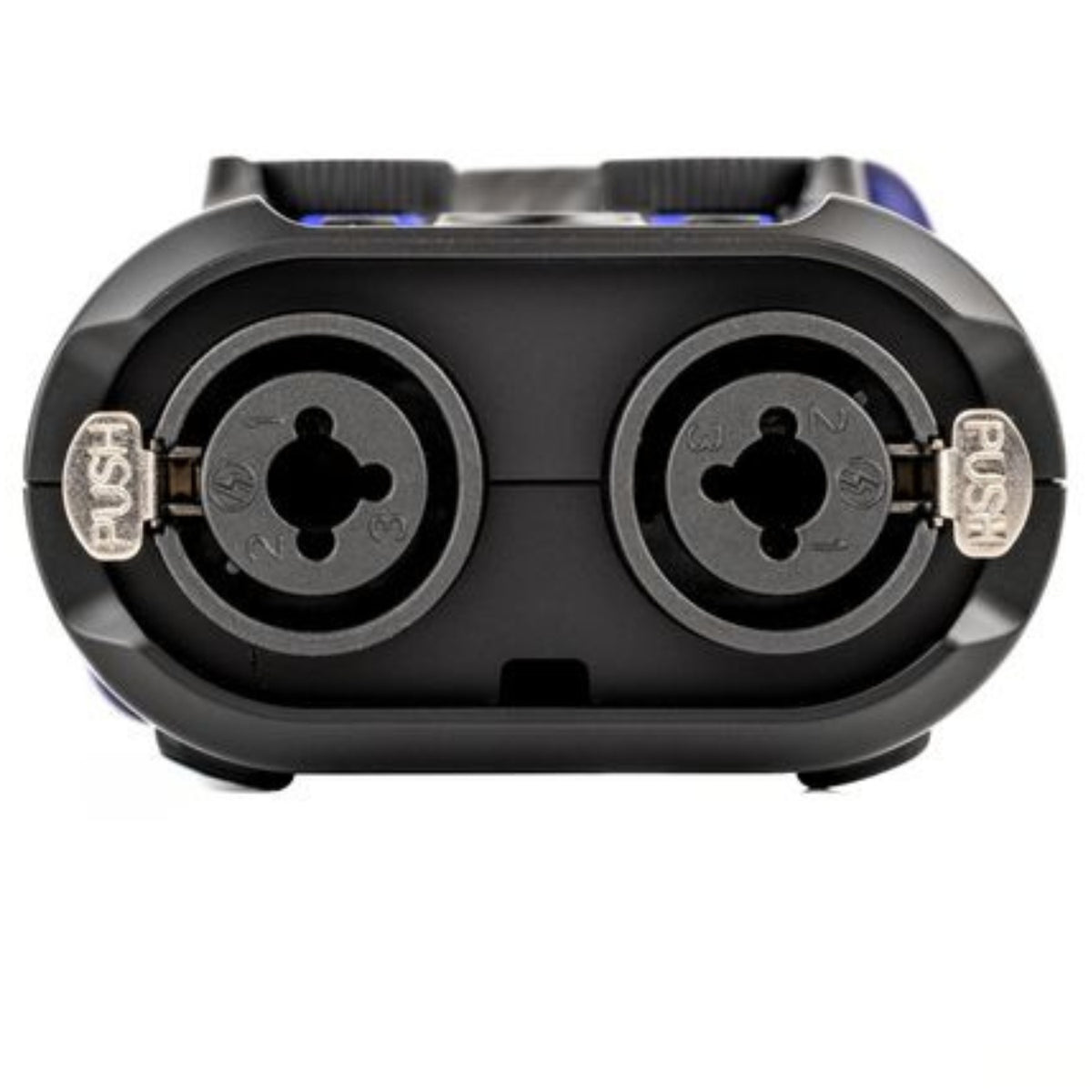

The Inputs The two locking XLR/TRS inputs support +48V phantom power and +4dBu line level. There is also a 3.5mm stereo jack with plug-in power.

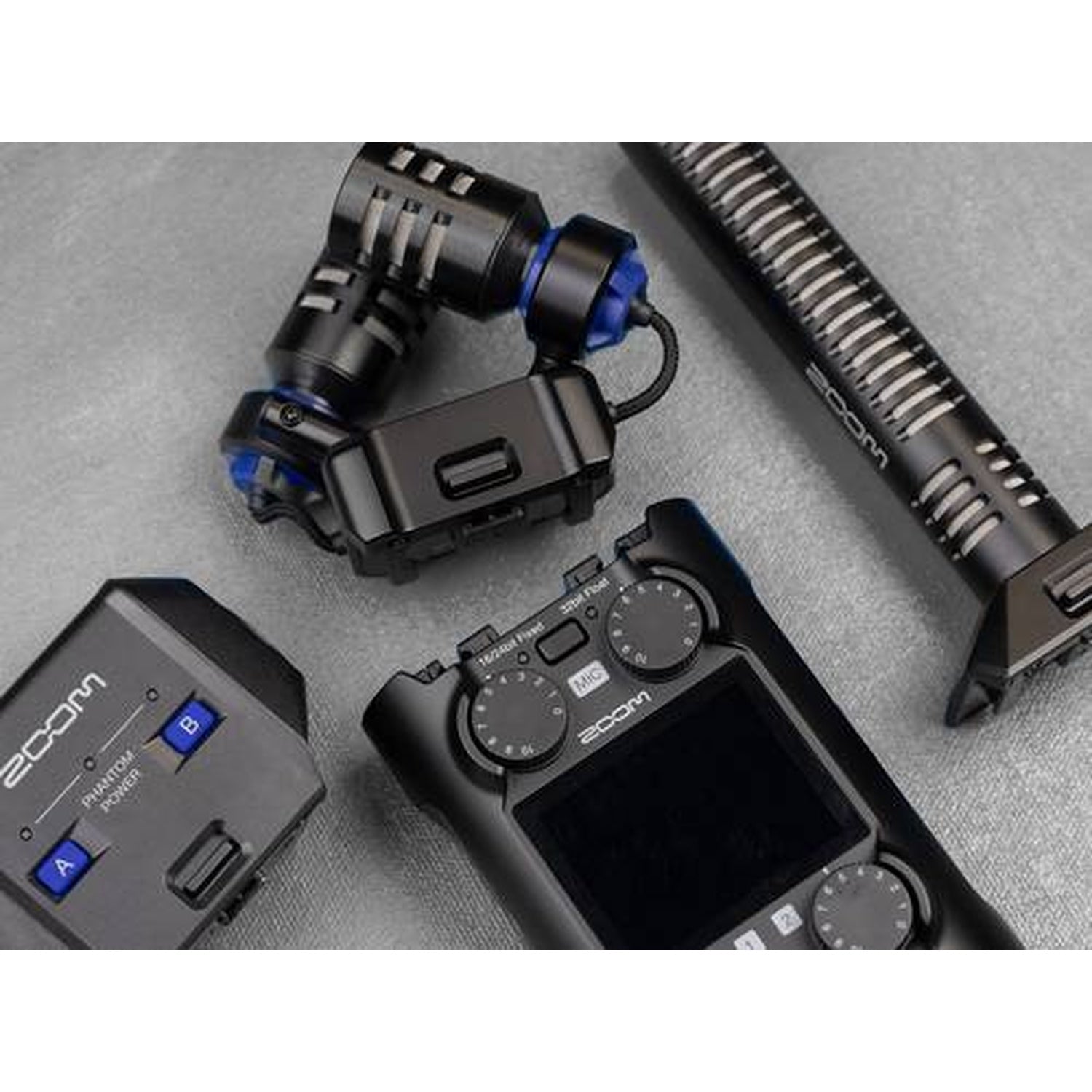

Next Generation Capsule System The H5studio’s 3.0 capsule system* supports 32-bit float and gives creators more options to use the right mic for their recording. *Compatible with SSH-6e, EXH-6e, XYH-6e

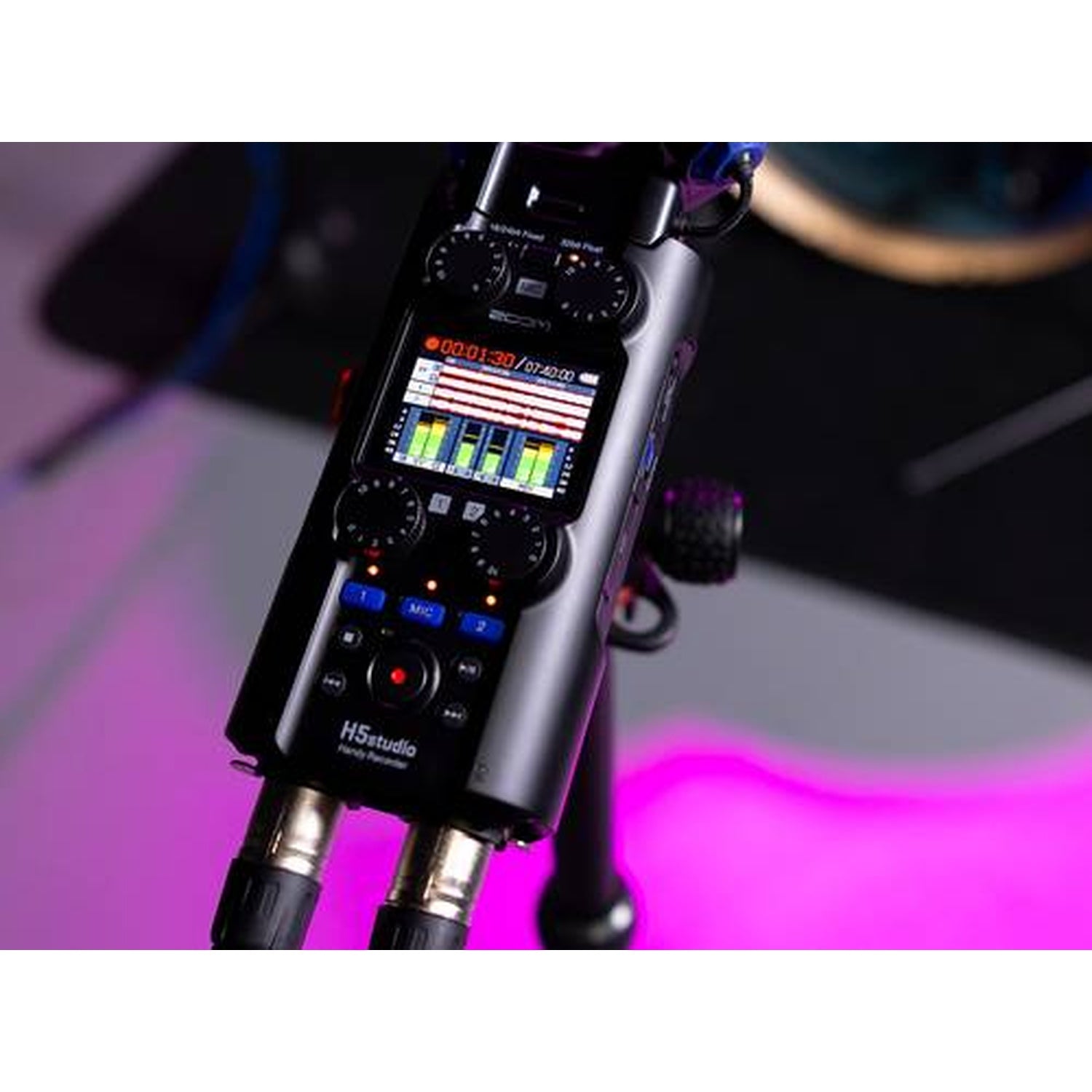

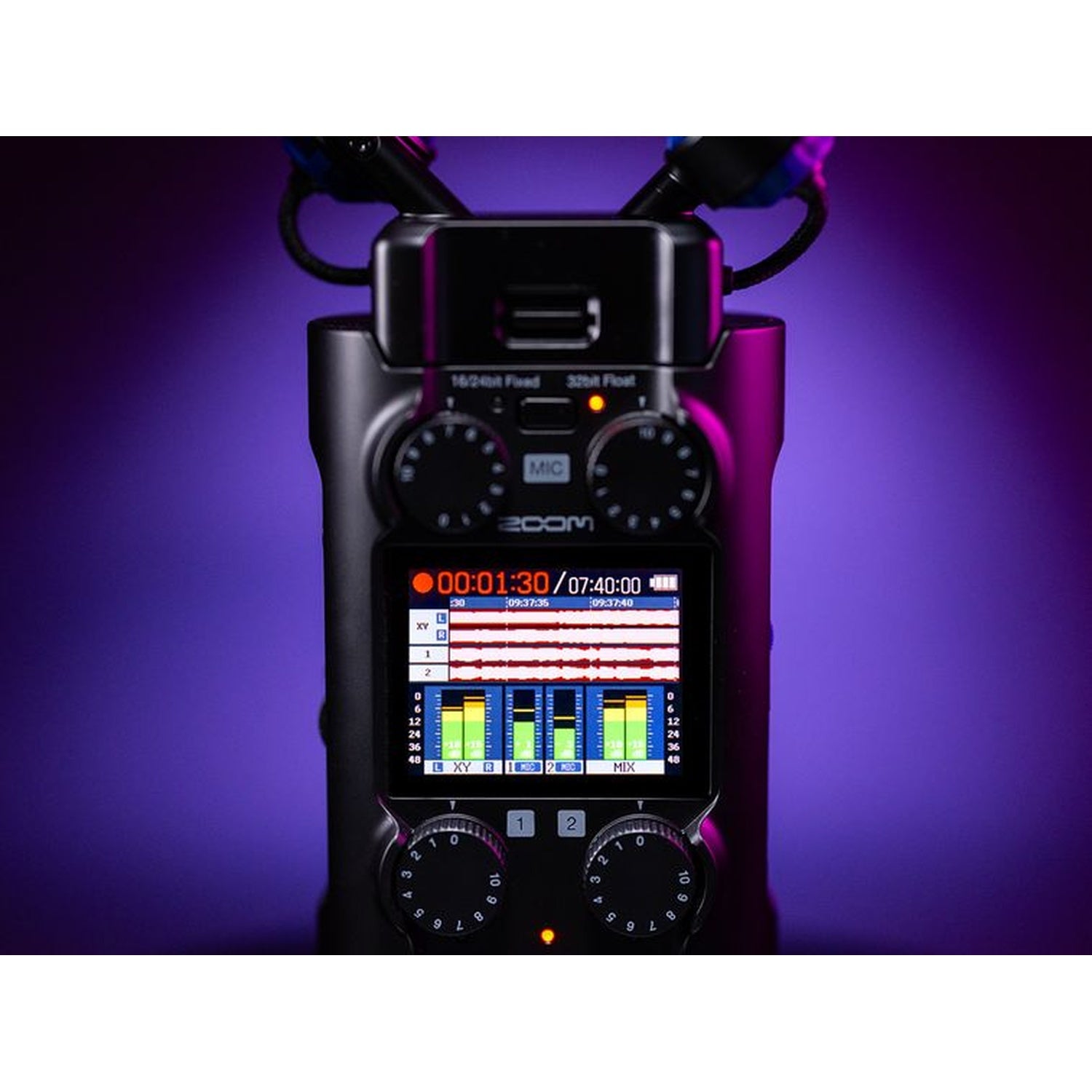

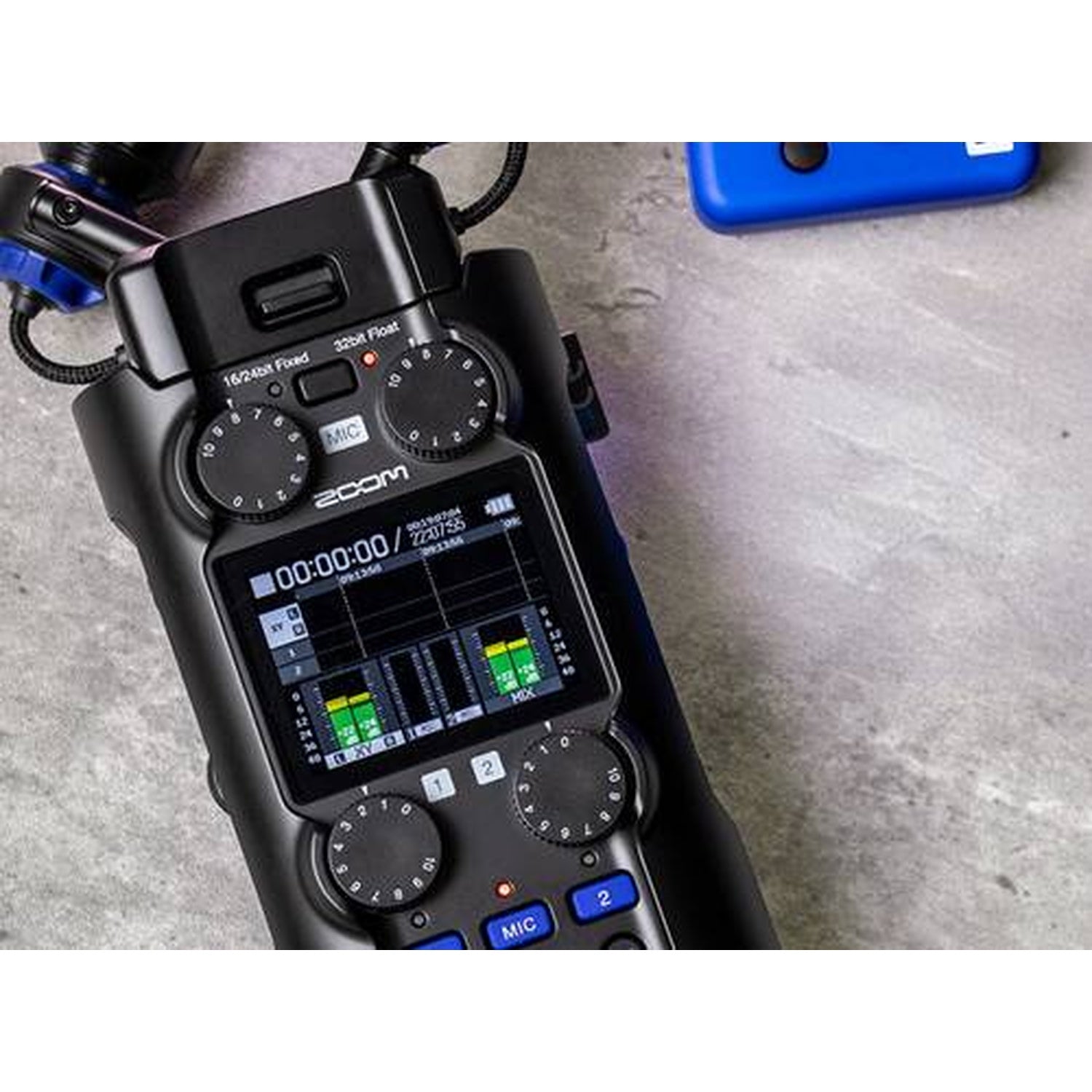

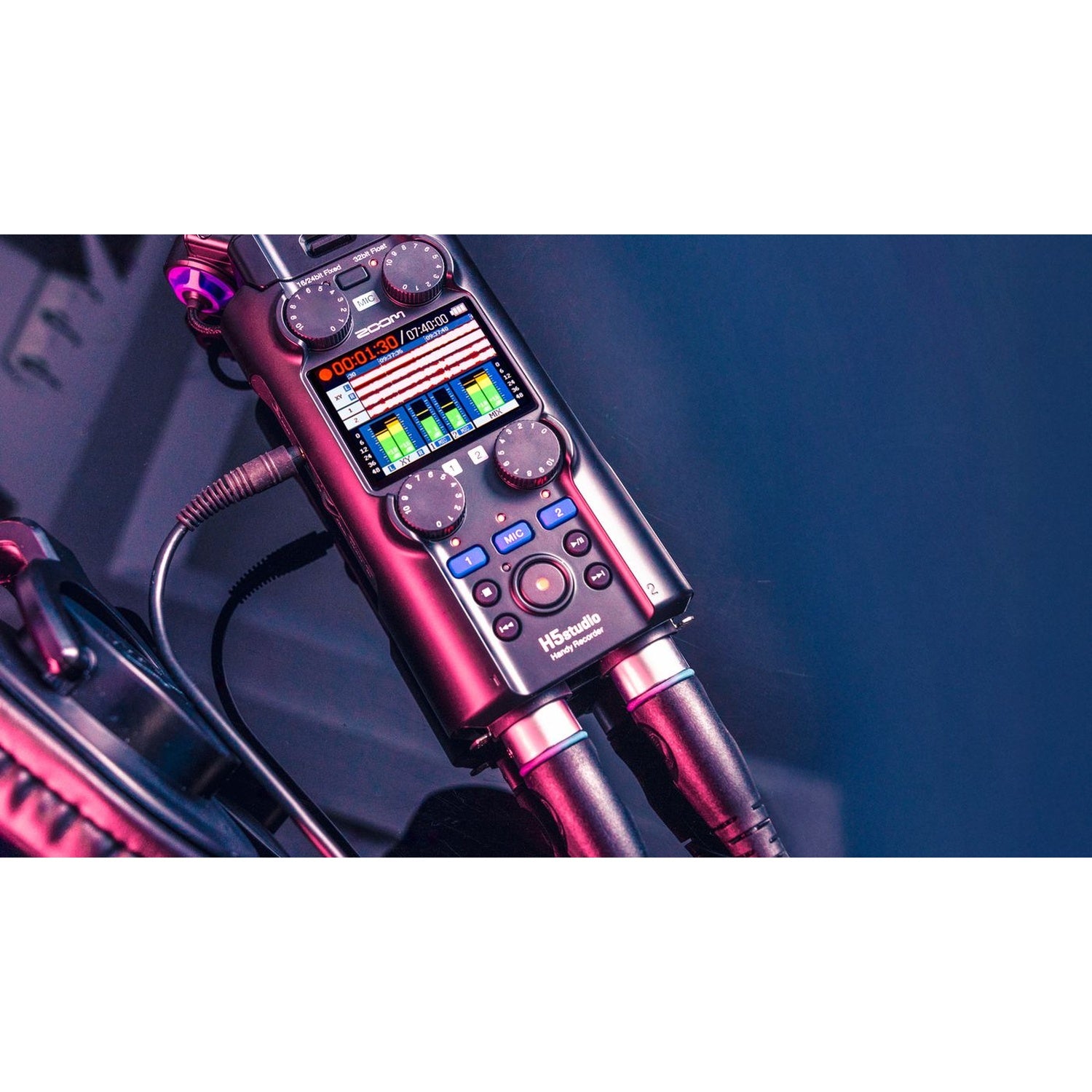

Waveforms & Levels Monitor input levels with real-time waveforms on the full color LCD.

Headphone Out Use the loud 20mW headphone output to monitor, or listen back to your recordings in any environment.

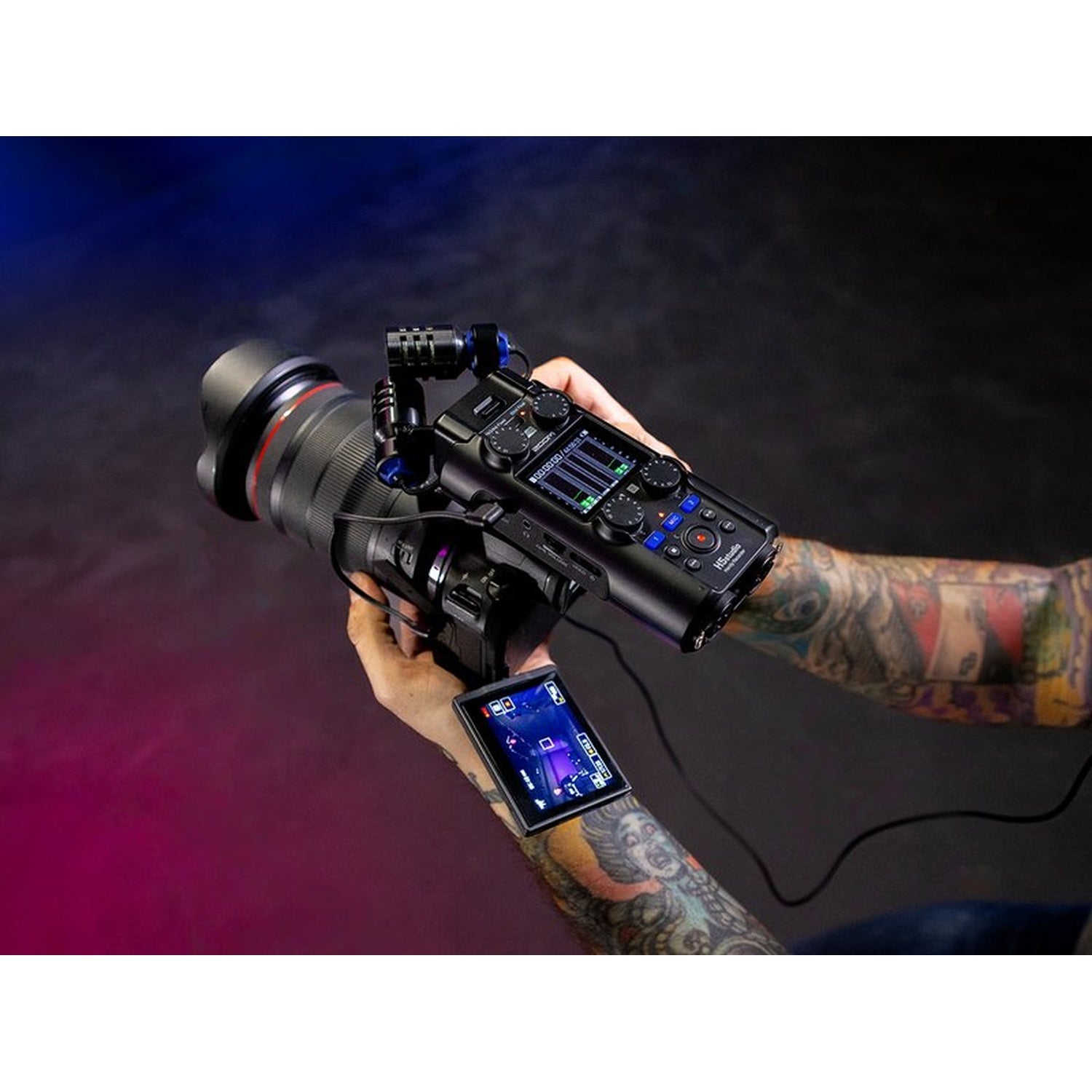

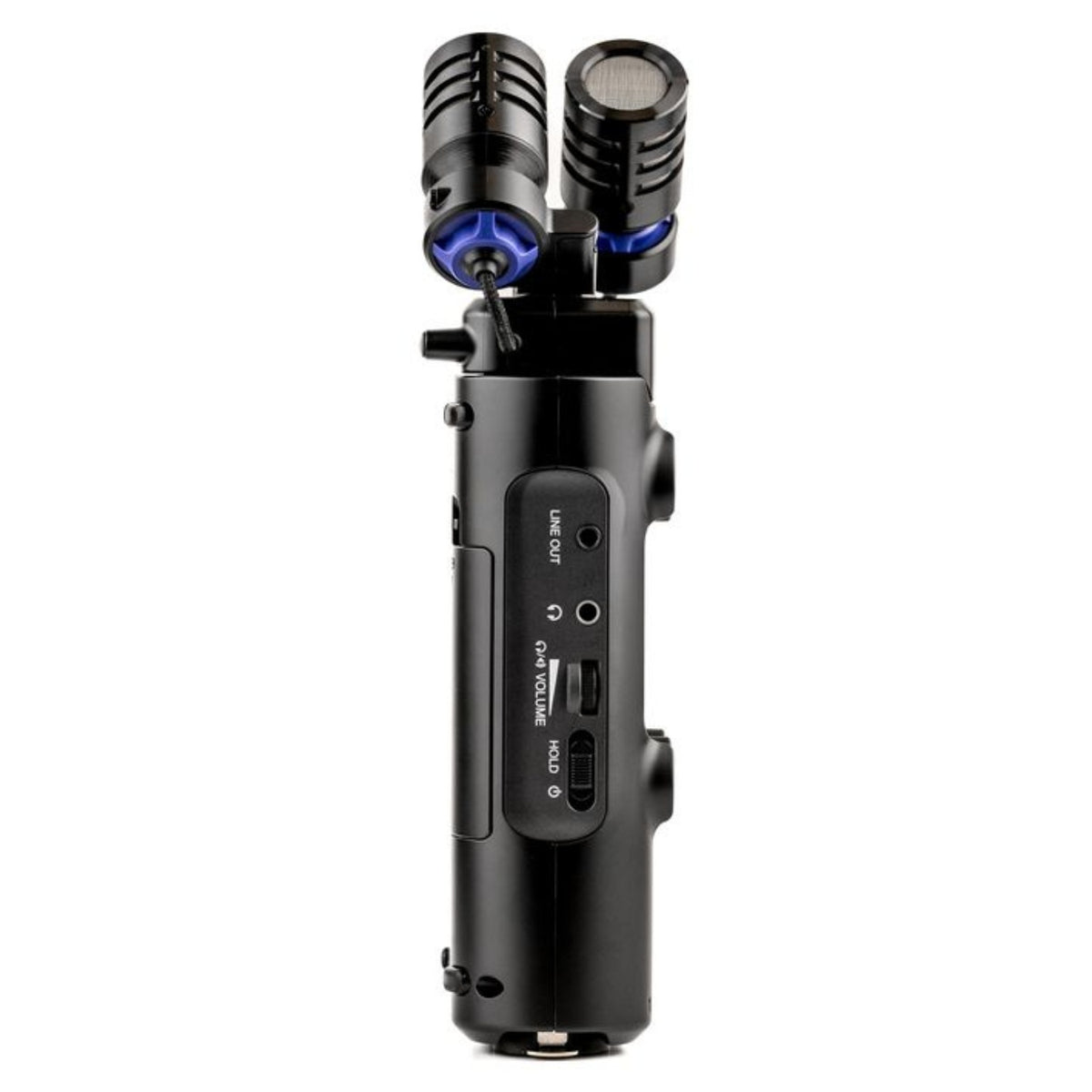

Line Out Use the 3.5mm stereo LINE OUT to connect directly to a camera, easily syncing your audio and video.

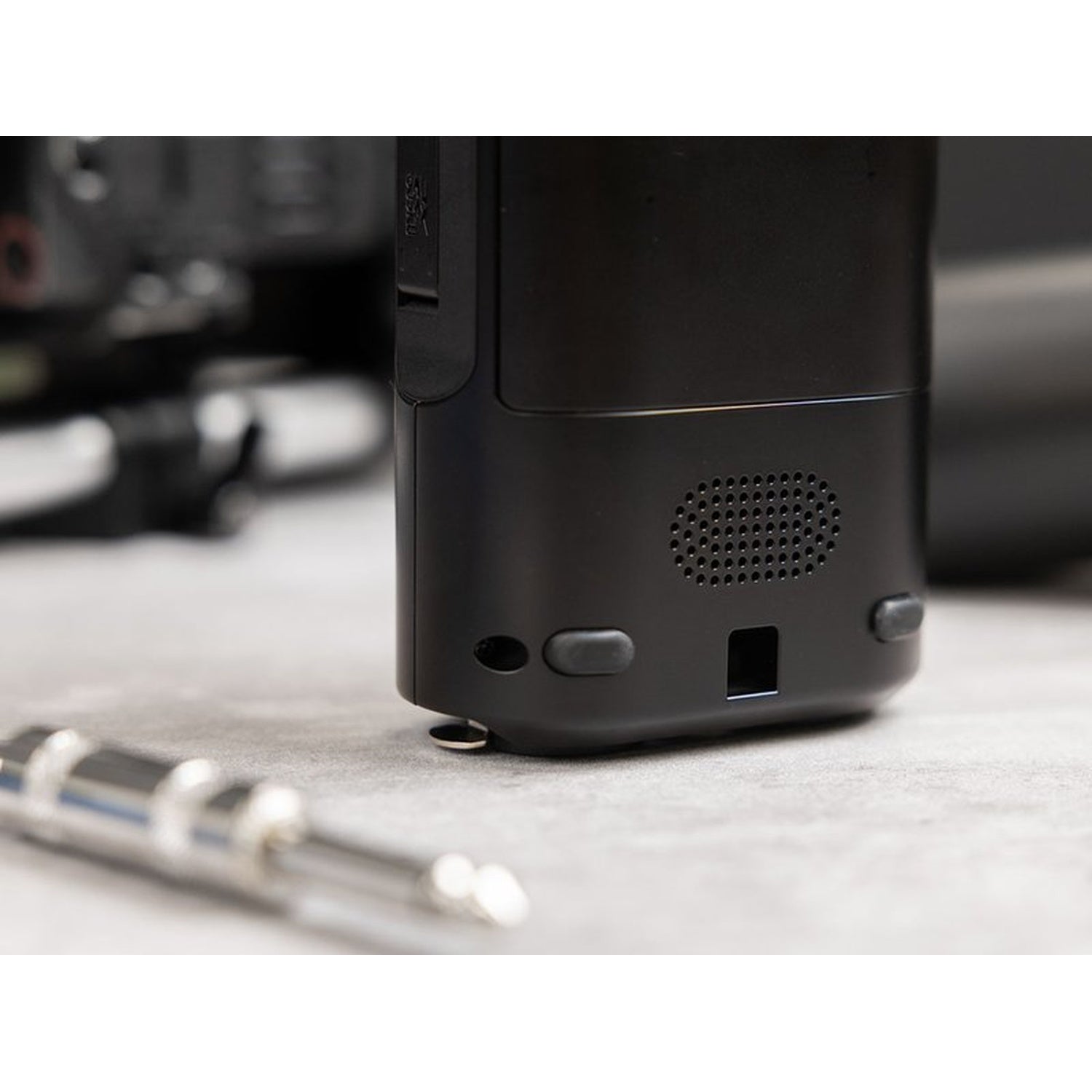

Onboard Speaker The built-in speaker has a maximum output of 250mW for previewing recordings on the spot.

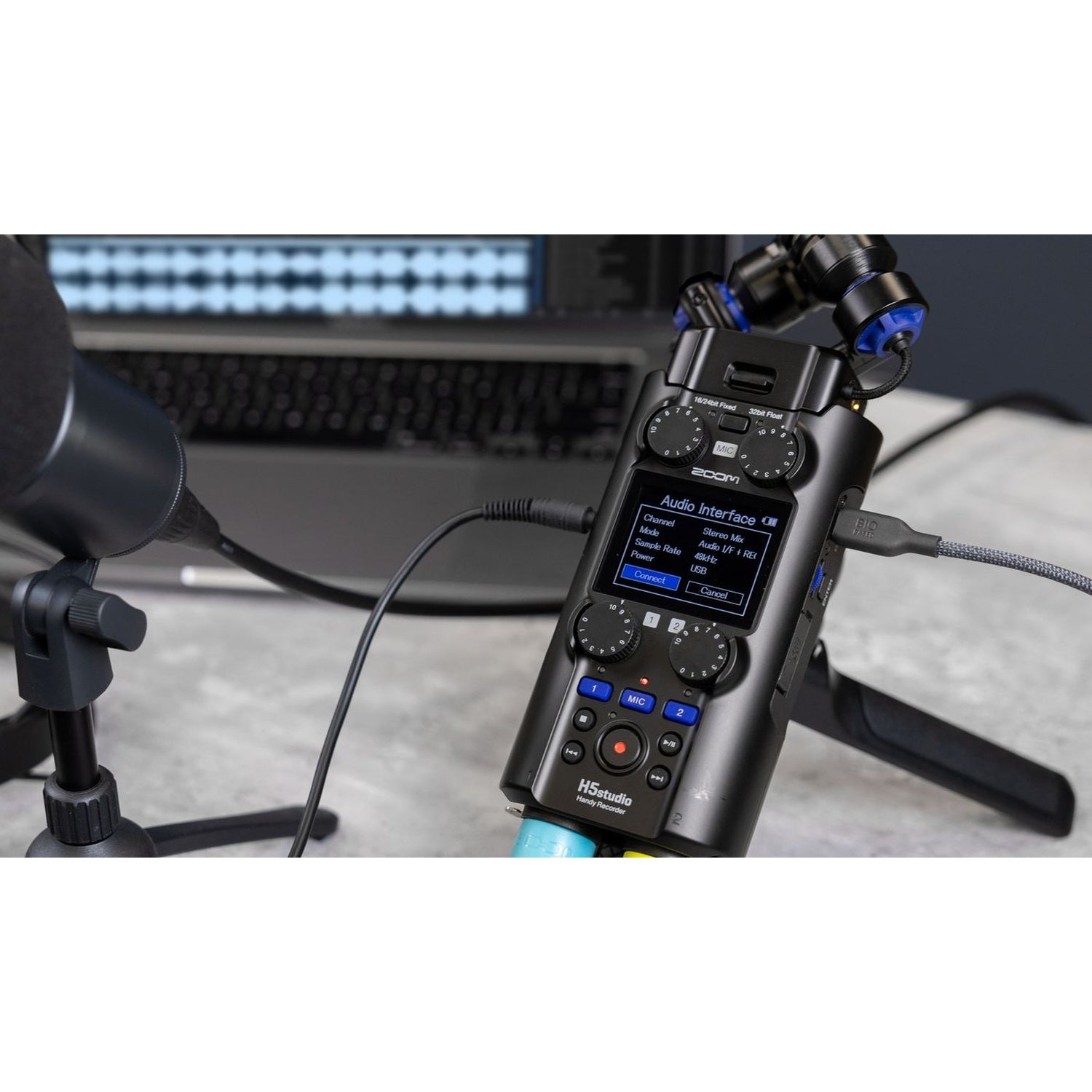

USB Audio Interface The H5studio is a 4-in/2-out USB audio interface for Mac, Windows, iOS, and Android, supporting 32-bit float and 16/24-bit recording. Stream live and simultaneously record a backup to microSD.

Timecode The TCA-1 timecode adapter* generates and outputs timecode or jams to an external clock. Thanks to its precision temperature-compensated crystal oscillator (TCXO) it generates ultra-accurate timecode, staying within 0.5 frames over 24 hours. * Available separately

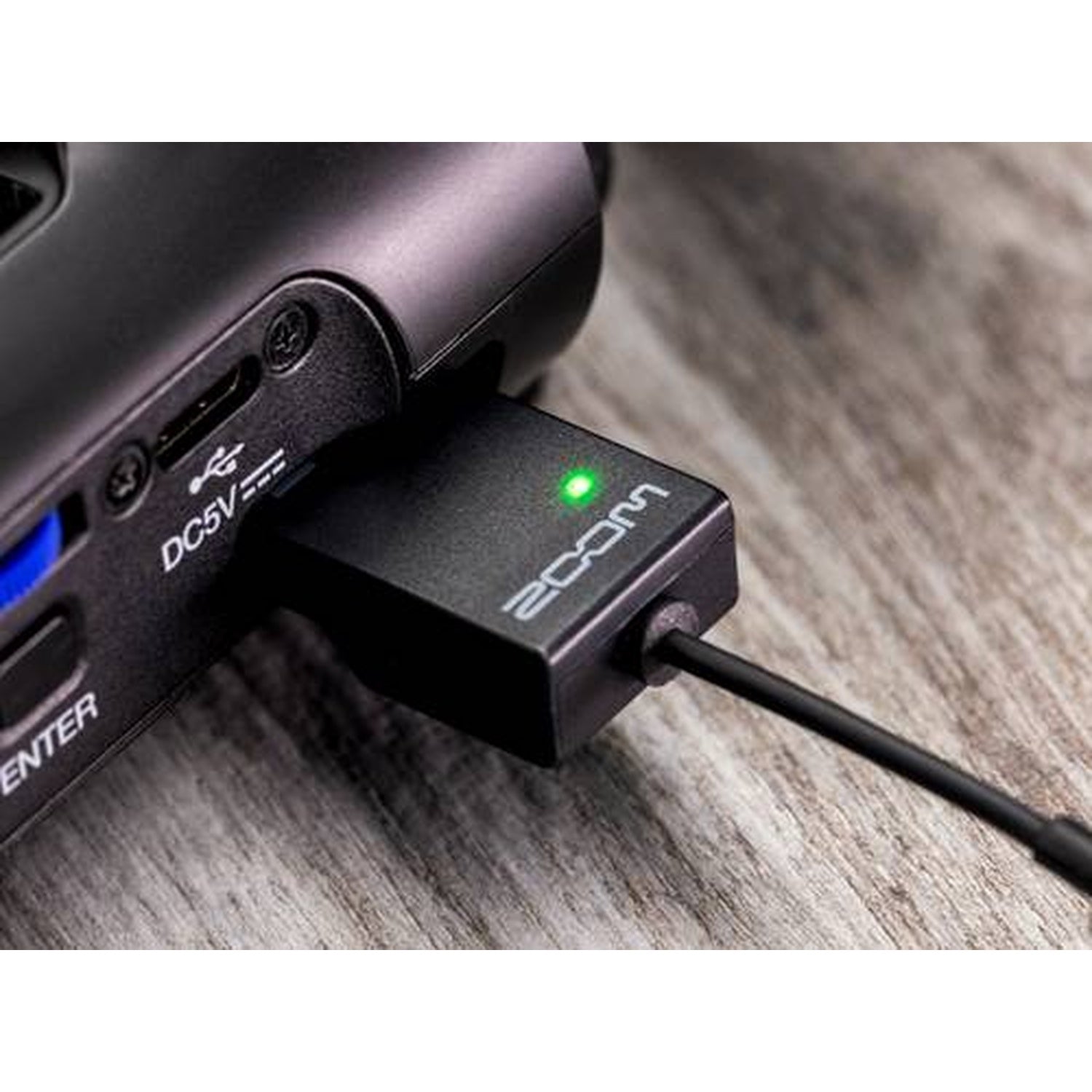

Wireless Timecode You can also receive wireless timecode from the ATOMOS® UltraSync BLUE.* * BTA-1 Bluetooth adapter required

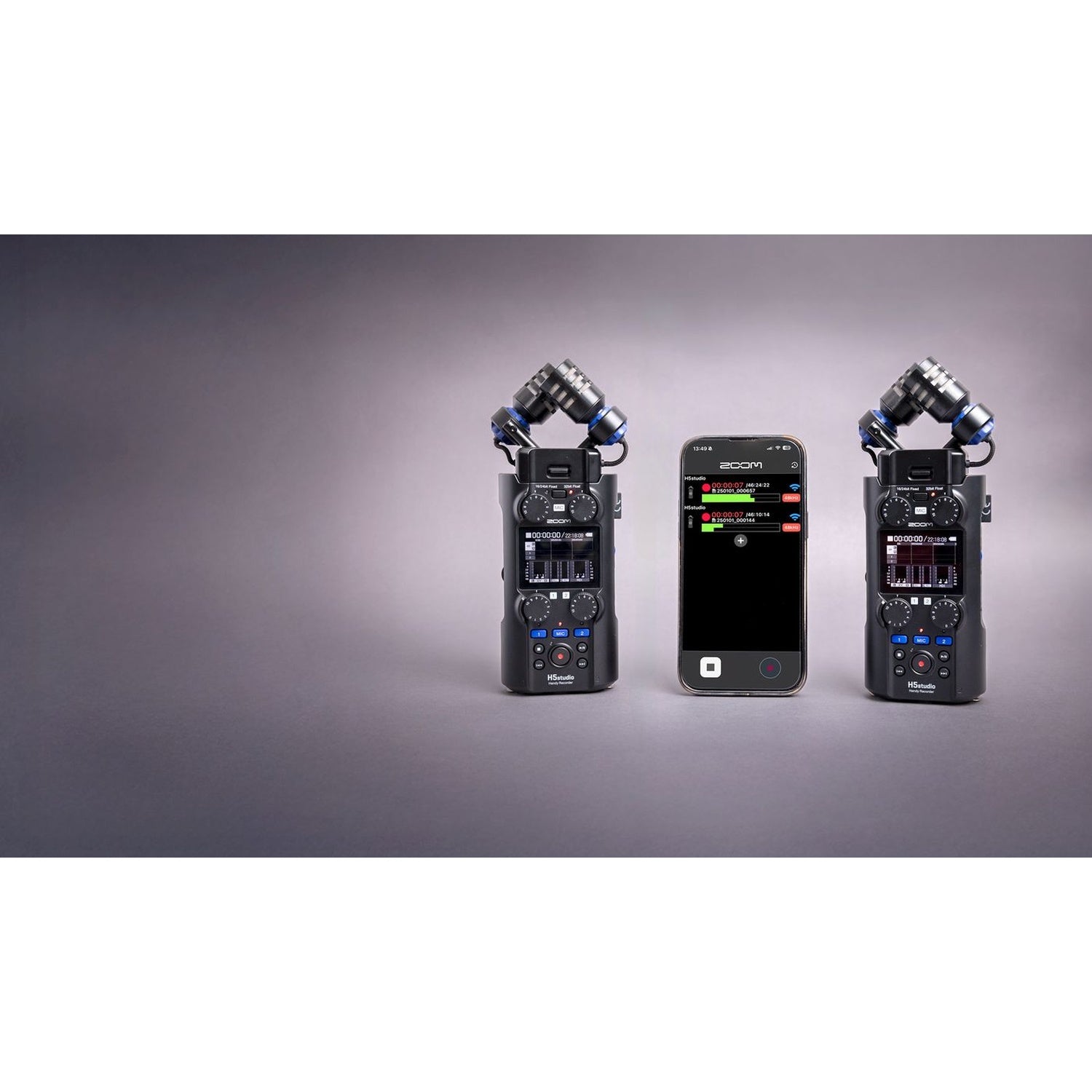

Handy Control & Sync With the ZOOM Handy Control & Sync app for iOS / Android, you can remotely manage multiple Zoom recorders*, control start/stop, and synchronize timecode effortlessly.** * Current compatible models: H2essential, H4essential, H6essential, H5studio, H6studio ** BTA-1 Bluetooth Adapter required.

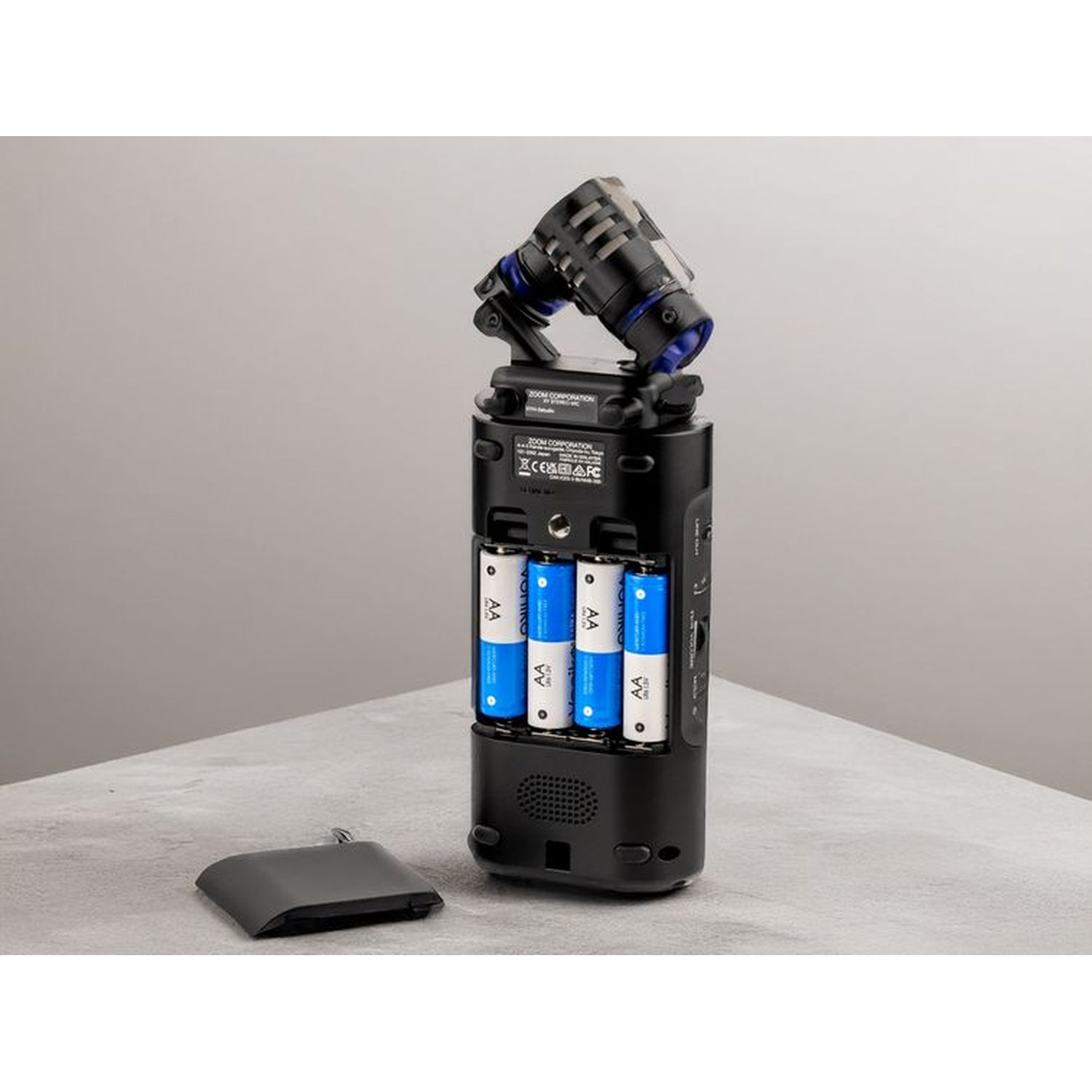

## Power Up The H5studio operates on 4 AA alkaline batteries for up to 15 hours of recording. Power through the USB port using a USB mobile battery or AC adapter*. *AC-17 sold separately

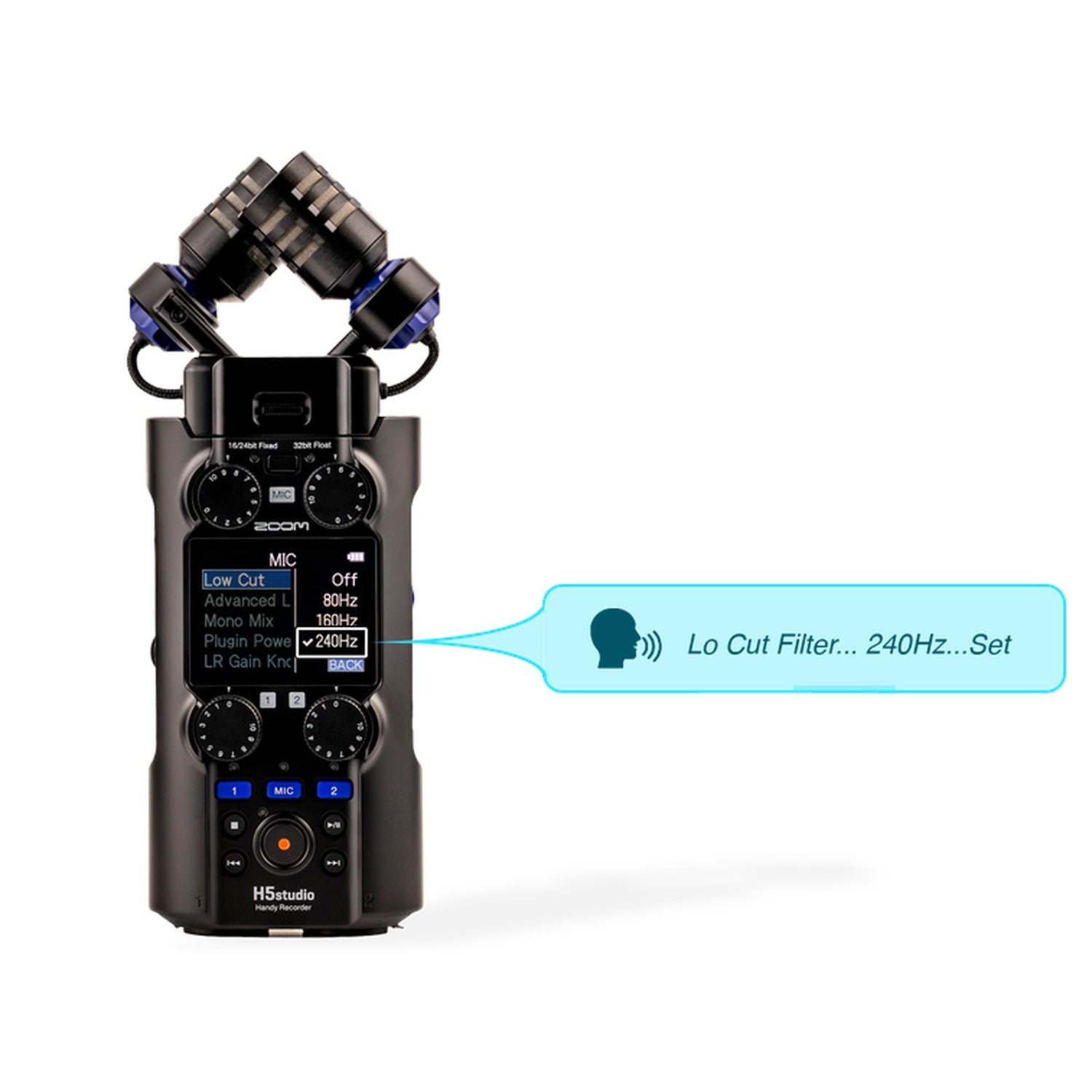

## Accessibility The H5studio is designed with Accessibility for the blind and visually impaired. Navigate the menu with audible descriptions through the built-in speaker or headphones. Creators can choose English, Spanish, French, German, Italian or Chinese.*

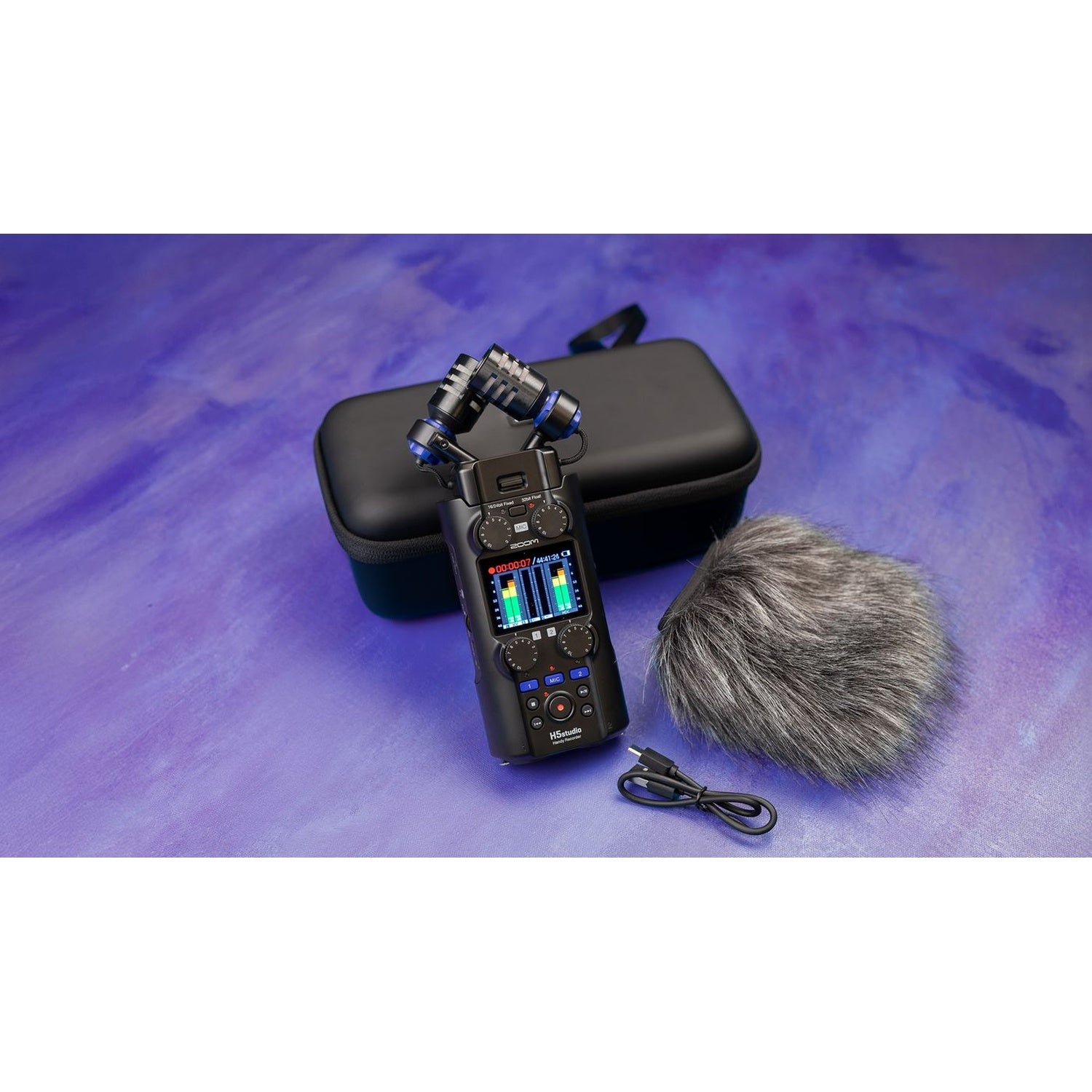

## Accessory pack The optional accessory pack (APH-5s) includes a padded shell case, hairy windscreen, AC adapter, and USB-C cable.
