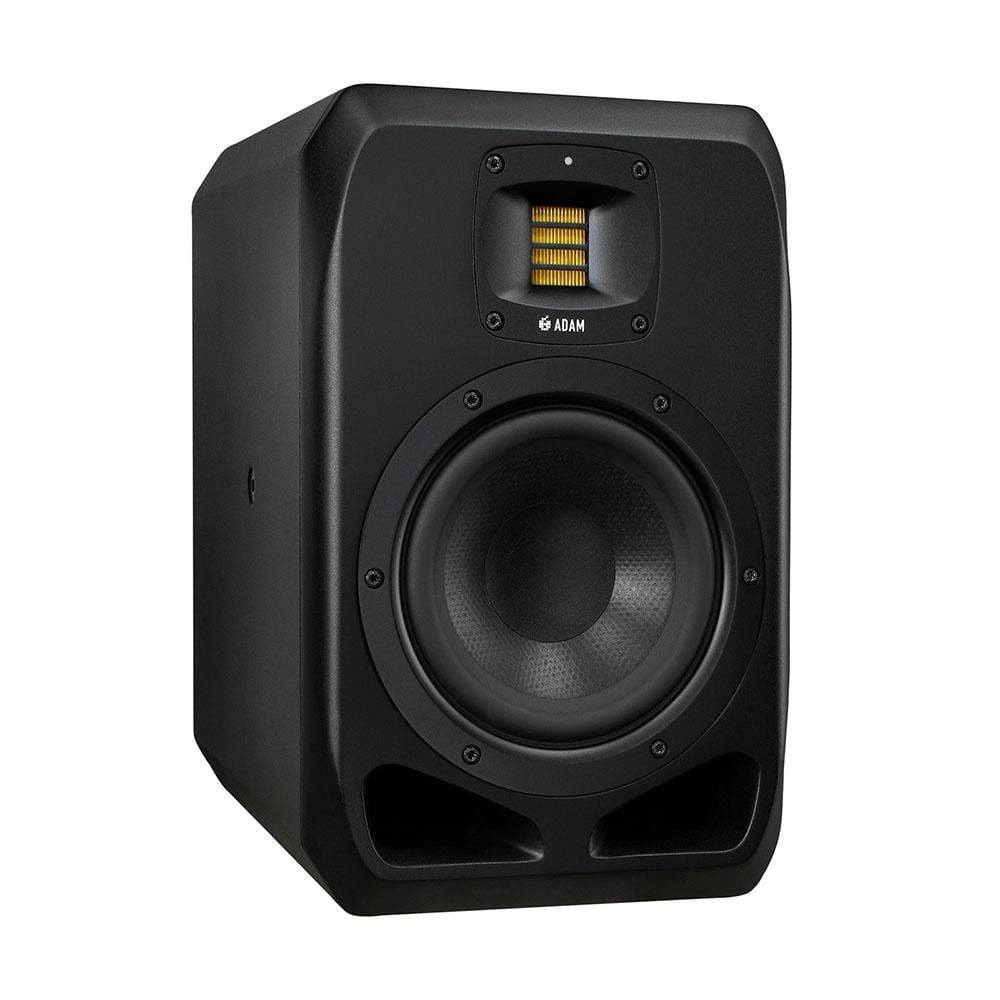

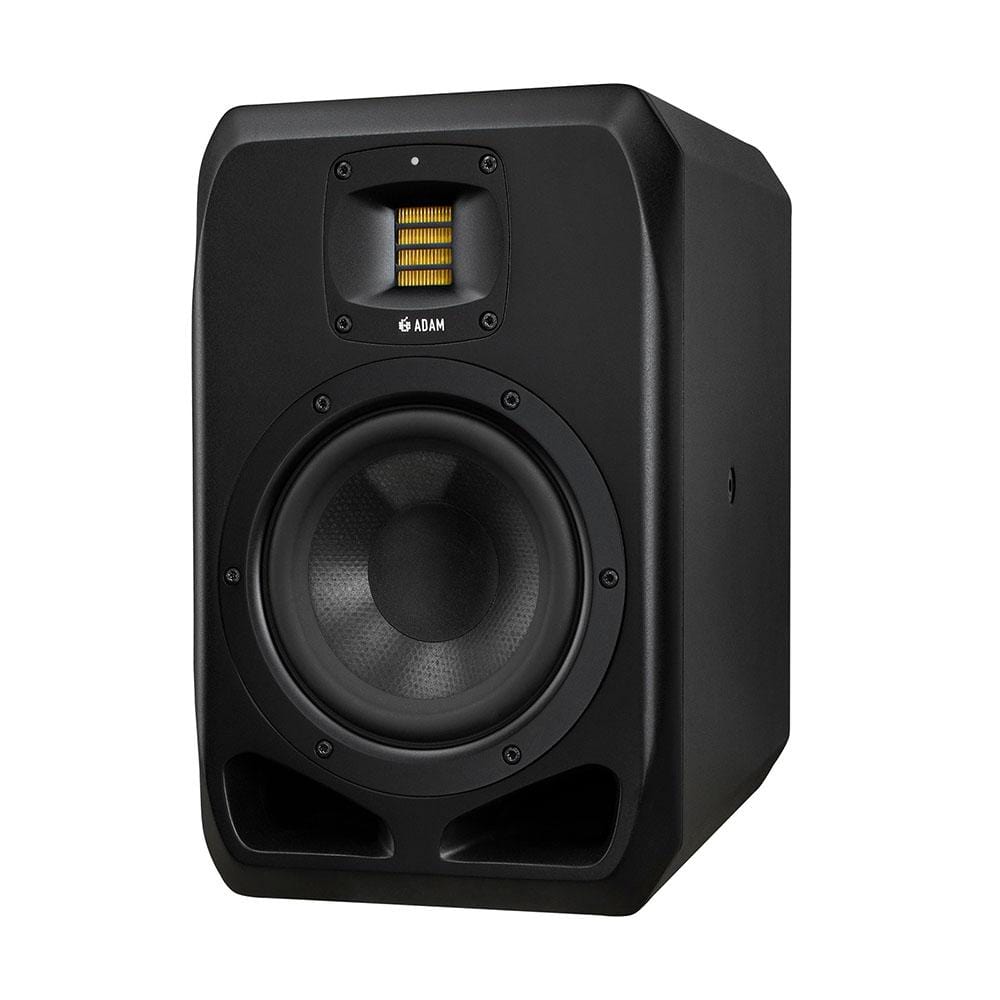

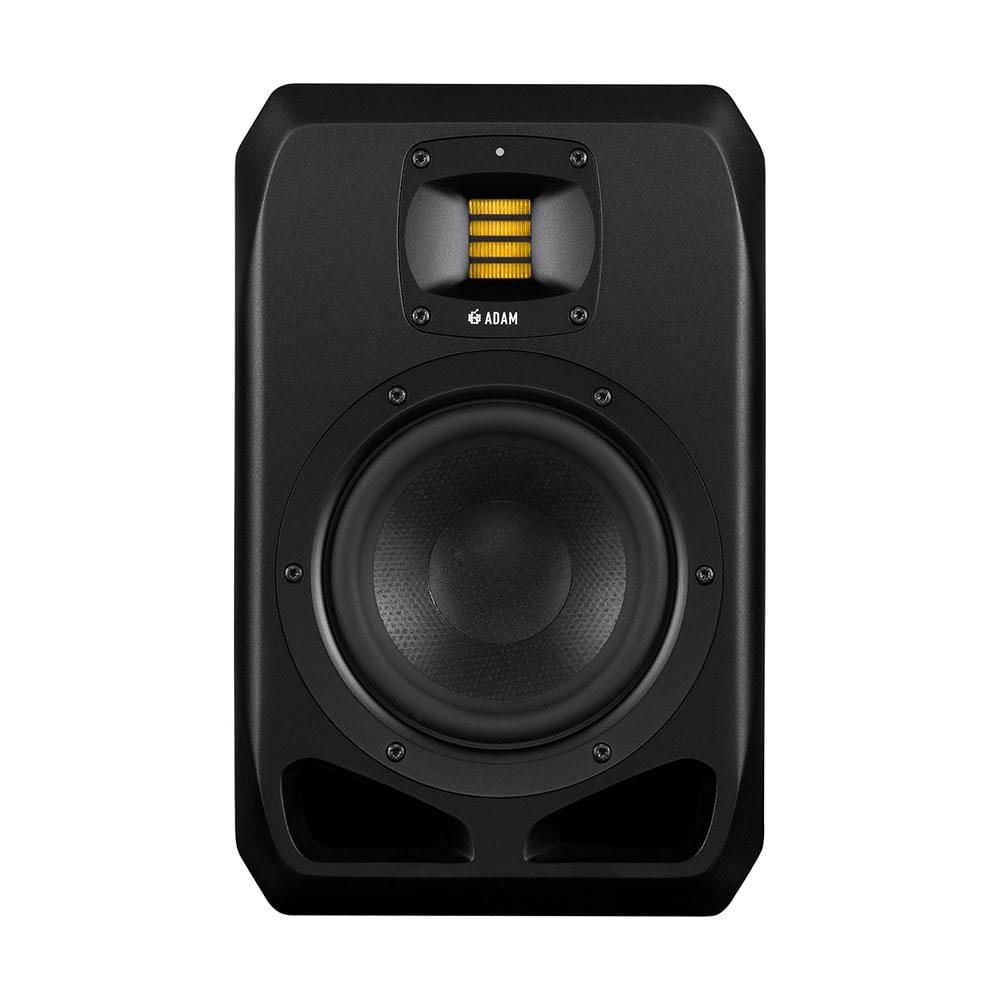

ADAM Audio S2V Active Studio Monitor Speaker - Single

Box Damage/ Minor cosmetic flaws

ADAM Audio S2V Active Studio Monitor Speaker Overview: The S2V is a classic two-way nearfield monitor designed for use in small-to-medium-sized control rooms The 7-inch bass driver, newly created from the ground up for the S Series, covers frequencies ranging from 35 Hz to 3 kHz and delivers a powerful, distortion-free low-end with a wide dynamic range.

The carefully refined S-ART tweeter, handbuilt as ever at the ADAM Audio factory in Berlin, works seamlessly in tandem with the newly developed HPS waveguide, creating absolutely precise imaging within a generously proportioned sweet spot The S2V’s compact dimensions belie its impressive power.

A 300 W Class D amplifier drives the woofer while a 50 W Class A/B unit handles the S-ART tweeter; the combined output produces SPLs of up to 120dB per pair The S Series’ custom-designed DSP optimizes the loudspeaker crossovers to create linear responses for the entire range, as well as providing user equalization and in-room tuning/voicing functions.

The DSP also handles the limiter-based high-frequency driver protection, processes the signals from the AES3 digital inputs, and will in time facilitate various expansion options Software updates can be carried out with ease via the associated USB port, which also allows users to connect computers and control the speakers’ DSP functions via a software front-end.

With its highly accurate frequency response and balanced, razor-sharp imaging, the S2V allows users to pinpoint even the most subtle audio details, making it an ideal choice for use in demanding studio environments Features: German Handmade Precision S-ART Tweeter with HPS Waveguide 7“ Woofer (Hexacone) Cumulated Amp.

Power RMS: 350 W Frequency Response: 35 Hz - 50 kHz Max SPL Per Pair at 1 m: ≥120 dB AES3 Digital Inputs And Various Expansion Options FEATURES & BENEFITS S-ART tweeter, handmade in Berlin and manufactured to the tightest tolerances in ADAM Audio’s history Allows longer operation with fewer signs of fatigue Their breakup is prevented by the folded diaphragms, distortions are effectively reduced to a minimum Advanced dynamic range due to acoustically effective diaphragm surface that is 2.5 times bigger (compared to a classic tweeter according to the piston principle) The air velocity ratio of 4:1 during the sound generation by folded S-ART membrane Direct, fast response in the high-range even with complex transients Newly designed HPS waveguide, milled from a solid block of aluminum Makes dispersion more consistent and imaging more stable over a wider area Reduction of early reflections on the surfaces of, e.g.

mixing consoles, desks, etc Custom-built Extended Linear Excursion (ELE) bass drivers Accurate audio reproduction at an extremely high resolution thanks to the precision-designed relationship between its low weight, optimized inner damping and highly rigid HexaCone membrane, in conjunction with a basket which has been developed to eliminate unwanted resonance and distortion Custom-designed Symmetrical Magnet Assembly (SMA) Allows the voice coil a maximum excursion three times greater than that offered by previous designs, with an extended, symmetrical magnetic field ensuring linear, low-distortion operation Power compression effects are prevented by an intelligent self-cooling system Vertical 2-way system with 7” woofer Very high resolution of the stereo image Spacious bass reflex ports on the front Bass reproduction with very low compression Allows positioning close to walls Highly efficient PWM ICE Power amplifier for the woofer coupled with an A/B amplifier for S-ART tweeter Low-distortion amplification at both low and high volume levels Linear frequency response of 35 Hz to 50 kHz Unbiased reproduction in a wide frequency band Maximum peak sound pressure per pair in 1 m ≥ 120 dB Powerful, compression-free sound reproduction even at very high sound levels Custom DSP engine Perfect crossovers for optimal frequency response and maximum dynamic range EQ options and presets for in-room optimization Limiter-based amp protection, AES3 digital inputs and board connectors for future expansion options, together with a USB connector for software upgrades and computer-based control Analog XLR input Optimized for balanced line signals Acoustically optimized and weightily constructed cabinets Reduction of susceptibility to vibrations and unwanted edge-diffraction effect 2 years warranty with optional extension to 3 years with the registration of the product Full repair service if required for 5 years Specifications: WOOFER Number: 1 Basket Ø: 7" (178 mm) Voice Coil Ø: 1.5" (39 mm) Cone Material: HexaCone TWEETER Number: 1 Type: S-ART Diaphragm Area: 4 inch² (2420 mm²) Equiv.

Diaphragm Ø: 2" (56 mm) Velocity Transform Ratio: 4:1 Diaphragm Weight: 0.17 g Waveguide: HPS BUILT-IN AMPLIFIERS Number: 2 Woofer: 1 Type: PWM Amp Power RMS: 300 W Tweeter: 1 Type: A/B Amp.

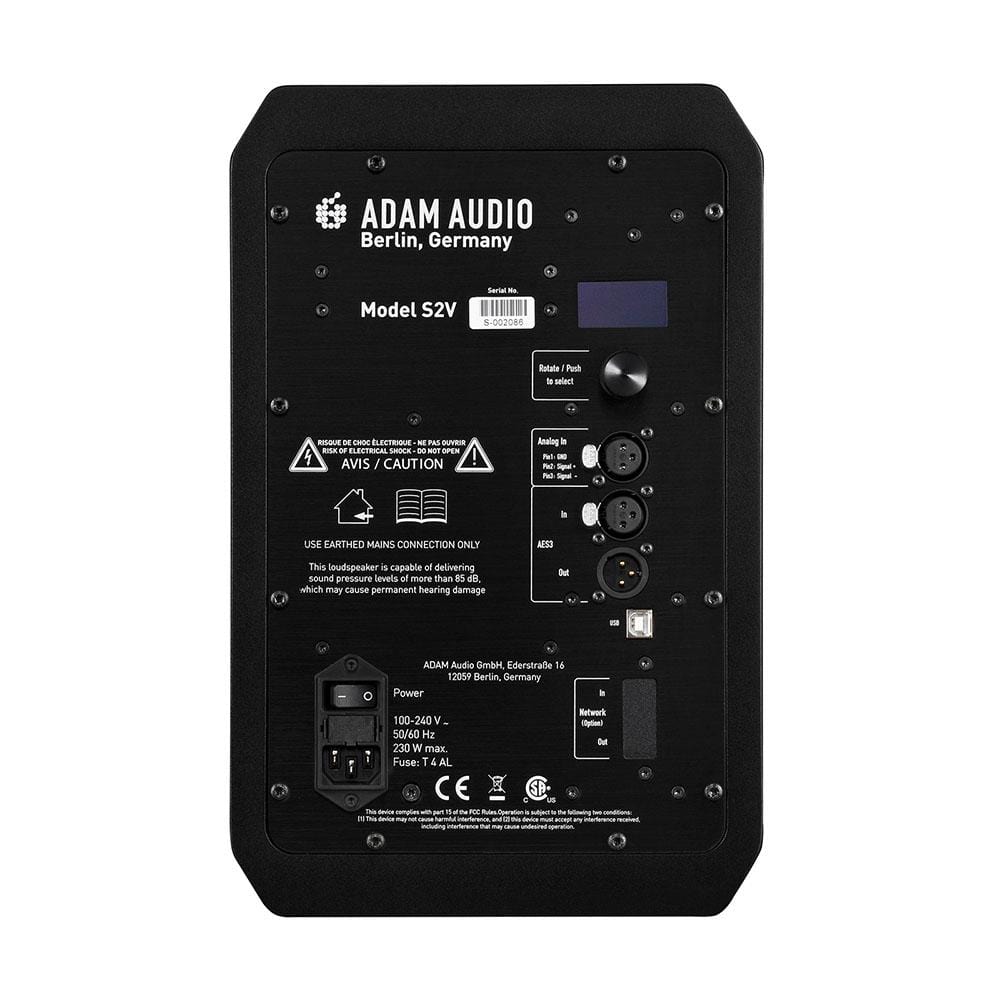

Power RMS: 50 W CONTROL OPTIONS Input Sensitivity: Adjustable Parametric EQs: 6 Room Compensation High-Shelf EQ: 1 Room Compensation Low-Shelf EQ: 1 Preset Memories: 5 Delay: 0 ms to 5 ms INPUT CONNECTORS Analog: XLR Input Impedance: 48 kOhm Max Input Level: +24 dBu Digital: AES3 GENERAL DATA Panel: Rear Frequency Response: 35 Hz - 50 kHz THD > 100 Hz: ≤0.4 % Max.

SPL per pair at 1 m: ≥120 dB Crossover Frequencies: 3 kHz Max Power Consumption: 230 W Weight: 24.2 lb (11.0 kg) Height x Width x Depth: 13,6" (346 mm) x 8,7" (222 mm) x 13,3“ (338 mm ) Delivery Contents: Power cord, Manual.
