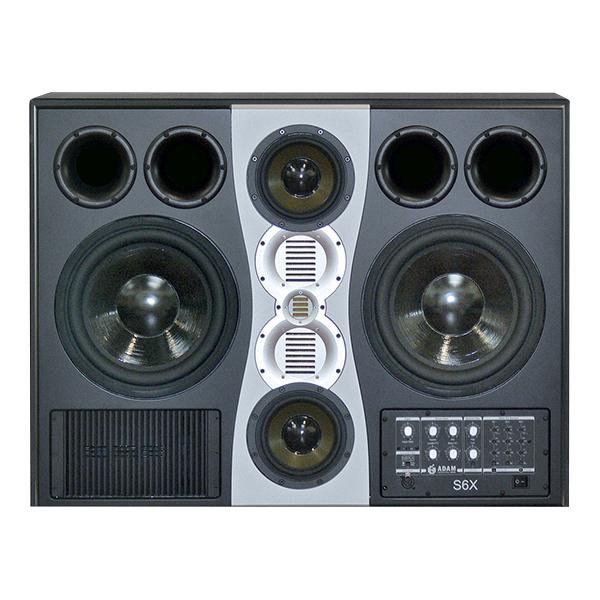

Adam Audio S6X Active Studio Monitor Speaker

SKU : ADA-S6X
Sold out
Rs. 1,810,000
Rs. 1,719,499

Or Just Rs. 286,583 Rs. for 6 months
0%* Interest EMI available for all major credit cards and Bajaj Finserv Card. Call +91-22-61235384

Limited Period Offer : Don't forget to use Coupon Code: " INSTANT4 " at checkout for additional 4% discount.
Adam Audio S6X Active Studio Monitor Speaker Overview:
The S6X main monitor is designed for large control rooms and film studios. It uses a symmetrical concept to increase the realistic reproduction of ADAM monitors to higher sound pressure levels. ADAM has avoided the typical overloading of the bass range that can often be found in main monitors. A wide horizontal radiation characteristic and moderate vertical beaming are crucial factors to minimize the impact of ceiling and floor reflections and achieve neutral sound reproduction at high volumes.

Extended D’Appolito design
A total of seven individual speakers were arrayed so that gradual transitions could be made possible given the size of the cabinet. In addition, we chose a horizontal symmetry that can be described as an extended D’Appolito configuration. This kind of design combined with suitable transition frequencies and filter slopes results in radiation patterns that lead to very consistent reproduction characteristics in the horizontal center position. At the same time, vertical dispersion is reduced so that reflections from the ceiling, floor or mixing console are greatly reduced. Thus, so called ‘early reflections’ have less chance to interfere, which leads to significantly better stereo imaging and a more three-dimensional sound.

Impulse Coupling
Further progress in development was achieved by the use of Alucore panels, an extra firm component material with an aluminum honeycomb core. All drivers of the S6X are mounted on such panels, which considerably improves mechanical coupling between the drivers and the cabinet.

The S6X: accuracy and power
A number of innovative approaches in conjunction with uncompromising effort in all sonically relevant areas make the S6X one of the largest and most sophisticated active monitors currently available. The horizontal symmetry design is conscious of harmonic and generous diaphragm area proportions to achieve not only a flat frequency response, but also a consistent dynamic behavior within the entire frequency range. Complex orchestral structures can be easily analyzed and spatially arranged on the S6X. Extensive control options on the front panel allow for adjusting to different acoustic situations or personal taste.

Amplification
The built-in amplifiers are coupled to the respective drivers as directly as possible so that remote amplifier units do not compromise the advantages of active technology. One 500 Watt amplifier is assigned to each of the 12″ woofers, while 250 Watt units are used the other bands of the frequency range. This main monitor combines very high accuracy exceptional power: SPL peaks far beyond 130 dB are produced without any compression or harshness. The S6X is an excellent choice for large control rooms and film or sound studios.

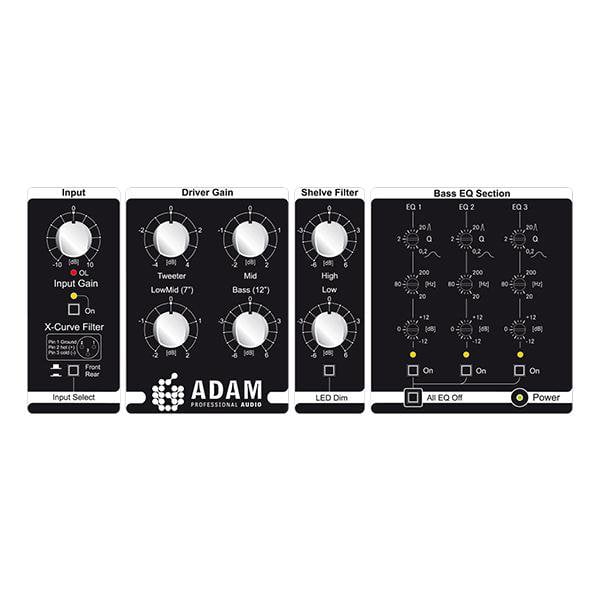

Control panel
In addition to the input sensitivity that can be adapted in the range of ±10 dB, there are four other level controls that affect the individual amplifier modules. Shelving filters at both ends of the frequency spectrum and three fully parametric equalizers help compensate for standing waves in the control room. The EQs can be inserted separately or grouped so their effect can be directly evaluated.

Features:
  • German Handmade X-ART Tweeter & 2 x X-ART Midrange
  • 2 x 12“ and 2 x 7.5" Woofer (HexaCone)
  • Amp. Power RMS / Music: 2250 W / 3150 W
  • Frequency Response: 23Hz - 50 kHz
  • Max. SPL per pair at 1 m: ≥133 dB
Specifications:
WOOFER
  • Number: 2
  • Basket Ø: 12" (305 mm)
  • Voice Coil Ø: 3" (75 mm)
  • Cone Material: HexaCone
MIDRANGE (CONE)
  • Number: 2
  • Basket Ø: 7.5" (186 mm)
  • Voice Coil Ø: 2" (50 mm)
  • Cone Material: HexaCone
MIDRANGE
  • Number: 2
  • Type: X-ART
  • Diaphragm Area: 2 x 26 inch² (16800 mm²)
  • Equiv. Diaphragm Ø: 2 x 5.5" (146 mm)
  • Velocity Transform Ratio: 3.5:1
  • Diaphragm Weight: 0.7 g
TWEETER
  • Number: 1
  • Type: X-ART
  • Diaphragm Area: 4 inch² (2420 mm²)
  • Equiv. Diaphragm Ø: 2" (56 mm)
  • Velocity Transform Ratio: 4:1
  • Diaphragm Weight: 0.17 g
BUILT-IN AMPLIFIERS
  • Woofer: 2
  • Type: PWM
  • Amp. Power RMS / Music: 500 W / 700 W
  • Midrange (cone): 2
  • Type: PWM
  • Amp. Power RMS / Music: 250 W / 350 W
  • Midrange: 2
  • Type: PWM
  • Amp. Power RMS / Music: 250 W / 350 W
  • Tweeter: 1
  • Type: PWM
  • Amp. Power RMS / Music: 250 W / 350 W
CONTROL PANEL
  • Input Sensitivity: ±10 dB
  • EQ 80 Hz (Q / Hz / Level): 3 x 0.2 - 20 / 20 - 200 / ±12 dB
  • High Shelf EQ > 6 kHz: ±6 dB
  • Low Shelf EQ < 150 Hz: ±6 dB
  • Sub Gain: ±4 dB
  • Mid-Woofer Level: ±2 dB
  • Mid Level: ±2 dB
  • Tweeter Gain: ±4 dB
INPUT CONNECTORS
  • Analog: XLR
GENERAL DATA
  • Panel: Front
  • X-Curve Filter: Yes
  • Frequency Response: 23 Hz - 50 kHz
  • THD 90 dB / 1 m > 100 Hz: ≤0.5 %
  • Max. SPL with sine wave acoustic 100 Hz to 3 kHz at 1 m: ≥123 dB
  • Max. SPL per pair at 1 m: ≥133 dB
  • Crossover Frequencies: 85 / 800 / 3100 Hz
  • Input Impedance: 10 kOhm
  • Weight: 213.8 lb (97 kg)
  • Magnetically Shielded: No
  • Height x Width x Depth: 28.5" (720 mm) x 37" (940 mm) x 19.5" (490 mm)
  • Delivery Contents: Power cord, manual
