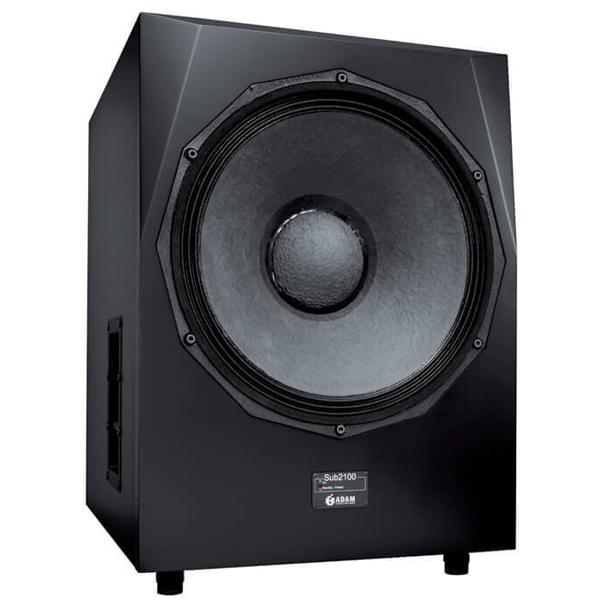

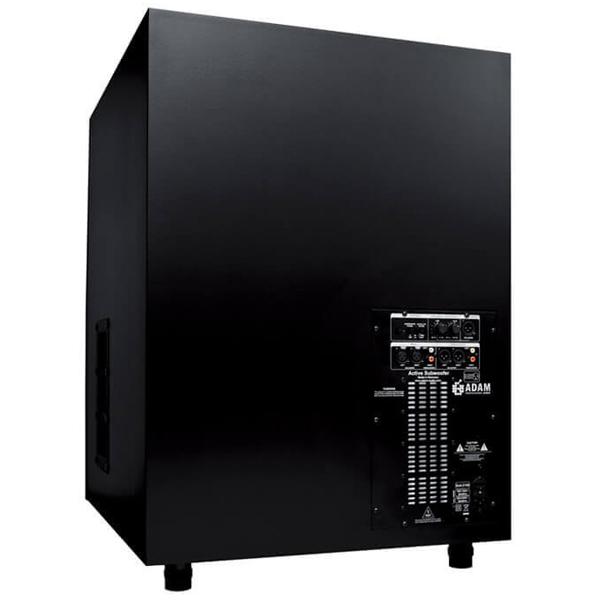

ADAM Audio SUB2100 Active Subwoofer

ADAM Audio SUB2100 Active Subwoofer Overview: ADAM Audio has developed the unique Sub2100 subwoofer for the special requirements of large control rooms and studios The Sub2100 combines a huge 21.5″ woofer and an amplifier capable of 1000W continuous power housed in a bass reflex enclosure tuned for reproducing frequencies down to 18Hz.

The sheer power and extremely high efficiency (99dB/ W/m) enable this system to produce linear SPL peaks of ≥128dB without any significant compression The world‘s largest voice coil Essential to the volume of this woofer is the gigantic 6” voice coil.

Equipped with this voice coil, the Sub2100 is capable of reaching the highest SPLs in the lowest frequencies that can be perceived by the human ear On every level, the Sub2100 establishes a new benchmark in subwoofer technology.

Features: 21.5“ Subwoofer (paper) Amp Power RMS / Music: 1000 W / 1200 W Frequency Response: 18 Hz - 150 Hz Max.

peak SPL at 1 m: ≥128 db FEATURES & BENEFITS 21.5" Woofer, 1000 Watts Enough said Linear bass reproduction down to 18 Hz Ideal addition to main monitors Maximum Peak sound pressure in 1 m ≥ 128 dB Powerful, compression-free sound reproduction even at very high sound levels High efficiency PWM amplifier Low-distortion amplification at both low and high volume levels Special 21.5" woofer with paper diaphragm Unrestricted bass reproduction for low-fatigue operation even at very high volumes 150 mm voice coil Enables maximum sound pressure in the deepest sound areas perceived by the human ear Additional sub output Allows building a (double) bass array Upper cut-off frequency is selectable between 50 - 150 Hz Allows optimal adaptation of the total system on the bass performance of the satellites Connectable high-pass filter for the satellite outputs, which blocks signals below 85 Hz Dolby- Fair reproduction of film sound Discharging the satellites from the low frequencies 2 years warranty with optional extension to 3 years with the registration of the product Full repair service if required for 5 years Specifications: SUBWOOFER Number: 1 Basket Ø: 21.5" (543 mm) Voice Coil Ø: 6" (150 mm) Cone Material: Paper BUILT-IN AMPLIFIERS Subwoofer: 1 Type: PWM Amp.

Power RMS / Music: 1000 W / 1200 W INPUT CONNECTORS Analog: XLR / RCA GENERAL DATA Frequency Response: 18 Hz - 150 Hz THD > 60 Hz: ≤1 % Max peak SPL at 1 m: ≥128 dB Crossover Frequencies: 50 - 150 Hz Input Impedance: 10 kOhm Panel: Rear Weight: 187.4 lb (85 kg) Height x Width x Depth: 33.5" (850 mm) x 23.5" (600 mm) x 28" (705 mm) Delivery Contents: Power cord, manual.
