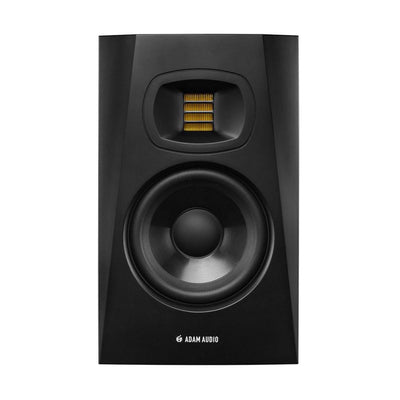

Adam Audio T5V Active Studio Monitor

SKU : ADA-T5V
Save 4%
Rs. 23,700
Rs. 22,799

Or Just Rs. 3,800 Rs. for 6 months
0%* Interest EMI available for all major credit cards and Bajaj Finserv Card. Call +91-22-61235384

Limited Period Offer : Don't forget to use Coupon Code: " INSTANT4 " at checkout for additional 4% discount.

Buy Bajaao Premium Warranty at Affordable Prices. Offering door to door warranty service. T&C

Seen It For Less? Learn More
Overview:

The T5V is a highly affordable two-way nearfield monitor and optimized for small control rooms.

With its 5” woofer the bass-frequency response of the T5V extends to 45 Hz. The new U-ART tweeter, a breakthrough solution for use in high-resolution recording and mixing on a budget, goes up to 25 kHz and is mated to a precision waveguide with the same dispersion-control attributes as the High Frequency Propagation (HPS) waveguide used in ADAM Audio’s flagship S Series monitors. The waveguide’s highly uniform dispersion of high frequencies provides an incredibly wide sweet spot that frees you from being glued to a rigid mix position while working.

A beveled cabinet with a rear-firing bass reflex port and a small footprint allows placement anywhere in your room, no matter how small, and contains built-in DSP-controlled driver crossovers and equalization as well as multi-way analog connections. Powered with a 50 W Class D amplifier for the woofer and a 20 W Class D amplifier for the U-ART tweeter, the T5V produces SPLs of up to 106 dB per pair.

Excellent acoustic characteristics, small dimensions and an outstanding cost/performance ratio make this studio monitor perfectly suited for use in small control rooms in music, video and broadcast production.

If you need to hear more bottom end, the T5V is compatible with the ADAM Sub7 and Sub8 subwoofers.

Features:

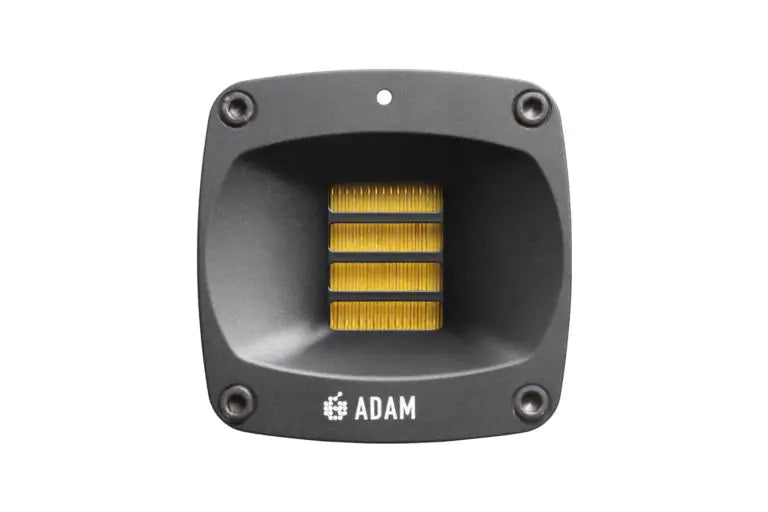

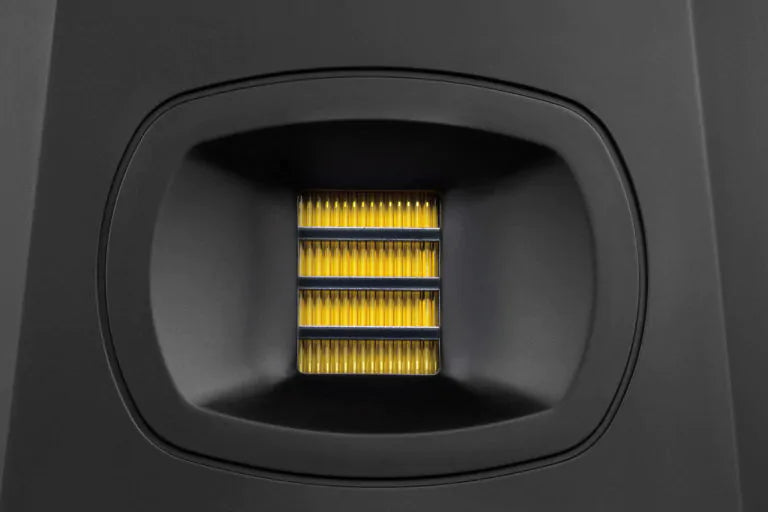

  • U-ART 1.9” Accelerated Ribbon Tweeter
  • The air velocity ratio of 4:1 during the sound generation by folded U-ART membrane
  • HPS waveguide from the S Series
  • Lightweight polypropylene construction of the woofer
  • Vertical 2-way system with 5” woofer
  • Spacious rear-firing bass reflex port
  • Linear frequency response of 45 Hz to 25 kHz
  • Maximum peak sound pressure per pair in 1 m ≥ 106 dB
  • DSP-powered crossover design
  • Simple room acoustic adjustments via high- and low-shelf filters
  • Analog inputs over XLR and RCA
  • Acoustically optimized cabinet geometry
  • Compact cabinet dimensions

Technical Data :

WOOFER
  • Number : 1
  • Basket Ø : 5" (127 mm)
  • Cone Material : Polypropylene

TWEETER
  • Number : 1
  • Type : U-ART
  • Diaphragm Area : 4 inch² (2420 mm²)
  • Equiv. Diaphragm Ø : 1.9" (48 mm)
  • Velocity Transform Ratio : 4:1
  • Diaphragm Weight : 0.17 g
  • Waveguide : HPS

BUILT-IN AMPLIFIERS
  • Number : 1
  • Type : U-ART
  • Diaphragm Area : 4 inch² (2420 mm²)
  • Equiv. Diaphragm Ø : 1.9" (48 mm)
  • Velocity Transform Ratio : 4:1
  • Diaphragm Weight : 0.17 g
  • Waveguide : HPS

CONTROL OPTIONS
  • Input Sensitivity : Switchable +4 dBu / -10 dBV
  • Gain : Yes
  • High-Shelf : - 2 dB, 0 dB, +2 dB
  • Low-Shelf : - 2 dB, 0 dB, +2 dB

INPUT CONNECTORS
  • Analog : XLR, RCA
  • Input Impedance : 10 kOhm / 20 kOhm

GENERAL DATA
  • Panel : Rear
  • Frequency Response : 45 Hz - 25 kHz
  • THD > 80 Hz : 0.5 %
  • Max. SPL per pair at 1 m : ≥106 dB
  • Crossover Frequency : 3 kHz
  • Max. Power Consumption : 132 W
  • Weight : 12.6 lbs (5.7 kg)
  • Height x Width x Depth : 11.7" x 7" x 11.7" (298 mm x 179 mm x 297mm)
  • Delivery Contents : Power cord, Quick Start Guide
