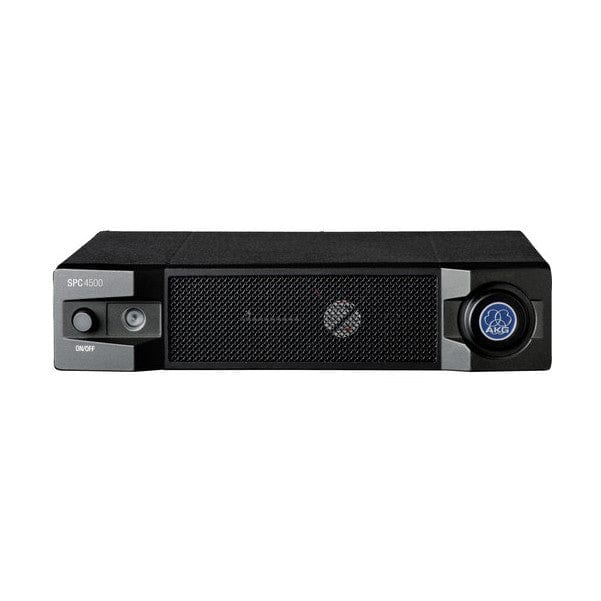

AKG SPC 4500 4 to 1 Antenna Combiner

Stationary 4-to-1 combiner
Combines antenna signals of up to four SST4500 IEM stereo transmitters

For universal use worldwide
Operates in an ultra-wide frequency range from 500 to 865 MHz

Powers transmitters via antenna lines
Eliminates any extra installation effort

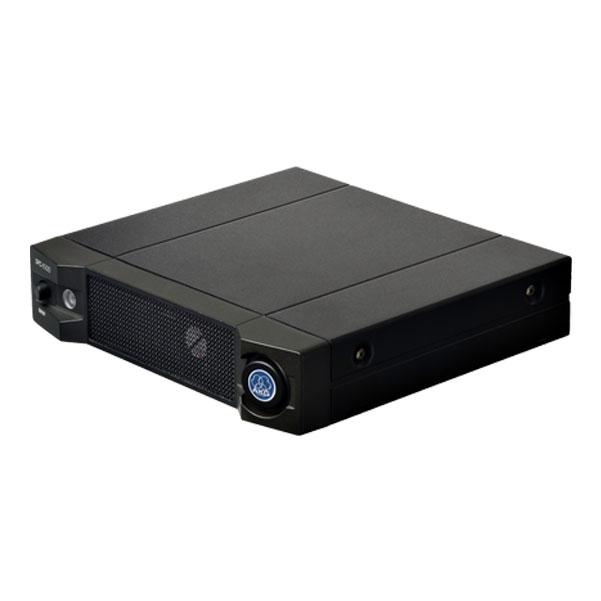

Rugged half 19” all-metal case transmitter
For space-efficient system configurations

A powerful combination
SPC4500 is an active wide-band UHF antenna combiner for connecting up to four SST4500 IEM transmitters to create large multichannel systems. It works in an ultra wide frequency range from 500 to 865 MHz. The combiner features a green/orange/red status indicator LED for full control of systems status. Any unused antenna output is automatically terminated to prevent unwanted radio interference noise. The SPC4500 comes in a rugged half-rack metal housing and works with all passive AKG transmitter antennas.

Technical Specifications:

General Specifications

  • Switching bandwidth (from/to): 500 to 865
  • Operating temperature range: -10 to 50 Celsius

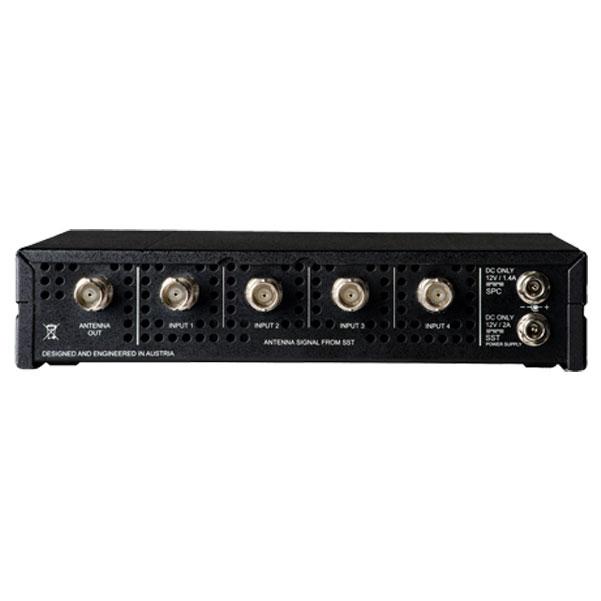

Antenna Input
  • Amount: 4
  • Type: BNC
  • Gender: Female
  • Note: RF input (50 Ohms), max. 50mW
  • Output current: 2000 mA
  • Output voltage: 12 V
  • Recommended load impedance: 50 Ohms

Powering Interface
  • Current: 1400 mA
  • Internal Power Supply: no
  • Type: Lockable DC Socket
  • Voltage: 12 V

Dimensions
  • Length: 190 mm
  • Height: 44 mm
  • Width: 200 mm
  • Net Weight: 1193 g

Antenna Output
  • Amount: 1
  • Type: BNC
  • Gender: Female
  • Note: RF Output (50 Ohms)
  • Recommended load impedance: 50 Ohms

Design
  • Body: metal
  • Finish: black

In The Box
  • 1 x SPC4500 Active UHF antenna combiner
  • 1 x RMU4000 Rack mount kit
