Allen 7 Heath QU SB Portable 18 Input 14 Out Digital Mixer
Portable 18 in / 14 out Digital Mixer with remote wireless control

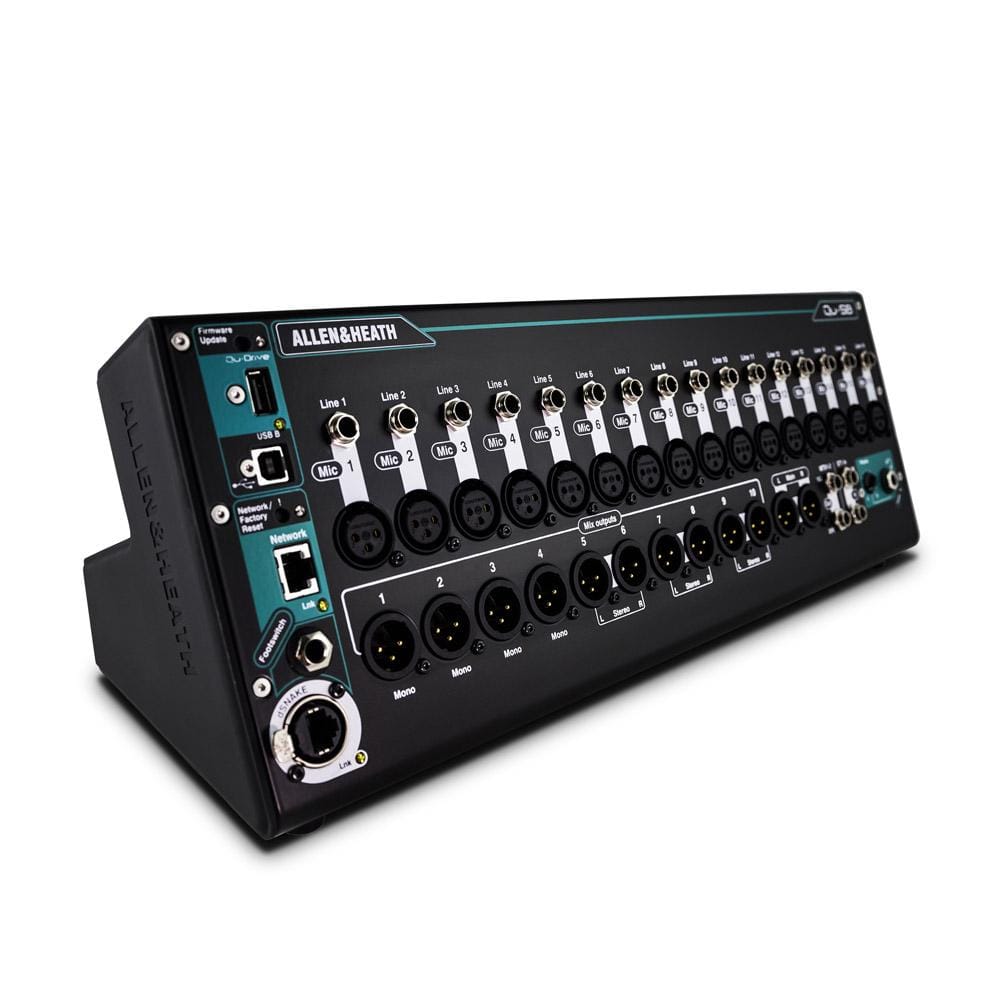

Qu-SB is an ultra-compact digital mixer which frees you to mix from anywhere in the venue and provides a smart, portable solution for performing bands and artists.
Qu-SB is portable enough to carry under one arm and comes loaded with our highly acclaimed suite of FX emulations and dynamics, making it a smart replacement for an old analogue mixer and a rack full of outboard FX.
The companion Qu-Pad app is a slick, intuitive interface for setting up the show and mixing live from your iPad, and there’s also a customisable Qu-Control app that lets you choose just a few essential controls that you really need in front of you for easy access during the show.
Couple these with the Qu-You personal monitoring app for Android / iOS and Qu-SB is a fantastic choice if you’re mixing your own monitors and want to get the same great sound wherever you play.
With all of your settings saved and ready, plus multi-track recording and playback of previous shows for virtual soundchecks, you’ll be all set to play in record time.
On top of the 18 on board inputs and 14 outputs, Qu-SB has you future-proofed with plug n’ play expansion up to 38 inputs / 24 outputs via a family of remote AudioRacks.Qu-SB Mixing Apps
Having massive processing power and advanced functionality is great, but it counts for nothing if you can’t access the controls you need in a heartbeat.
Qu-SB is designed to integrate seamlessly with the fully-featured Qu-Pad iPad app, providing super-fast, easy access to all settings, including channel processing, meters and RTA views, FX racks, scene management, USB audio control, setup menus and much more.
Qu-Pad gives you instant access to all live mixing parameters and frees you to EQ and mix monitors on stage, roam around the venue whilst adjusting the PA, and mix the show from on-stage or the heart of the audience by connecting to the mixer over Wi-Fi More info.
Qu-You allows up to seven performers to control their own monitor mixes using any iOS or Android device, and frees up the engineer to focus on mixing for the audience. More info.
Qu-Control is a customisable iOS app providing a simple interface for non-technical users to control the essential parameters of Qu mixers when technical operators are not around. More info.
Qu Apps require the connection of a Wi-Fi router or access point to the mixer’s Network port.
Qu-SB’s sixteen AnalogiQTM total recall preamps feature zero crossing detection and an advanced padless 1dB step gain stage, closely allied to the DSP for optimal gain accuracy and audio transparency. The analogue signal is captured by high class, low latency 24bit analogue to digital converters matched to high quality 24bit digital to analogue converters to deliver the required outputs. The AnalogiQTM design has been refined over many months to offer superb transparency, minimal distortion and an ultra-low noise floor, with a warm, musical sound that is missing from some digital consoles.
Allen & Heath has teamed up with leading microphone manufacturers and top engineers at Audio-Technica, Sennheiser, and Shure to provide EQ Library presets for a large number of popular and industry standard microphones. Presets for vocals, electric guitar, acoustic guitar, drums, brass and woodwind have been painstakingly crafted to offer you the best possible starting point for the source and your microphone of choice. Whether you’re a keen amateur or a seasoned professional, you can get to work quickly and easily, saving valuable time so you can concentrate on EQ’ing the source and room acoustics.Features

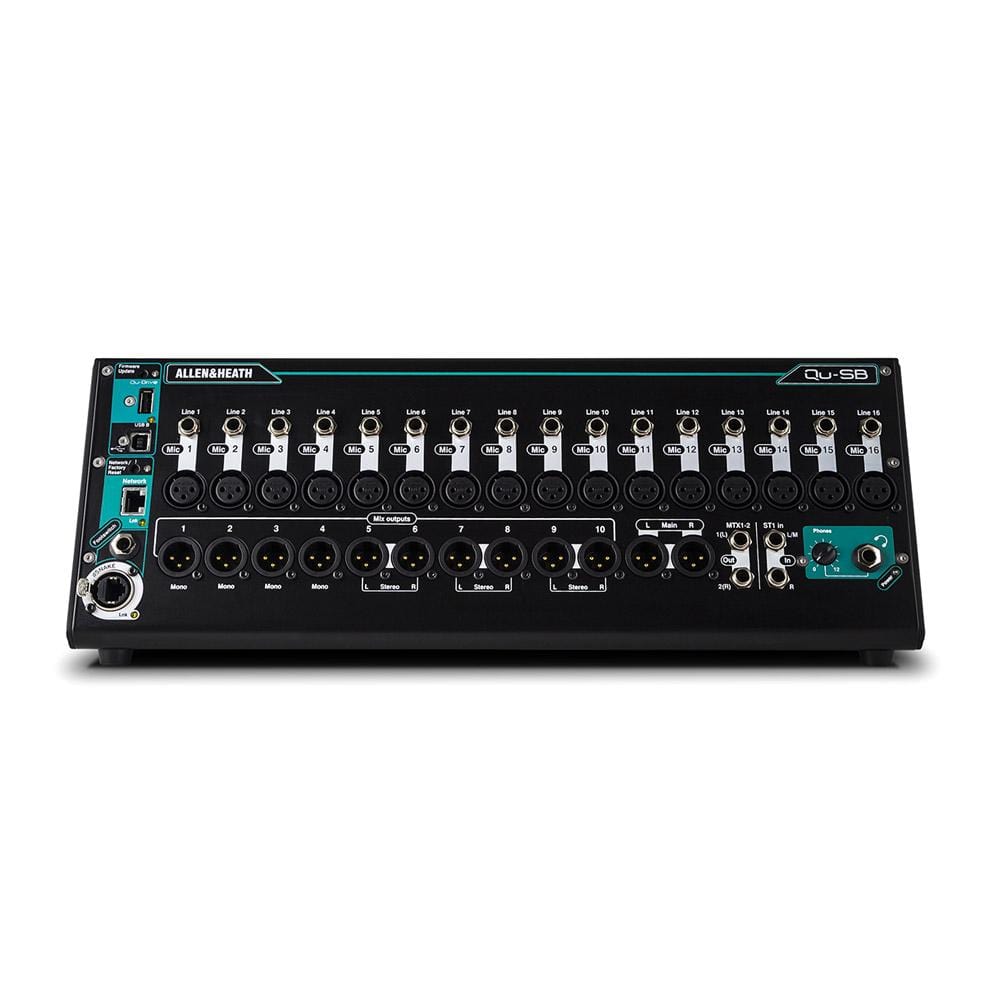

- 16 local Mono Mic/Line Inputs (TRS + XLR)
- Recallable AnaLOGIQTM Preamps
- 1 Stereo Input (TRS)
- 12 local Mix Outputs (XLR)
- 1 Stereo Output (TRS)
- Expandable up to 32 input, 24 out using dSNAKE AudioRack
- Up to 11 Monitor Mixes (4 mono + 7 stereo)
- 4 Stereo Groups (switchable to Mix mode)
- 4 FX Engines
- 4 dedicated FX Sends / Returns
- 4 Mute Groups
- 4 DCA Groups
- 32×32 USB Audio Interface
- Qu-Drive Multitrack Recording / Playback direct to USB device
- dSNAKETM Remote Audio Port
- Qu-Pad fully-featured iPad App
- Qu-You iPhone / Android personal monitoring app
- Qu-Control customisable iOS app for simple wireless control
- Trim, polarity, HPF, gate, insert, 4-band PEQ, compressor, delay on all Inputs
- Insert, 4-band PEQ, 1/3 octave GEQ, compressor, delay on all Outputs
- Automatic Mic Mixer
- Channel Ducker on all Inputs
- ProFactory Mic Presets
- RackFX Library
- Built-in Signal Generator
- RTA with Peak Band indication
- DAW MIDI Control
- Compatible with ME Personal Mixing System
- 19” Rack Mountable with optional rack ears
- AR2412 – 24 inputs, 12 outputs AudioRack with dSNAKE connection and expansion port for personal monitoring.
- AR84 – 8 inputs, 4 outputs AudioRack with dSNAKE connection.
- AB168 – Portable, rugged 16 inputs, 8 outputs stagebox with dSNAKE connection and expansion port for personal monitoring.
- AH9650 – 100m drum of EtherFlex Cat5 with locking Neutrik EtherCon connectors.
- AH9981 – 50m drum of EtherFlex Cat5 with locking Neutrik EtherCon connectors
- AH9651 – 20m of Neutrik EtherFlex Cat5 with locking Neutrik EtherCon connectors.
- QU-SB-RK19X – Rack mounting kit for Qu-SB.
