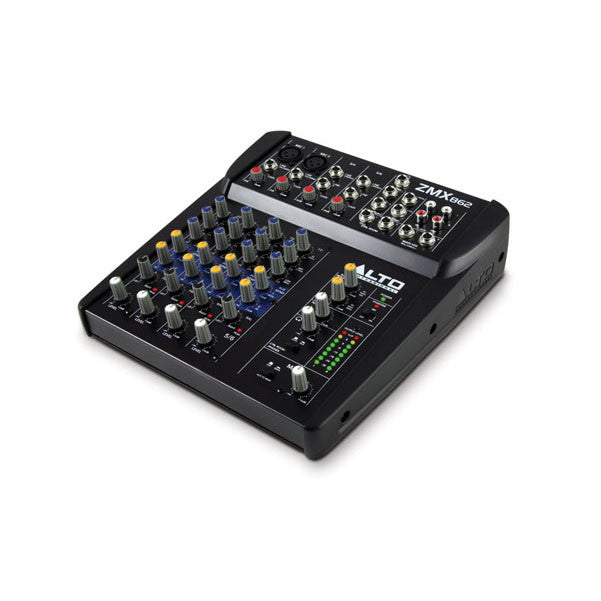

Alto ZMX862 6-Channel Compact Mixer


Shop Brand : Alto
Shop All: Analog Mixers
SKU : ALTOZMX862

  • Alto ZMX862 6-Channel Compact Mixer

    Professional-Grade Mixing With a Small Footprint

    The ZMX862 is a 6-channel, 2-bus mixer with the right amount of inputs, outputs, routing, and EQ for more intimate live performance reinforcement situations. Features two microphone inputs, each with with Phantom Power, the ZMX862 also has a three-band EQ, two aux sends per-channel for external effects and monitoring, and even two track inputs for things such as audio playback. The ZMX862 is a perfect, take-anywhere professional mixer.

    Versatile Inputs and Outputs

    The ZMX862 is a step up from our massively popular ZMX52 that adds more inputs and an extra band of EQ as well as a switch for phantom power. Not only can you plug dynamic, condenser, and wireless microphones into the first two channels, you also get two stereo channel inputs for keyboards, drum machines, and other instruments. Plus, you can easily plug in your MP3 player, CD player, or audio from a DVD player into the CD/TAPE inputs. But, you also have two AUX sends that you can use to send streams of audio from your mixer to a digital effects unit, stage monitor, or any number of destinations. Choose the ZMX862 as the audio central command for your live performances, home studio, or video suite and be ready for any audio curveball.

    High Headroom, Low Noise


    Just because the ZMX862 is compact, portable and affordable doesn't mean you have to make sacrifices. This compact mixer brings the same standard of quality to your performances as our top-of-the-line models. All Alto Professional ZMX mixers are designed with high headroom and ultra low-noise, discrete mic preamps so you always get the full dynamic range of your mix every time. Pristine sound. No compromises.

    Visualize Your Mix

    We designed every ZMX mixer with your performance in mind. Sometimes venues are dark and it can be hard to see what you're working with. Alto Professional solves this problem by not only color coding each section of the mixer, but also by using brightly colored knobs so that you can easily find what you need to adjust before you ever lay a finger on the mixer. Our blue, red, yellow and white pots are instantly easy to identify in dim lighting. LED indicators for output level, peak, and phantom power also assist in making sure that you have multiple visual cues that compliment everything you're hearing.

    Features:

    • 12 total inputs including XLR jacks w/ phantom power on ch. 1 & 2
    • Expanded channel count perfect for small groups or sub-mixes
    • High headroom circuitry offering extra dynamic range
    • Ultra-low-noise discrete mic preamps
    • 2 aux sends per channel for external effects and monitoring
    • 3-band EQ on each channel
    • Two stereo input channels with balanced TRS jacks
    • Aux inputs/outputs for external audio source integration
    • Switchable phantom power

    Technical Information:

    • Input Channels: Mono channels (Ch. 1 - 2)
    • Microphone Input: Electronically balanced, discrete input configuration
    • Frequency Response: 20 Hz to 22 kHz, +/-1 dB
    • Distortion (THD&N): ≦0.005% at +4 dBu, 1 kHz
    • Gain range: 0 dB to 50 dB (Mic)
    • Maximum Voltage Gain: 70 dB Ch. Mic Input→Main MIx out & Tape out, 80 dB Ch. Mic input→Control room & Phones, 60 dB Ch. Mic input→Aux send
    • SNR (Signal to Noise Ratio): ≧110 dBu
    • Phantom power (Mic Pin 2 / Pin 3 and Pin 1): +48 V - with switch control
    • Line Input: Electronically Balanced
    • Frequency Response: 20 Hz to 22 kHz, +/-1 dB
    • Distortion (THD&N): ≦0.005% at + 4 dBu, 1 kHz
    • Gain Range: 15 dBu to 35 dBu

    Stereo Channels: (Ch. 3 - 6)

    • Line Input: Electronically Balanced
    • SNR (Signal to Noise Ratio): ≧110 dBu
    • Frequency Response: 20 Hz to 22 kHz, +/-1 dB
    • Distortion (THD&N): ≦0.005% at + 4 dBu, 1 kHz
    • Gain range: -20 dBu to +20 dBu, 60 dB Ch. Line → Main Mix out
    • Maximum Voltage Gain: 20 dB FX return → Main Mix out, 20 dB RCA Tape input → Main Mix out


    Impedance

    • Microphone Input: 3.9 kOhms
    • All Other Inputs: 10 kOhms or greater
    • Tape Out: 1 kOhms
    • All Other Outputs: 120 Ohms


    Equalization

    • Mono Channels: High ±15 dB @ 12 kHz, Mid ±15 dB @ 2.5 kHz, Low ±15 dB @ 80 Hz
    • Stereo Channels: High ±15 dB @ 12 kHz, Mid ±15 dB @ 2.5 kHz, Low ±15 dB @ 80 Hz


    Main Mix Section

    • Tape, Aux, Phones Output
    • Output level: 0 dBu Unbalanced, 1/4" jacks, Max out +22 dBu Unbalanced, 1/4" jacks noise (Bus Noise): ≦-90 dB @ 20 Hz - 22 kHz (channel & Main level at 0 dB, other at minimum, DSP mute)

    Specifications:

    • Power supply: 18 V, 1500 mA
    • Rated Power Consumption: 18 W
    • Dimensions (WxLxH): 202mm x 250mm x 58mm
    • Weight: 3.75 lb
