Antelope Audio GOLIATH Thunderbolt, USB & MADI Audio Interface with 16 Mic Pres

Antelope Audio GOLIATH Thunderbolt, USB & MADI Audio Interface with 16 Mic Pres Overview: The most powerful audio interface on the market Offering the biggest number of I/O’s available on the market, Goliath is the result of Antelope’s 20+ years of experience in digital audio, innovative clocking technologies and analog circuit design Connectable via blazing-fast Thunderbolt, USB & 2 x MADI, Goliath houses a total of 36 analog ins and 32 analog outs, providing digital clarity and analog realism like no other audio interface out there.

Antelope’s most powerful audio interface comes with an array of hardware-based audio effects, among which vintage guitar amps & cabs, AuraVerb reverb, legendary EQ and compressor emulations, plus our world-renowned Acoustically Focused Clocking technology THE SOUND YOU HAVE ALWAYS DREAMED OF Flawless clocking and unique analog circuitry brings pro sound to a new level.

At Antelope Audio we love to say that best clock = best sound So, no surprise that our 4th generation of Acoustically Focused Clocking jitter management algorithms (AFC) is in charge of Goliath’s flawless clocking.

The audio interface features the oven-controlled crystal oscillator you know from Antelope’s signature crystal-based master clocks For optimum detail and sound stage, Goliath can be additionally synced to the extremely accurate Rubidium Atomic Clock – 10MX, and it can also be used as a master clock for two other devices via Word Clock Outs on BNC.

PROCESS MULTIPLE ZERO LATENCY MIXES Get crazy creative with Goliath’s custom hardware-based effects Antelope’s new RealModel technology recreate not only the true sound of classic analog gear but its behavior and feel as well Stacks of effects can be combined in custom FX Chains and saved as Presets.

All our guitar amp and cabs simulations were developed in a partnership with leaders in guitar software Overloud Audio Tools, so we know guitar players will just love Goliath 64 CHANNELS VIA THUNDERBOLT can be routed to a vast selection of digital and Analog I/O options, including MADI, AES, ADAT, and S/PDIF.

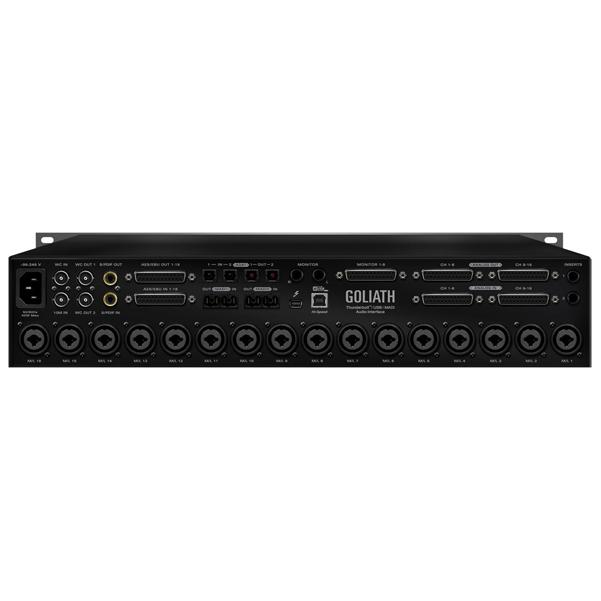

Goliath offers 36 Analog Inputs and 32 Analog Outputs with pristine AD/DA converters These include 4 superb Instrument DI’s, 2 transformer Reamp Outs, 2 Headphone Outs with integrated Talkback on the front, 16-Channels of Class-A Mic Preamps, 2 sets of Stereo Inserts and a pair of mastering grade Monitor Outs on the back.

The DB25 connectors feature 24 Outputs (1-8 can be level controlled for Surround Sound Mixing) and 16 additional Line Inputs, making Goliath an attractive solution for Hardware Inserts and Summing Even more Analog I/O Channels can be added by connecting Antelope’s Orion32 or Orion32+ via MADI for a total of 64 Channels of Analog I/O simultaneously.

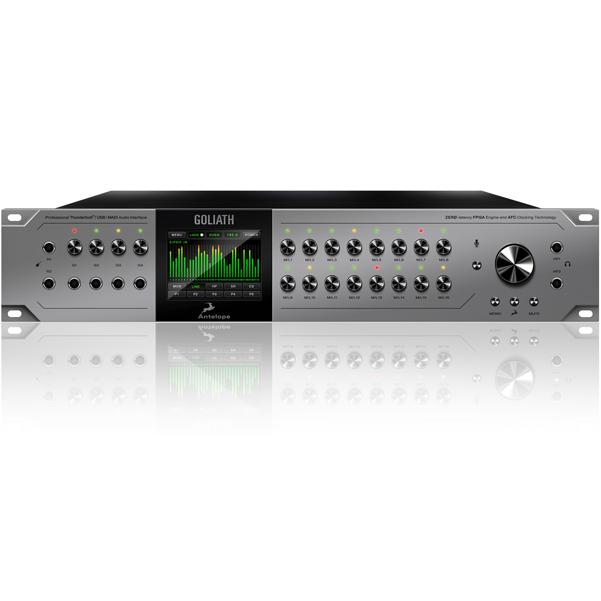

TOUCH & CONTROL Reinvent your studio experience with Goliath’s advanced control options All Goliath functions are accessible via its intuitive, high-resolution touch screen.

All features of the audio interface can be also accessed via the OS X and Windows compatible Software Control Panel Just like all new breed Antelope Audio devices.

the Goliath follows our networking control concept This means you can now access all Goliath features from multiple computers in the same network.

CONTROL YOUR BEAST Have no fear, this beast is kept well under control We have prepared a Remote Control App for Android and Apple users.

So now you can take your recording experience further Features: 16 MIC PRES 16 Class-A Mic preamps.

Hi-Z, Mic & Line ins ZERO LATENCY 64 channels I/O simultaneous streaming, multiple mixers and effects processing PRO GUITAR EFFECTS Hardware-based effects for next level guitar amp modeling PRISTINE AD/DA 24-bit, 192 kHz audio and Antelope Audio’s signature pristine conversion 64-BIT ACOUSTICALLY FOCUSED CLOCKING 4th Generation Antelope Audio jitter management technology CONVENIENT CONTROL Intuitive desktop and mobile apps and front panel touch screen Specifications: ANALOG Analog Inputs 16 x Line inputs on two D-SUB 25, +20 dBu max, 11.2 kOhms 16 x Mic / Line universal inputs on XLR combos on the rear (first 4 can be used for instruments also) 4 x Instrument (HiZ) inputs on TRS 1/4 jacks on front Analog Inserts 2 x Inserts on TRS 1/4 jacks (dedicated to rear universal inputs 1, 2) Analog Outputs 24 x Line outs on three D-SUB 25, +20dBu, 56 Ohms 1 x Monitor out on 2x TRS 1/4 jacks 2 x Stereo Headphone outs on TRS 2 x ReAmp outs on TRS D/A Monitor Converter Dynamic Range: 129 dB THD + N: -108 dB D/A Converter Dynamic Range: 120 dB THD + N: -107 dB A/D Converter Dynamic Range: 120 dB THD + N: -110 dB Mic Preamp Gain: 0, 10 – 65 dB THD + N: -108 dB DIGITAL Digital Inputs 2 x Fiber Optic MADI (up to 64CH each) 2 x ADAT (up to 16CH) 8 x AES/EBU on D-SUB 25 (16CH) 1 x S/PDIF Digital Outputs 2 x Fiber Optic MADI (up to 64CH each) 2 x ADAT (up to 16CH) 8 x AES/EBU on D-SUB 25 (16CH) 1 x S/PDIF USB I/O USB 2.0 Hi-Speed; Data stream up to 480 Mbits/192kHz, 32 channels I/O, Type B Thunderbolt I/O 1 x Thunderbolt, 64 channels I/O CLOCKING Word Clock Input 1 x Input @ 75 Ohms 3Vpp on BNC 32 – 192kHz Word Clock Outputs 2 x Outputs @ 75 Ohms 3Vpp on BNC 32 – 192kHz Thunderbolt Atomic Clock Input 1 x 10M Input @ 75 Ohms 1Vpp on BNC Clocking System 4th Generation Acoustically Focused Clocking 64-bit DDS Oven Controlled Crystal Oscillator Clocking Stability <+/-0.02 ppm, oven controlled at 64.5°C/ 148.1°F Clock Aging <1 ppm per year Clock Calibration <+/-0.001 ppm Sample Rates 32, 44.1, 48, 88.2, 96, 176.4, 192 (kHz) OTHER Operating Temperature 0-50°C/32-122°F Weight 6.8 kg/ 15 lbs (approx) Dimensions (Approx.) Width: 48 3mm / 19” Height: 81 mm / 3.2” Depth: 279 mm / 11” Electrical specs AC Universal input: ~95-245 V Power Consumption: 40 Watts Max In the box Goliath – ThunderboltTM and USB AD/DA Interface Owner’s Manual 1 AEC Power cable 1 USB cable System requirements WINDOWS OS: Windows 7/8/8.1/10 Disk Space: Minimum 512 MB available disk space USB: 1x USB 2.0 Port Required USB bandwidth: 80%-90% CPU: Intel or AMD equivalent CPU with at least 2GHz operating frequency Memory (RAM): 4GB Minimum (8GB or more Recommended) MAC OS X: 10.9/10.10/10.11/10.12 (Sierra Recommended) Disk Space: Minimum 512 MB available disk space USB: 1x USB 2.0/3.0 Port Thunderbolt: 1x Thunderbolt/USB-C Port Required USB bandwidth: 80%-90% Memory(RAM): 4GB Minimum (8GB or more recommended) CPU: Intel Core 2 Duo (Minimum) Intel Core i3 or higher (Recommended).
