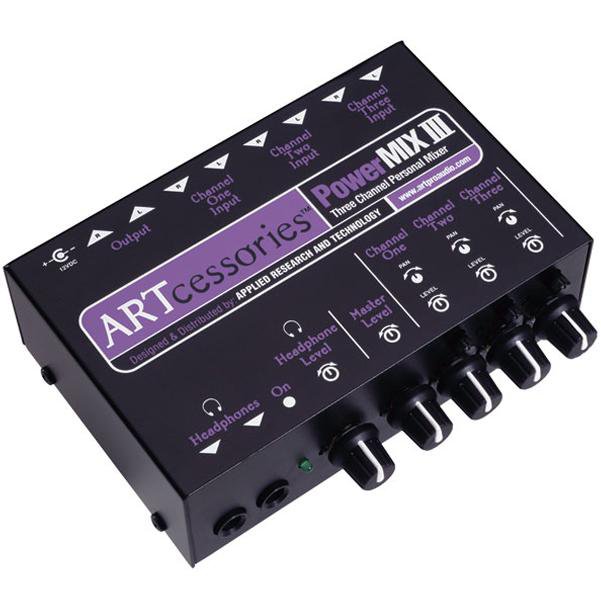

ART PowerMIX III Three Channel Personal Stereo Analog Mixer

ART PowerMIX III Three Channel Personal Stereo Analog Mixer Overview: Problem: How do you connect a CD player, a synthesizer and the line output from a bass amp to a tape deck? Solution: Use a simple stereo mixer The PowerMIX III can accept either mono or stereo signals and mixes them down to stereo or identical L/R mono signals.

Additionally, the PowerMIX III provides a headphone output with its own level control Usage: 1.

Plug the AC adapter into the 12V DC input on the PowerMIX III and plug the other end into a 120V AC wall socket 2.

Plug your stereo signal sources into the separate L/R Inputs on channels 1 to 3 Mono sources can be plugged into the Left Input on any channel.

It is not recommended that you connect 2 mono sources to any one channel Specifications: Maximum Gain: +27dB Input Impedance: 10k Ω Maximum Input Level: +30dB Maximum Output Level: +13dB Output Impedance: 100 Ω Total Harmonic Distortion: > 0.005% Adapter: included Power: 12V DC Dimensions: 5.625x3.75x1.75 inches (143mmx92mmx45mm) Weight: 1.3 lbs (590g).
