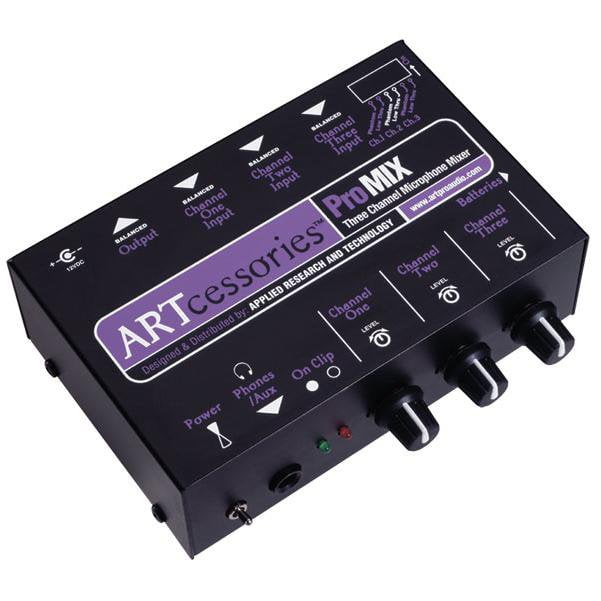

ART ProMIX Three Channel Microphone Mono Analog Mixer

ART ProMIX Three Channel Microphone Mono Analog Mixer Overview: Problem: You need to add 3 mics to a mixer, which only has one available channel Solution: Insert a ProMIX between the mics and the mixer.

Each mic channel on the ProMIX has both phantom power and low-frequency cut selectable via DIP switches plus a level control The balanced XLR line output can be connected to a mic input on the mixer and headphones or a powered monitor can be connected to the Phone/Aux output.

And if AC power is not available, the ProMIX runs on batteries as well Specifications: Maximum Gain: +60dB Input Impedance: 600 Ω Maximum Input Level: -14dB Maximum Output Level: +14dB Output Impedance: 600 Ω Total Harmonic Distortion: 0.0002 Low Cut: -3dB @ 100Hz Clip Headroom: 3dB Output Phantom Power: 12V DC Power: 12V DC (adapter) / 2x 9V (batteries) Dimensions: 5.625x3.75x1.75 inches (143mm x 92mm x 45mm) Weight: 1.5lb (680g).
