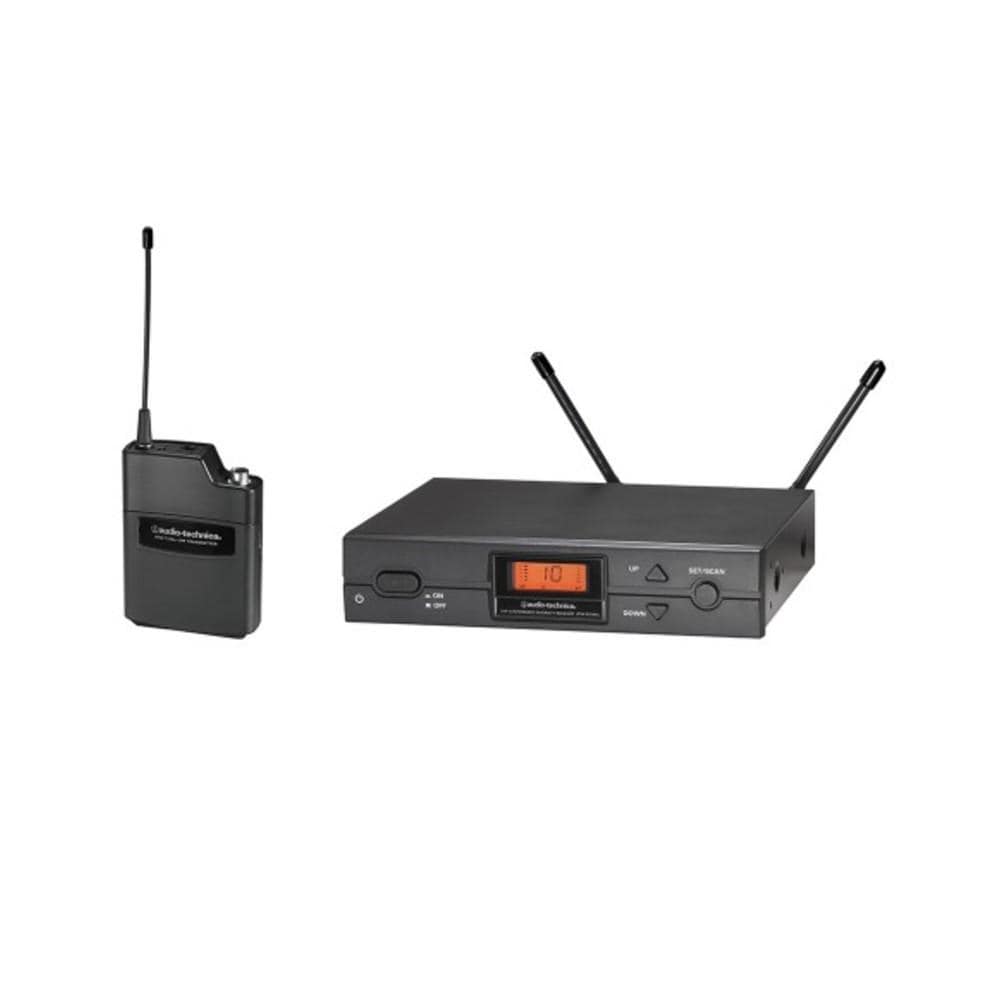

Audio-Technica ATW-2110b 2000b Series UniPak System

Audio-Technica ATW-2110b 2000b Series UniPak System Overview: Audio-Technica’s second generation of the well known 2000 Series now offers increased RF power on both the handheld and beltpack transmitters for increased link stability Charging contacts on the transmitters allow easy operation with rechargeable batteries.

The 12VDC bias voltage on both BNC antenna inputs allows operation with the ATW-B80 antenna booster or other active components.With this breakthrough series, Audio-Technica makes easy setup, automatic scanning and other advanced wireless features affordable as never before Automatic frequency scanning - standard on all 2000b Series wireless receivers - finds and sets the best available channel at the touch of a button.

For those using multiple wireless systems simultaneously, the 2000b Series offers another ease-of-use feature: any of its 10 channels may be used together - eliminating confusing frequency groups and other frequency-coordination problems Features: Automatic frequency scanning finds an open channel at the touch of a button Up to 10 user selectable channels are available Compatibility varies from country to country True Diversity operation selects the better signal from the two receiver sections, reducing dropouts Tone Lock™ squelch function fights interference Rugged metal half-rack receiver with soft-touch controls and LCD display featuring RF and AF metering Ground-lift switch helps eliminate audible hum caused by ground loops between the sound system and receiver Specifications: Overall System Operating Frequencies UHF band: 656.125 – 678.500 MHz (D Band); 854.900 – 864.900 MHz (F Band); 487.125 – 506.500 MHz (I Band); 606.500 – 631.000 MHz (U Band) Number Of Channels 10 total Frequency Stability ±0.005%, Phase Lock Loop frequency control Modulation Mode FM Frequency Response 100 Hz to 15,000 Hz Operating Range 100 m (300') typical Operating Temperature Range 41° F (5° C) to 113° F (45° C) Receiver Receiving System True Diversity Image Rejection 55 dB nominal, 50 dB minimum Signal-To-Noise Ratio >100 dB at 40kHz deviation (A-weighted), maximum modulation 40 kHz Sensitivity 20dBµV (S/N 60dB at 5 kHz deviation, IEC-weighted) Total Harmonic Distortion ≤ 1% (at 1 kHz, ±20 kHz deviation) Audio Output Attenuator (ATTN) Unbalanced: 25mV (100k ohms load), 1/4" phone jack Balanced: 50mV (Attenuator; 0dB) 12.5mV (Attenuator; -12dB) at 1 kHz ± 5kHz deviation, 100k ohm load, XLRM-type Antenna Input BNC-type 50 Ω – Bias voltage 12V DC, 60mA each Dimensions 210 mm x 44 mm x 162.2 mm (W x H x D) Weight 1.0kg Accessories Included Two flexible UHF antennas, rack mount adapters, AC adapters Belt Pack RF Power Output High: 30mW; Low: 10mW, nominal Spurious Emissions According to National Regulations Battery Type 1.5V AA alkaline or rechargeable AA NiMH (not included) Current Consumption 150 mA typical Battery Life Approximately 9 hours (low), 7 hours (high) Dimensions 66 mm x 92.3 mm x 22.5 mm (W x H x D) Net Weight 80g.
