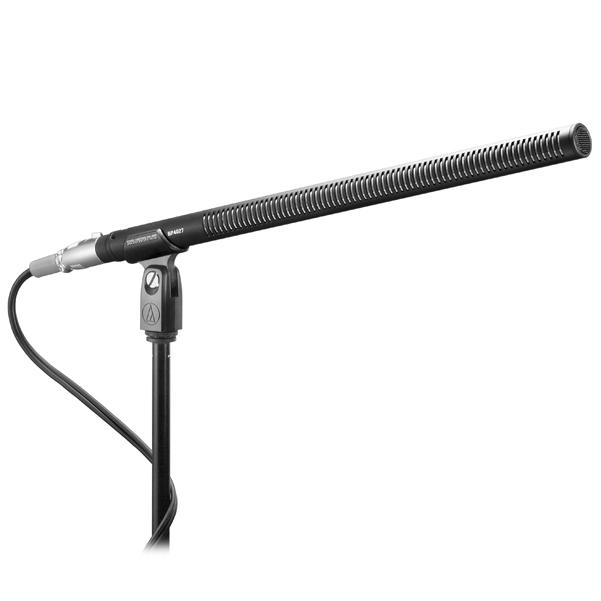

Audio-Technica BP 4027 Stereo Shotgun Condenser Microphone

Audio-Technica BP 4027 Stereo Shotgun Condenser Microphone Overview: Based on models originally developed for use in the broadcast of the Sydney Games in 2000, the BP4027 (14.96" long) Stereo Shotgun model is engineered for high-end broadcast and production use This mcrophone features independent line-cardioid and figure-of-eight elements configured in an MS (Mid-Side) arrangement with switch-selectable internal matrixing.

This innovative microphone allow sound recordists the choice of selecting a left-right stereo output (wide or narrow) via the microphone’s internal matrixing system or choosing discrete Mid-Side signals for later manipulation, a flexibility not available from any other manufacturer A switchable low frequency roll-off filter helps minimize the pickup of unwanted low frequency noise.

These phantom-powered models feature a rugged lightweight design and sleek black color scheme, perfect for on-camera use Features: <\n \n Designed for broadcasters, videographers and sound recordists \n Compact, lightweight design is perfect for camera-mount use \n Independent Line-cardioid and Figure-of-eight condenser elements \n Switchable low-frequency roll-off \n Switch selection of non-matrixed M-S mode and two internally-matrixed left/right stereo modes \n Includes a 0.61 m (24") cable (5-pin XLRF to two standard 3-pin XLRM connectors) RoHS compliant - free from all substances specified in the EU directive on hazardous substances Specifications: ELEMENTS: Fixed-charge back plate, permanently polarized condenser POLAR PATTERNS: Line-cardioid, Figure-of-eight FREQUENCY RESPONSE: 30-20,000 Hz LOW FREQUENCY ROLL-OFF: 80 Hz, 12 dB/octave OPEN CIRCUIT SENSITIVITY: Mid: -30 dB (31.6 mV) re 1V at 1 Pa; Side: -34 dB (19.9 mV) re 1V at 1 Pa; LR Stereo: -36 dB (15.8 mV) re 1V at 1 Pa IMPEDANCE: 200 ohms MAXIMUM INPUT SOUND LEVEL: Mid: 123 dB SPL, 1 kHz at 1% T.H.D.; Side: 127 dB SPL, 1 kHz at 1% T.H.D.; LR Stereo: 126 dB SPL, 1 kHz at 1% T.H.D.

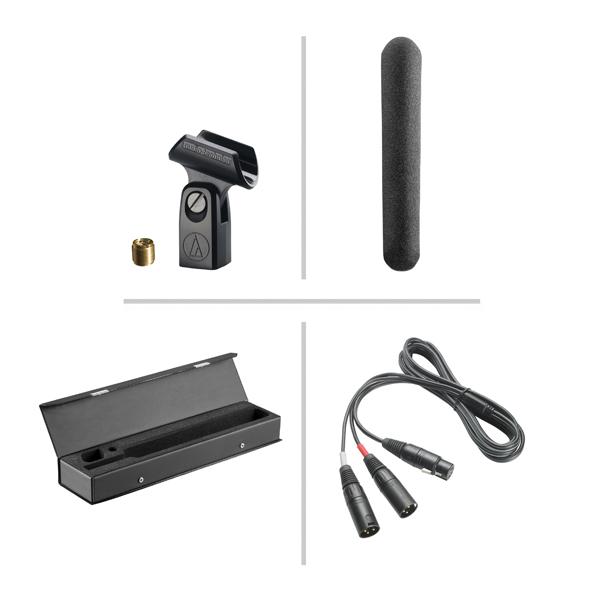

DYNAMIC RANGE (typical): Mid: 101 dB, 1 kHz at Max SPL; Side: 101 dB, 1 kHz at Max SPL; LR Stereo: 102 dB, 1 kHz at Max SPL SIGNAL-TO-NOISE RATIO: Mid: 72 dB SPL, 1 kHz at 1 Pa; Side: 68 dB SPL, 1 kHz at 1 Pa; LR Stereo: 70 dB SPL, 1 kHz at 1 Pa PHANTOM POWER REQUIREMENTS: 11-52V DC, 4 mA typical at 48V, each channel SWITCHES: M-S, LR Stereo-Wide (LR-W), LR Stereo-Narrow (LR-N); Flat, roll-off WEIGHT: 142 g (5.0 oz) DIMENSIONS: 380.0 mm (14.96") long, 21.0 mm (0.83") diameter OUTPUT CONNECTOR: Integral XLR5M-type CABLE: Dual 0.61 m (24") shielded two-conductor, terminated in two XLR3M-type connectors \n ACCESSORIES FURNISHED: AT8405a stand clamp for 5/8"-27 threaded stands; AT8135 foam windscreen; 5/8"-27 to 3/8"-16 threaded adapter; protective carrying case AUDIO-TECHNICA CASE STYLE: SG3.
