BAB-AT312MK3
Description

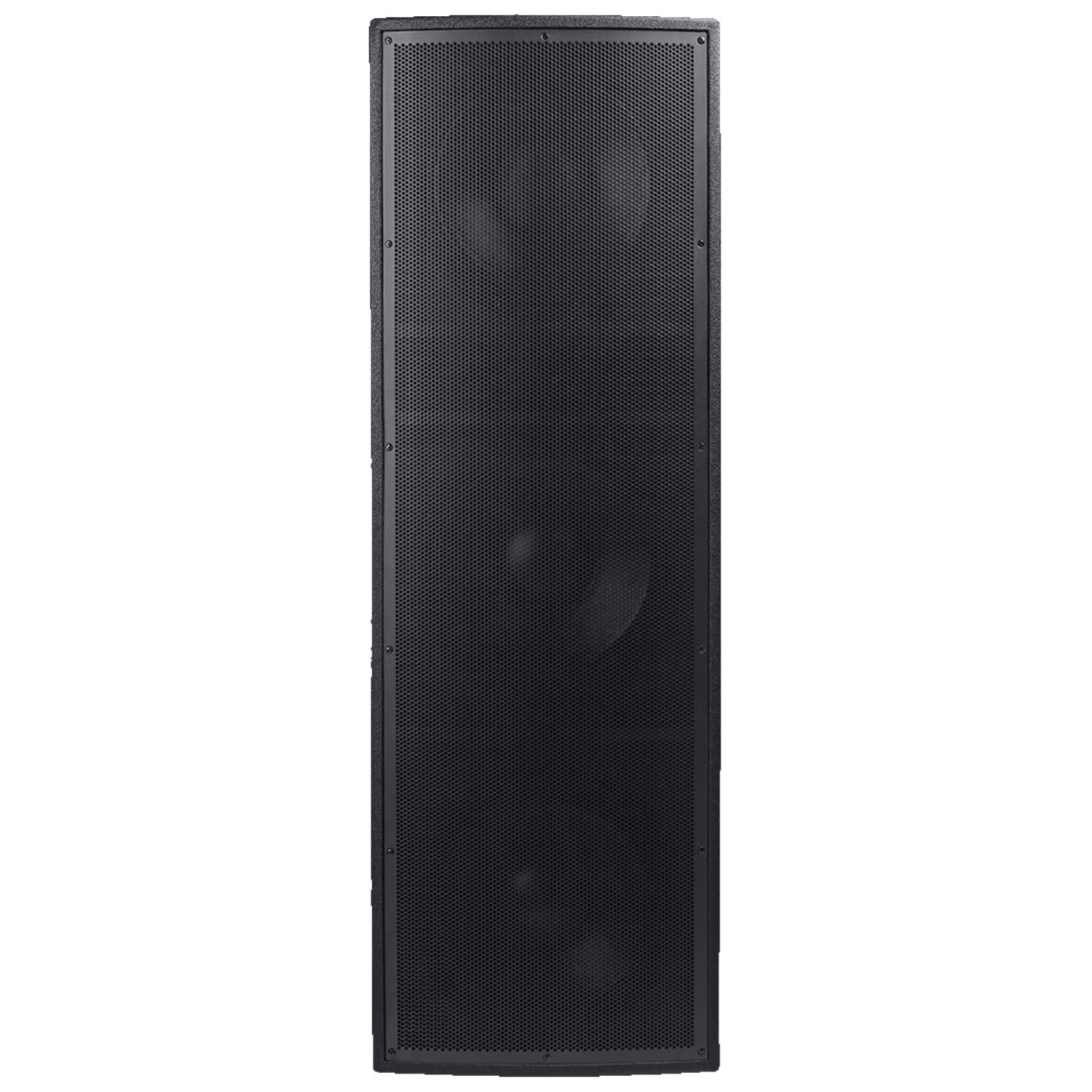

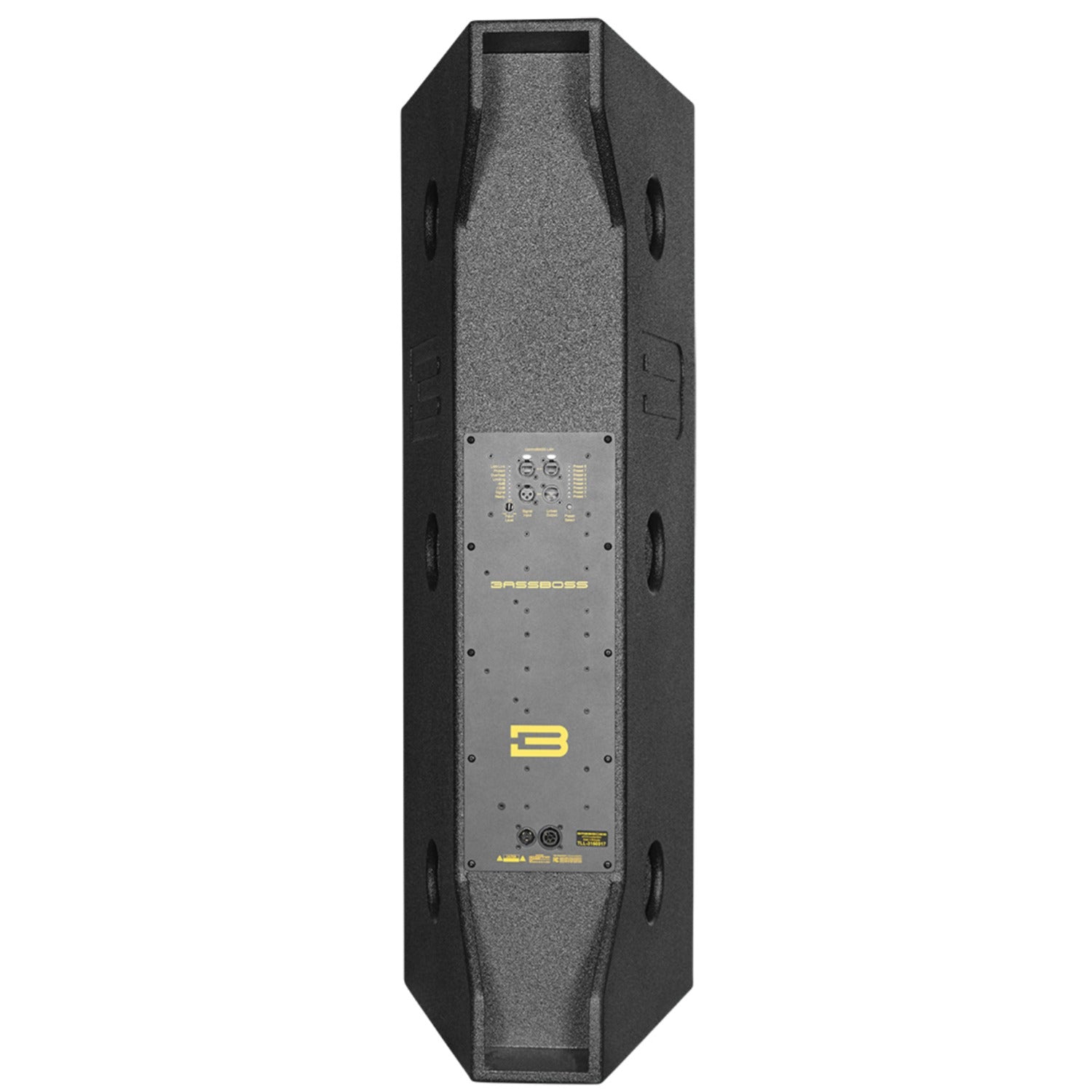

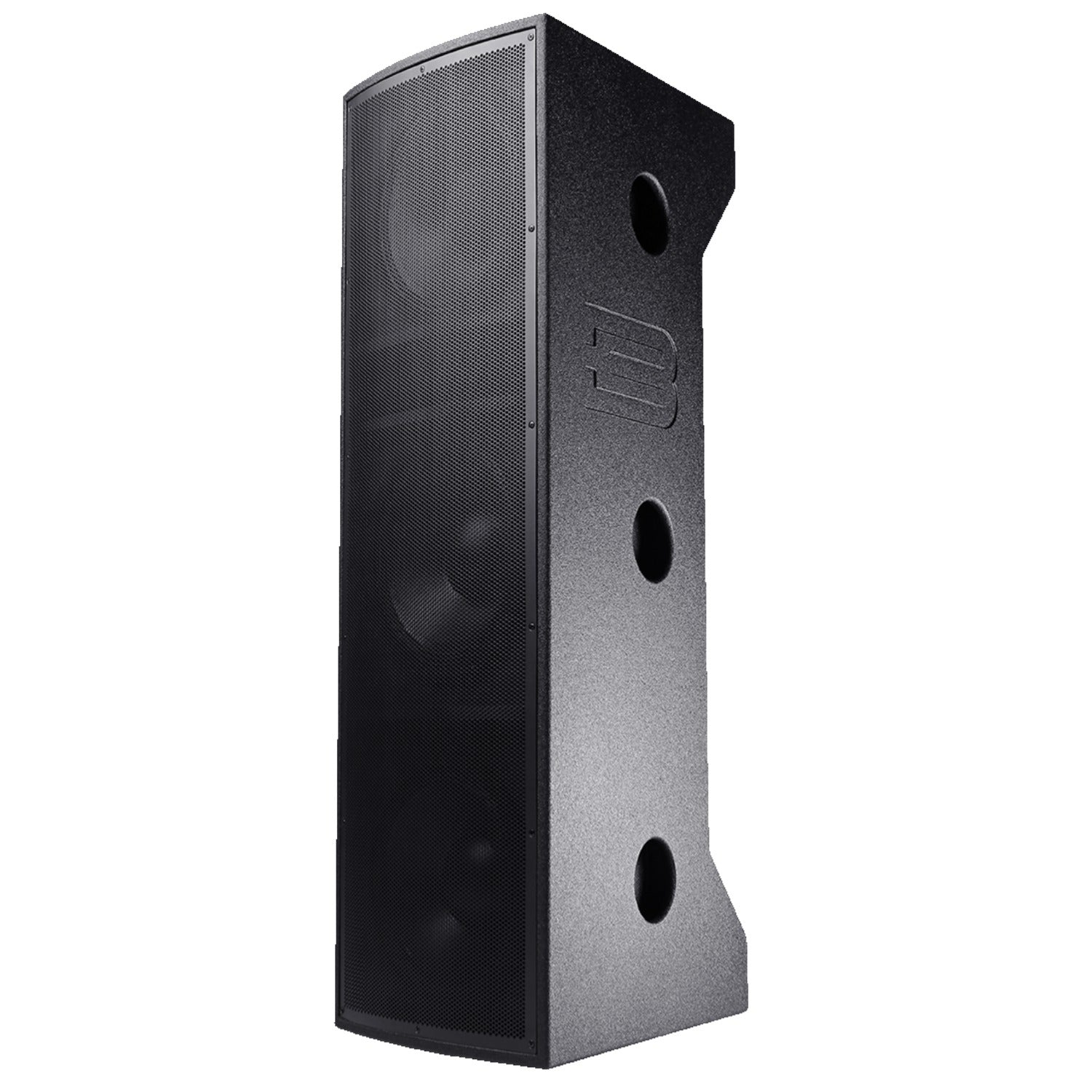

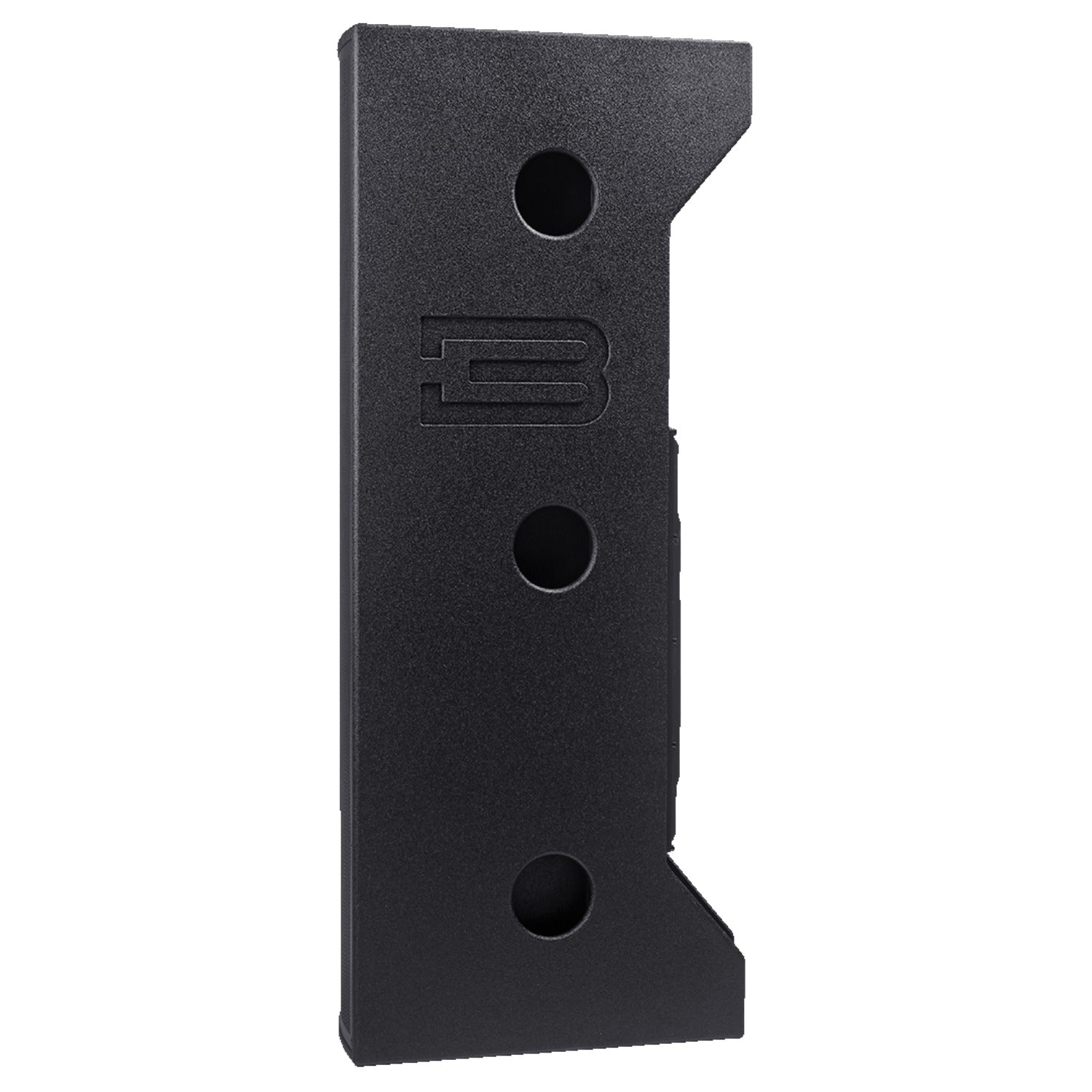

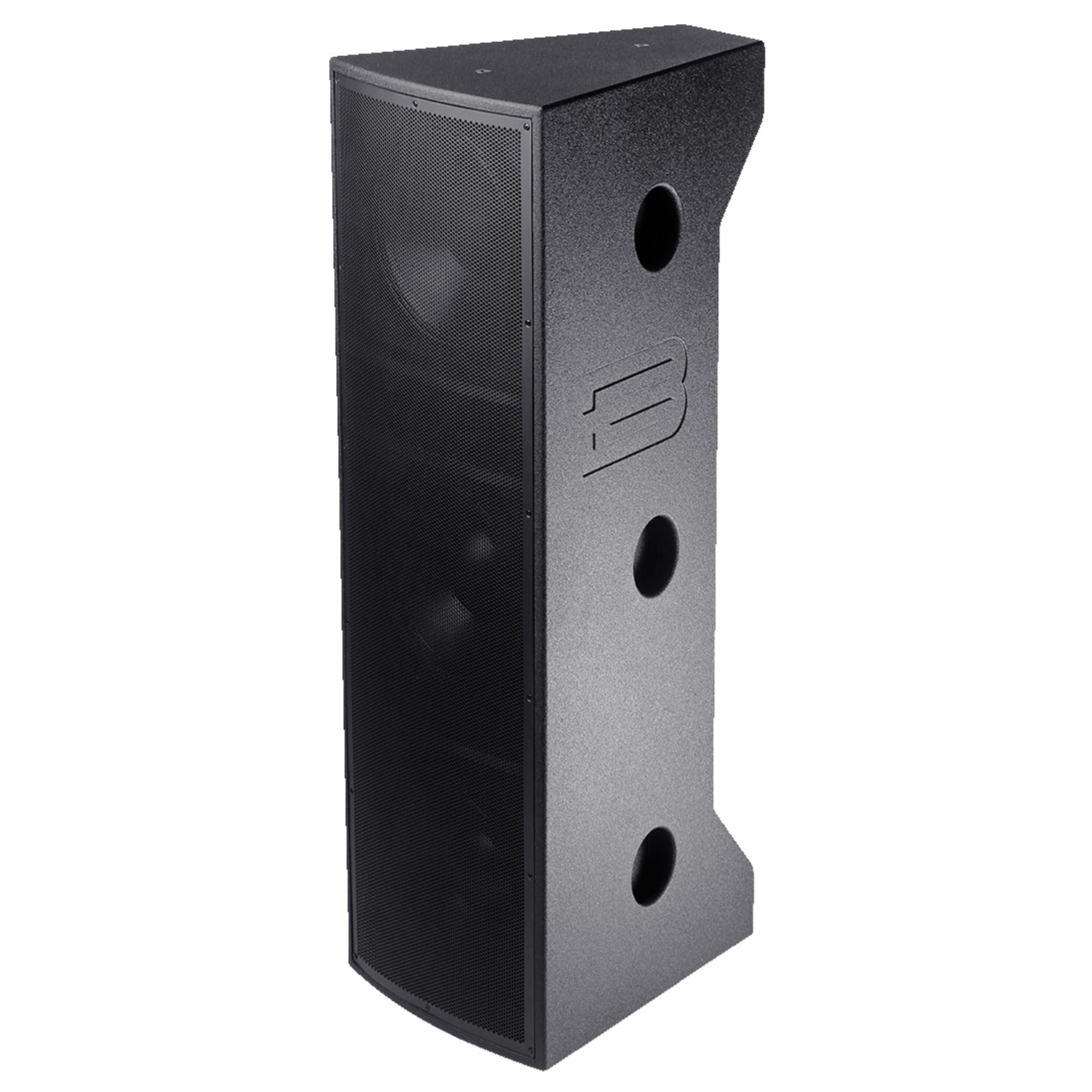

Bassboss AT312-MK3 Triple 12" Loudspeaker Overview: Reference-monitor sound for high-end productions and destination venues. Sophisticated Sound You think "compromise" is a dirty word. You listen. You hear. You have very high standards. Tear Inducing Clarity Take the best of hi-fi sound quality, combine that with studio reference monitor accuracy, and add the power to cover a dance floor or a small festival stage. Hello, AT312-MK3.
All the Advantages By building a speaker that's as close as possible to the theoretical ideal of a single, infinitely small point, the AT312 offers resolution and imaging that will fool your senses. So real you'll look behind you. So detailed you'll cry. So powerful you'll need to share. Just add Subs This is a 3-way Active co-axial point-source loudspeaker with 4000W of amplification.
Two 12" neodymium woofers with 4" voice coils handle the lows. The mids and highs are provided by a neodymium co-axial 12" woofer and tweeter combination. Comprehensive processing ensures perfect alignment. Power of MK3 MK3 Amp Update There are all-new amplifiers in the MK3 series. Total power has increased, however power allocated to woofers increased substantially. The higher output voltages provide more impact.
Specs
This product
Bassboss AT312-MK3 Triple 12" Loudspeaker
Bassboss
Rs. 660,759
|
Bassboss AT212-MK3 Dual 12" Loudspeaker
Bassboss
Rs. 600,635
|
Bassboss MFLA-MK3 Dual 12" Line Array
Bassboss
Rs. 841,130
|
Bassboss DV12-MK3 Single 12" Loudspeaker
Bassboss
Rs. 420,265
| |
|---|---|---|---|---|
| Powered | Yes | Yes | Yes | Yes |
| Power Configuration | 3 channel | 2 channel | — | 2-way, Full Range |
| Total Power (RMS) Watts | 4000 | 3200 | 3200 | 3200 |
| LF Driver Size (Inches) | 12" | 12" | 12" woofer | 12" Woofer |
| LF Driver Power Amp | 2400W | 2400W | — | — |
| HF Driver Size (Inches) | 12" | — | 3" Compression Driver, 1.4" Exit | 3" Compression Driver |
| HF Driver Power Amp | 800W | 800W | — | — |
| Frequency Range | 60 – 19,000Hz | 50 – 18,000Hz | — | — |
| Maximum Peak SPL | 139 dB SPL 1m half-space | 142 dB SPL 1m half-space | 142 dB SPL @ 1m | 134dB SPL |
| Horizontal Coverage Angle | 80 | 80 | 120 Degrees | 120° |
| Vertical Coverage Angle | 80 | 60 | — | 20° |
| Inputs | XLR-F | XLR-F | 1 x XLR | 1 x XLR |
| Outputs | Neutrik powerCON True 1 female | Neutrik powerCON True 1 female | 1 x XLR | 1 x XLR (pass-through) |
| Power Source | 100-240V AC, 50-60Hz | 100-240V AC, 50-60Hz | PowerCON TRUE1 TOP | powerCon IP65 Cable |
| Manufacturer's Standard Warranty | 1 Year | 1 Year | 1 Year | 1 Year |
| Additional Bajaao Standard Warranty | 1 Year | 1 Year | 1 Year | 1 Year |
| Frequency Response | — | 50 – 18,000Hz | 60Hz-18kHz | 45Hz-19kHz (±3dB) |
| Enclosure Material | — | — | 15mm Birch plywood | Birch Plywood, Steel Grille |
| Width | — | — | 40.5" | 14.5" |
| Height | — | — | 16.125" | 24.5" |
| Depth | — | — | 20.375" | 17" |
| Weight | — | — | 104 lbs. | 63 lbs |
| Signal Processing | — | — | — | Integrated DSP, 96kHz Sample Rate with 8 Preset Buttons |
| Mounting Options | — | — | — | Floor, 8 x M10 Fly Points |
