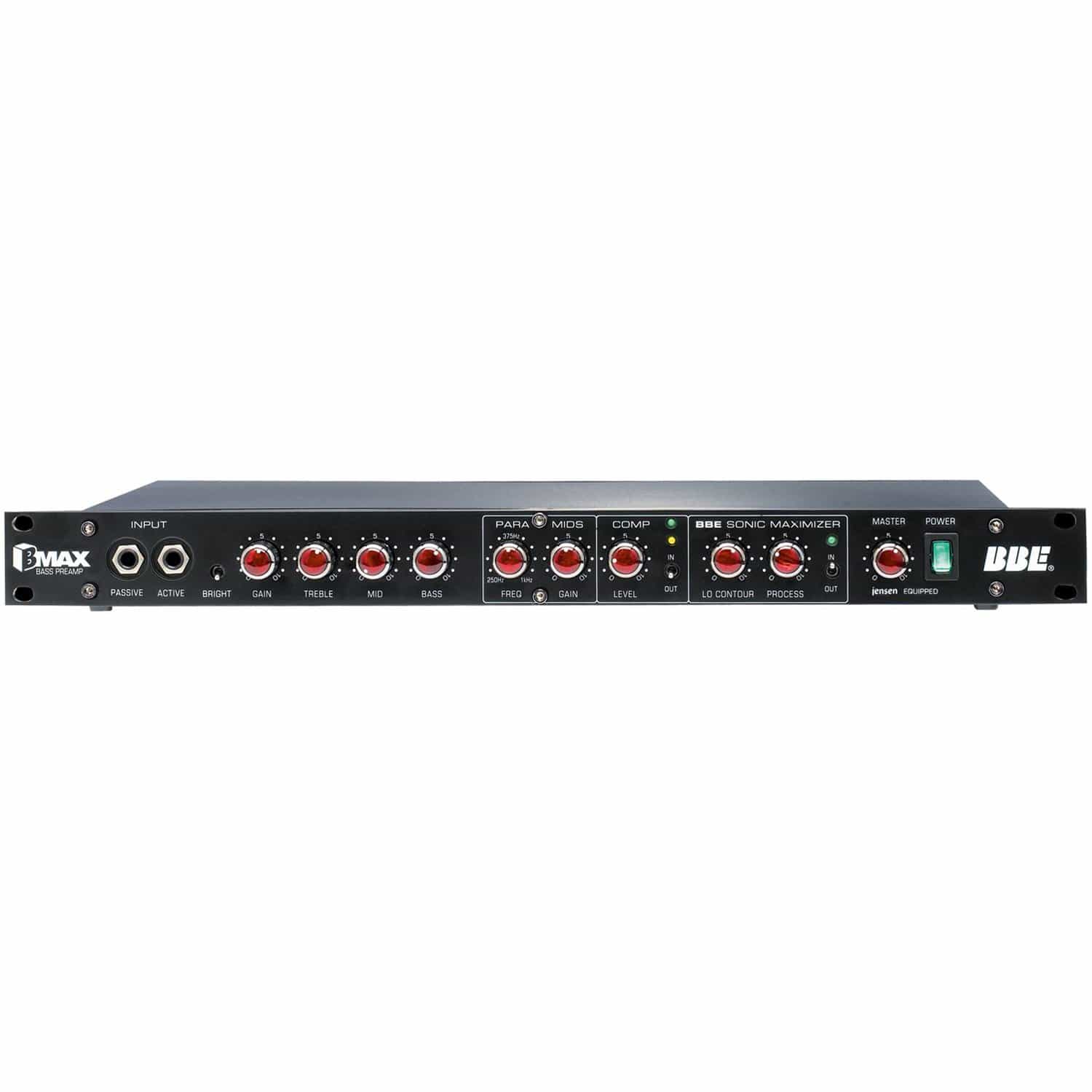

BBE BMAX All-Analog Bass PreAmp

BBE BMAX All-Analog Bass PreAmp Overview : The all-analog BMAX is a bass preamp with the warmth and dynamic range usually found in all-tube designs and delivers the punch and clarity of the best tube preamplifiers At the heart of the BMAX is a class A/B front-end, the input of which emulates the loading effect that the input of classic-design tube preamp would present to the bass pickups, and one of the key aspects in the warmth and punch of tube preamps.

The DI section is pure and clean with electronically balanced output Applications : Recording studio Live concerts Features : Electronically balanced output 1% metal film resistors Military spec PC board Specifications : Frequency response @ line out 15Hz to 30kHz ±3dB Signal to noise ratio 100dB @ unity Total harmonic distortion (THD) Less than 0.02% Maximum output +22dBuNoise -77dBu @ unity gain, eq flat Input impedance Balanced XLR: 600 Ohms, pin #2 hot or “+”Unbalanced ¼": 1k Ohms Output impedance Balanced XLR: 600 Ohms, pin #2 hot or “+”Unbalanced ¼": 1k Ohms Interactive EQ Treble (boost only): 18dB @ 6kHz Mid (cut only): 12dB @ 300Hz Bass (boost only): 16dB @ 40Hz Bright switch +8dB @ 5kHz, eq flat Para-mids ±12dB from 250Hz to 1kHz (* 0dBu=0.775mVrms) Designed and Engineered in USA Made in China.
