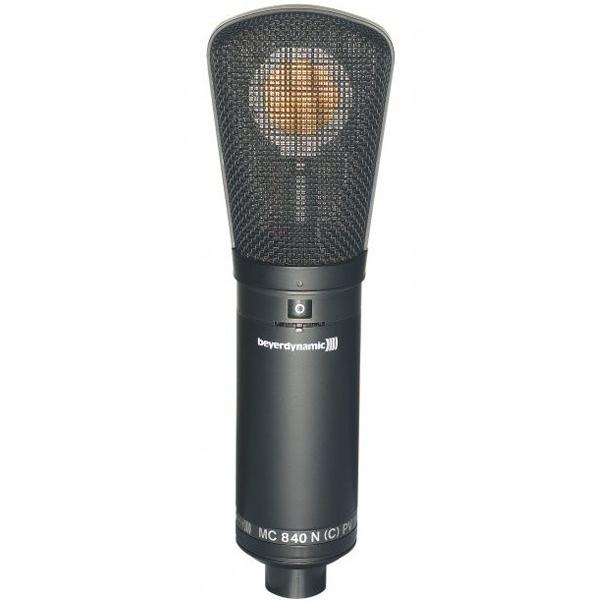

Beyerdynamic MC 840 Large Diaphragm Condenser Microphone Overview: The MC 840 is a very compact large diaphragm studio microphone with a gold vaporised double diaphragm and 5 selectable polar patterns (omnidirectional, wide cardioid, cardioid, hypercardioid, figure 8) On the basis of the MC 740 microphone capsule this new microphone has been equipped with an improved low-noise pre-amplifier and an impedance transformer without transducer.
Due to a two-stage roll-off filter (80 and 160 Hz) compensating the close miking effect and a two-stage pre-attenuation (-10 and -20 dB) the MC 840 is a superior microphone for any recording application It has been designed without compromise to capture every sound detail with absolute clarity and purity.
Applications for the MC 840 include recording orchestras resulting in a superb transparent sound Features: Large diaphragm capsule with gold vaporised double diaphragms Elastic capsule mounting Five selectable polar patterns Switchable pre-attenuation for high sound pressure levels Switchable two-stage roll-off filter Specifications: Transducer type: Condenser Operating principle: Pressure gradient Frequency response: 30 - 20,000 Hz Polar pattern: switchable: Omnidirectional Wide cardioid Cardioid Hypercardioid Figure eight Open circuit voltage at 1 kHz (0 dB = 1 V/Pa): 18 mV/Pa Nominal impedance: 180 Ω Load impedance: 1000 Ω Max.
SPL at 1 kHz, without pre-attenuation: 127 dB with -10 dB pre-attenuation: 137 dB with -20 dB pre-attenuation: 147 dB Signal-to-noise ratio rel to 1 Pa: Approx.
70 dB A-weighted equivalent SPL: Approx 17 dB Power supply: 11 - 52 V phantom power Current consumption: 4.6 mA Low frequency roll-off: switchable, 6 dB/octave at 80 Hz and 160 Hz Connector: 3-pin XLR male Pin 1 = ground, Pin 2 = +, Pin 3 = - Dimensions Length: 165 mm Shaft diameter: 37 mm Head diameter (L x W x H): 70 x 52 x 33 mm Weight: 286 g.
