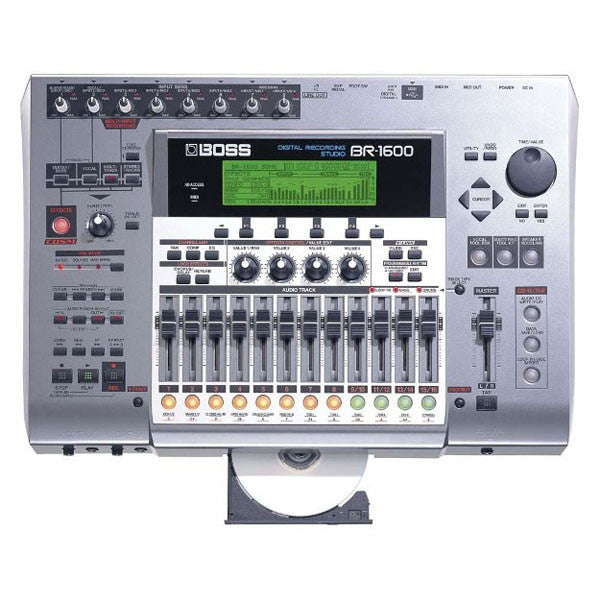

Boss BR1600CD Digital Recording Studio

This product has been permanently discontinued Bajaao India presents The BOSS's BR-1600CD 16-track recorder, the most popular and full-featured portable 16-track on the market, expands with a Version 2 upgrade.

Already powerful with its eight XLR inputs for simultaneous recording, pro-grade effects, and backing tracks, the BR-1600CD with Version 2 upgrade (free for all previous BR-1600 units) improves and adds to the existing effects, including COSM bass amp models from the GT-6B, enhanced vocal tools, MIDI sync capability, and more Also new to Version 2 €” the BR-1600CD can read BR-1200CD/1180CD song data, no conversion process necessary.

16-track (256 V-Track) digital studio with 80GB hard drive and CD-R/RW drive Record all 8 XLR inputs simultaneously€”ideal for tracking live performances Powerful onboard effects including COSM modeling for guitar, bass and vocals New Vocal Tool Box with auto pitch correction and Harmony Sequence function 16 individual Track EQs, plus 8 dedicated compressors Mastering Tool Kit with multi-band compression for loud and punchy CDs Create backing tracks quickly via independent Drum/Bass and Loop Phrase tracks USB port for easy data exchange, plus V-LINK video control COSM models added (derived from BOSS's GT-6B) Enhanced Vocal Tool Box for better vocals and backings MIDI Slave capable for control from external MIDI devices BR-1180CD/1200CD data compatible V-LINK requires Edirol DV7-PR with software version 1.50 or higher The Boss BR 1600CD Digital Recording studio specification: Track: 16 V-Track: 256 (16 V-Tracks per each Track) Up to 8 tracks can be recorded simultaneously, and up to 16 tracks can be played back simultaneously.

Maximum Useful Capacity / Recording Time Internal Hard Disk: 40 G bytes / Recording Time; 120 hours (conversion in one track) The recording times shown above are approximate Times may vary depending on the number of songs and size of imported loop phrase that were created.

The recording time s shown are the total for all tracks used Therefore, if each of the sixteen tracks contain an equal amount of data, the length of the resulting song will be approximately 1/16 of the time shown.

Signal Processing AD Conversion:24 bit, AF Method (Guitar/Bass), 24 bit,Modulation (VOCAL, MULTI-TRACK, STEREO TRACKS) DA Conversion: 24 bit,Modulation Internal Processing: 24 bit ( digital mixer section) Recording Data:16 bit linear Sample Rate 44.1 kHz Frequency Response 20 Hz to 20 kHz (+1/-3 dB) Total Distortion 0.02 % or less (INPUT SENS: CENTER, 1 kHz at nominal output level) Nominal Input Level (Variable) GUITAR/BASS jack: -10 dBu MIC 1-8 jacks (XLR): -40 dBu INPUT 1-8 jacks: -10 dBu Input Impedance GUITAR/BASS jack: 1 M ohms MIC 1-8 jacks (XLR): 12.5 k ohms (HOT-COLD), 6.5 k ohms (HOT-GND, COLD-GND) INPUT 1-8 jacks: 22 k ohms Nominal Output Level LINE OUT jack:-10 dBu Output Impedance LINE OUT jack: 2 k ohms PHONES 1, 2 jack: 100 ohms Recommended Load Impedance LINE OUT jack: 20 k ohms or greater PHONES 1, 2 jack: 8 to 50 ohms Residual Noise Level LINE OUT jack: -90 dBu or less (INPUT SELECT: GUITAR/BASS, input terminated with 1 k ohms, INPUT SENS: CENTER, IHF-A, typ.) Interface DIGITAL IN: S/PDIF 16-24 bit (coaxial type) DIGITAL OUT: S/PDIF 16-24 bit (coaxial type) USB connecter (B type) Display 130 x 36 mm (Backlit LCD) Connectors MIDI IN connector MIDI OUT connector USB connector DIGITAL IN connector (coaxial type) DIGITAL OUT connector (coaxial type) FOOT SW jack (1/4 inch phone type) EXP PEDAL jack (Stereo 1/4€? phone type) LINE OUT jacks (RCA Phono type) INPUT 1-8 jacks (unbalanced, 1/4€? phone type) MIC 1-8 jacks(XLR balanced) PHONES 1 jack (Stereo 1/4€? phone type) PHONES 2 jack (Stereo 1/4€? phone type) GUITAR/BASS jack (1/4€? phone type) Power Supply DC 12 V; AC Adaptor ( Roland PSB-7U) Power Consumption 3 A Accessories AC Adaptor: PSB-7U Owner's Manual Effect Patch List DISCRETE DRUMS (CD-ROM) Size and Weight ( excl AC Adaptor ) Width 494 mm 19-1/2 inches Depth 339 mm 13-3/8 inches Height 99 mm 3-15/16 inches Weight 4.9 kg 10 lbs.

13 oz The specifications are subject to change without notice.

Made in China.
