5% OFF
BSSBLU320IO
Shipping Details
Out of stock
Premium Warranty - 1 Year ₹8999
Premium Warranty - 2 Years₹13499

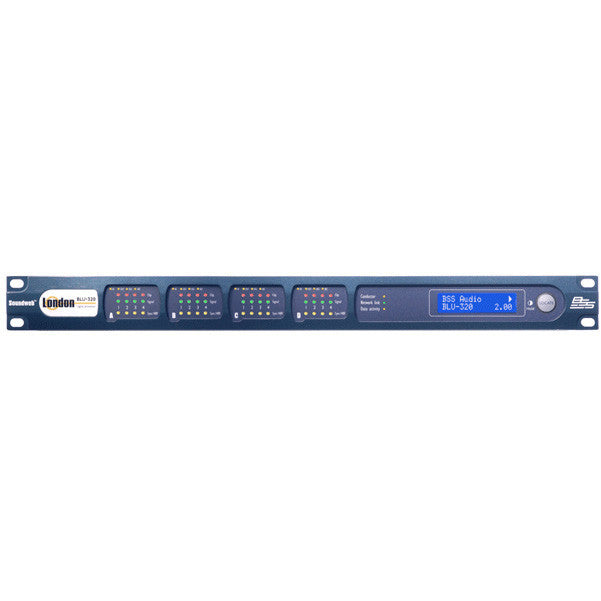

The Soundweb London BLU-320 offers configurable I/O, CobraNet audio, and a high bandwidth, fault tolerant digital audio bus The BLU-320 is configurable through HiQnet™ London Architect.
A rich palette of logic objects and a “drag and drop” method of configuration provide a simple and familiar design environment This processor features CobraNet audio with primary and secondary ports for fault tolerance.
Control is through a separate Ethernet port which allows CobraNet and control networks to be easily separated or mixed depending upon requirements The BLU-320 also features a low latency, fault tolerant digital audio bus of 256 channels which uses standard Category 5e cabling giving a distance of 100m between compatible devices.
Fiber optic media converters can be used to increase the distance between devices to over 40km Four card slots which accommodate analog inputs, analog outputs, digital inputs and digital outputs in banks of four facilitate many different device I/O configurations.
BSS BLU-320 Features: Four Input / Output Card Slots Configurable Inputs / Outputs Analog Inputs (with Phantom Power per Channel) Analog Outputs Digital Inputs (AES/EBU and S/PDIF) Digital Outputs (AES/EBU and S/PDIF) AEC Inputs (with Phantom Power per Channel) Telephone Hybrid Card Rich Palette of Logic Objects CobraNet Audio 256 Channel, Low Latency, Fault Tolerant Digital Audio Bus Clear Front Panel LED Indication Informative Front Panel Display Bi-Directional Locate Functionality 12 Control Inputs and 6 Logic Outputs for GPIO Integration Soundweb London Interface Kit for Third Party Control System Integration (Documentation) HiQnet Device Configuration, Control and Monitoring from HiQnet London Architect BSS BLU-320 Specifications: Chassis: 19" (single rack space) Custom I/O (card based): yes Analog Inputs: up to 16 Digital Inputs: up to 16 AEC Inputs: up to 16 Analog Outputs: up to 16 Digital Outputs: up to 16 Telephone Connection: up to 4 Max Inputs/Outputs: 16 Config: Software LCD Display: yes Logic Processing: yes RS-232: yes GPIO: yes Signal Processing (MHz): no Cobranet: yes SWL Digital Audio Bus: 256 AVB: no Dante: no Made in China.
