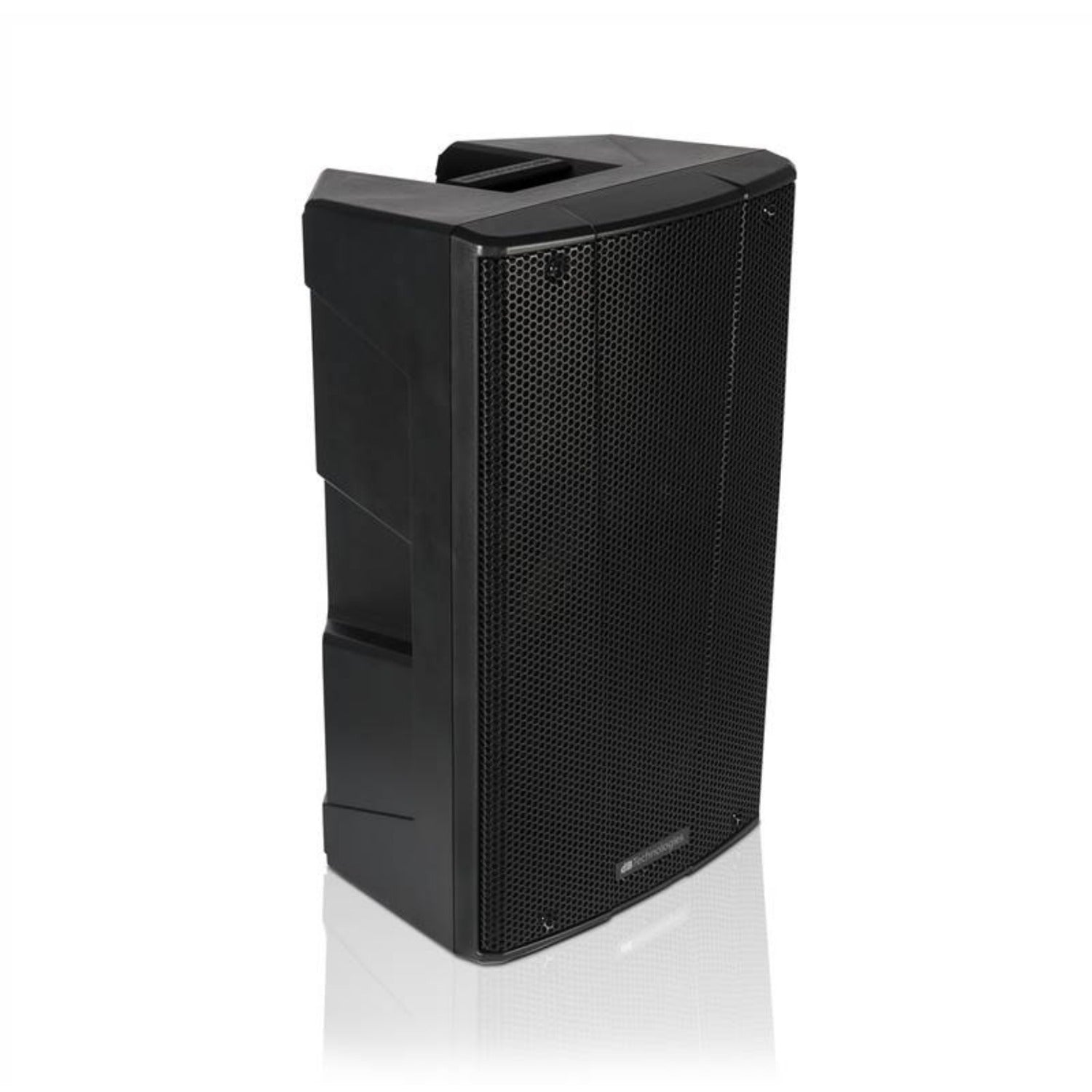

DB Technologies B-Hype 15 2-Way Active Speakers

Write a review
| Ask a question
SKU : DBT-BHYPE15
Save 32%
Rs. 64,735
Rs. 44,289

   Free Delivery available on this product.

Limited Period Offer : Get Flat 5% off! use Coupon Code: " FESTIVE " at checkout.

Seen It For Less? Learn More

Overview:

B·Hype series aims to provide a professional yet efficient sonic performance to all kind of users, combining an extremely efficient CLASS D amplifier with aggressive sound pressure levels (up to 126,5 dB for the 15” cabinet), while delivering the most accurate sound reproduction.

The new B·Hype 15 is a versatile active speaker. It is equipped with one 1” neodymium compression driver (1” voice coil), and one 15” woofer (2” voice coil). The dispersion pattern is asymmetrical on vertical axis, and it is diversified (top and bottom) on the horizontal one. This allows a narrower and more efficient sound coverage, and a better performance in case of reverberant environments. The combo input (with source type selection) allows an easy and versatile use, suitable for a dynamic microphone and standard line input. The user can enhance lower and upper frequencies with the convenient DSP preset function. A balanced link output allows the audio connection to a second loudspeaker.

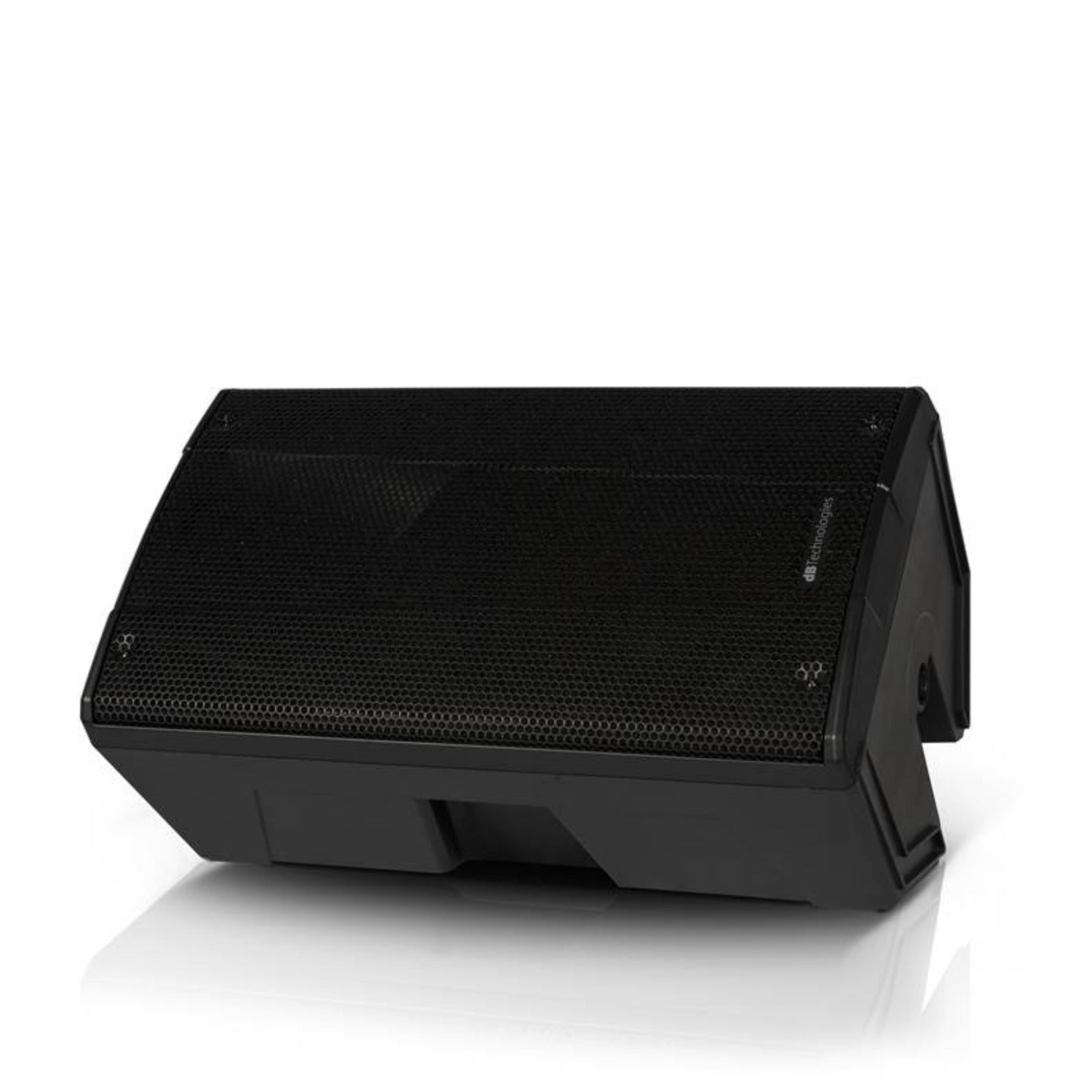

The featherweight cabinets (from 14 to 38 lbs) come with a clean and contemporary full grille design, enhancing both portability (3 handles -1xside and 1 on top-) and multifuncionality: each cabinet can be used horizontally as a stage monitor (on both sides) and features a pole mount cup in order to be used on tripods or stacked on dBTechnologies Subs.

Specifications:

Technical Data
Speaker Type : 2-Way Active Speaker

Acoustical data
Usable Bandwidth [-10dB] : 51 - 20.000 Hz
Frequency Response [-6 dB] : 57 - 19.700 Hz
Max SPL : 126.5 dB
Type HF : Compression Driver
HF voice coil : 1 "
LF : 15 "
LF voice coil : 2 "
Crossover Frequency : 2100 Hz (24 dB/oct.)
Horizontal Dispersion : asymmetrical 85° up / 120°down
Vertical Dispersion : 85° (+25/ -60°)

Amplifier
Amp Technology : Custom Made
Amp Class : Class D - Passice cooling (convection)
Power Peak : 400 W

Processor
Controller : DSP 28/56 bit- 48 kHz
Limiter : Peak, RMS, Thermal
Controls : Volume, Audio Input Sensitivity, DSP Preset
Input
Main Connection : VDE
Signal Input : Balanced 1xCombo IN (MIC/LINE)
SIGNAL Out : (Balanced) 1xXLR OUT (LINK)

Mechanics
Housing : Polypropylene
Grille : Full Metal Grille
Handles : 3 (2 on side 1 on top)
Pole Mount : 36 mm
Width : 415 mm (16.34 in)
Height : 725 mm (28.54 in)
Depth : 391 mm (15.39 in)
Weight : 17.4 kg (38.36 lbs)
Angles Up : Double wedge angle 45°

Features:

  • Maximum efficiency up to 126,5 dB SPL
  • Professional acoustic performance
  • Innovative horn design for uniform and extended coverage
  • Compact featherweight
  • Clean and contemporary design enhancing portability
  • 3 handles
  • Double stage monitor angle
  • Preset EQ Flat /Boost
