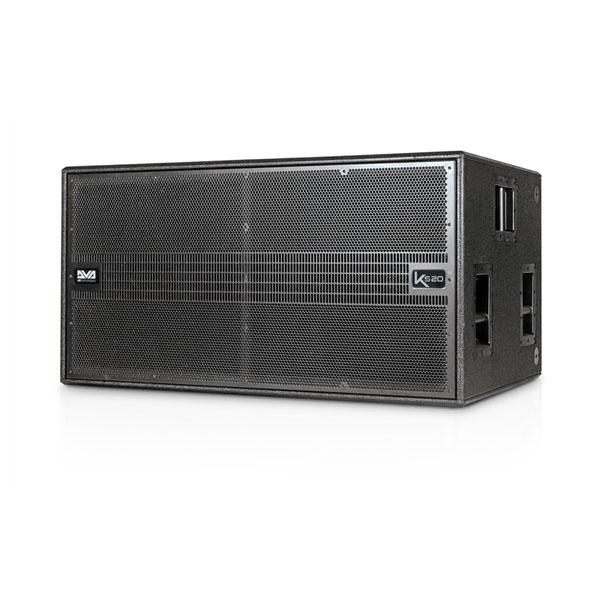

DB Technologies DVA KS20 PA Subwoofer

Write a review
| Ask a question
SKU : DBT-DVAKS20
Save 7%
Rs. 383,232
Rs. 355,349

   Free Delivery available on this product.

Limited Period Offer : Get Flat 5% off! use Coupon Code: " FESTIVE " at checkout.

Seen It For Less? Learn More

Overview

Featuring a double 18" woofer pairing in a bass reflex housing, the DVA KS20 is equipped with 2x Digipro G3 Power Amplifiers delivering 4000 W Peak. The system's internal design brings together the benefits of bass reflex and horn- loaded systems in a compact, sturdy housing covered with robust black laquer. The 56 Bit DSP manages limiters and delays for flawless system processing.
DVA KS20 is the perfect low-end complement for larger DVA K5 systems and can be used vertically in groundstacked configurations thanks to the DRK-20/10 pickpoints on top.

Specifications:
Technical Data
Speaker Type : Active Bassreflex-Horn loaded Subwoofer

Acoustical data
Frequency Response [- 10 dB] : 41 Hz - 120 Hz
Max SPL : 138 dB
Directivity : Omnidirectional
LF : 2x18 "
Voice Coil LF : 4 "

Amplifier
Amp Technology : Digipro® G3
Amp Class : Class D
RMS Power : 1800 W
Peak Power : 3600 W
Cooling : Convection
Power Supply : 1800 W SMPS with auto range PSU

Processor
Controller : DSP 56 Bit
AD/DA Converter : 24 Bit /48 Hz
System Presets : X-Over, Delay
Limiter : Dual Active Multiband RMS, Peak, Thermal
Crossover Frequency LF-HF : 90, 120 Hz (selectable)
Slope LF-HF : 24 dB/Octave

Input
Input Selection : 2x XLR Balanced
Output Selection : 2x XLR Balanced
Power Socket : 1x PowerCON in + 1x PowerCON Out
Controls : 1 x Input Sensitivity Rotary Switch
1 x Setup Rotary Encoder (delay up to 4.5 ms on-board)
1 x Polarity Inversion Switch
1 x X-over Frequency Switch (90 Hz, 120 Hz)
1 x Output mode Switch (Link- X-Over)

Mechanics
Housing : Plywood
Handles : 3x Per Side
Rigging Points : 2xPick Points on top to fix
DRK10/20 rigging frames
Pole Mount : 1 xM20 on top
Width : 1100 mm (43.31 in)
Height : 580 mm (22.83 in)
Depth : 720 mm (28.53 in)
Weight : 84 kg (185.19 lbs)
