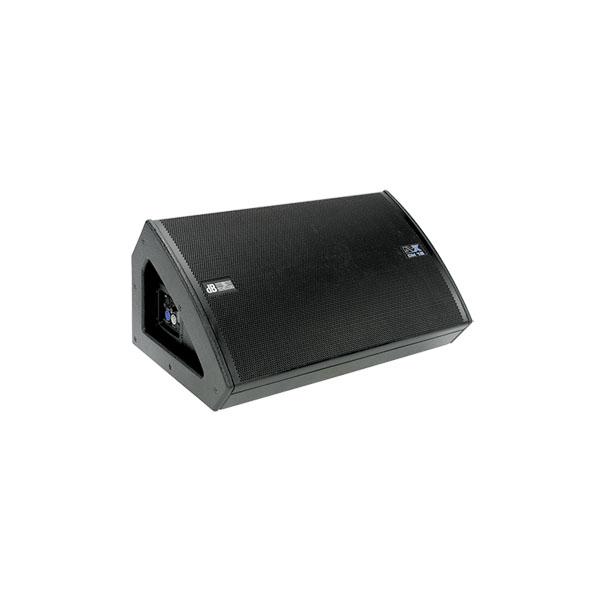

DB Technologies DVX DM15 Floor Monitor

Write a review
| Ask a question
SKU : DBT-DVXDM15
Save 7%
Rs. 245,131
Rs. 227,320

   Free Delivery available on this product.

Limited Period Offer : Get Flat 5% off! use Coupon Code: " FESTIVE " at checkout.

Buy Bajaao Premium Warranty- With Accidental Damage Cover & Free Pickup and Return T&C

Seen It For Less? Learn More
Overview:
Paired with high-output digipro digital power amps in a bi-amped confi guration,the DVX DM15 belies its unobtrusive look with performance that is far from understated, delivering plenty of power to cover midsized to large stages.An onboard controller manages the entire system, serving as an active equalizer, active x-over with phase and time alignment, and limiter.The DSP also offers switchable system presets that adapt the monitor’s performance to suit the given application.Made of rugged multiplex and coated with tough black lacquer, the cabinet sets up at two different angles.It is also equipped with a pole mount, enabling the DVX DM15 to be set on a tripod or speaker pole.

Specifications:

Technical Data
Speaker Type : 2-Way Active Stage Monitor

Acoustical data
Frequency Response [-10dB] : 50 - 20.000 Hz
Frequency Response [+/- 3dB] : 59 - 19.000 Hz
Max SPL : 132 dB
HF : 1.4 "
Type HF : Neodymium Compression Driver
Voice Coil HF : Titanium 2.5 "
Directivity : 60x40 °
Horn : CD Horn Aluminium
Rotatable Horn : YES
LF : 15 "
Type LF : Neodymium
Voice Coil LF : 3.5 "

Amplifier
Amp Technology : Digipro
Amp Class : Class D
Power RMS : 750 W
Peak Power : 1500 W
Cooling : Convection

Processor
Controller : DSP 24 Bit/48 kHz
System Presets : Flat, Monitor
Limiter : RMS, Peak. Thermal, Multiband
Crossover Frequency MF-HF : 1320 Hz
Slope MF-HF : 24 dB/Octave

Mechanics
Housing : Multiplex plywood
Housing Design : Low Profile Multifunctional
Angles Up : 35, 55 °
Rigging Points : 6x M8
Width : 734 mm (29.36 in)
Height : 338 mm (13.52 in)
Depth : 442 mm (17.68 in)
Weight : 21 kg (46.3 lbs)
