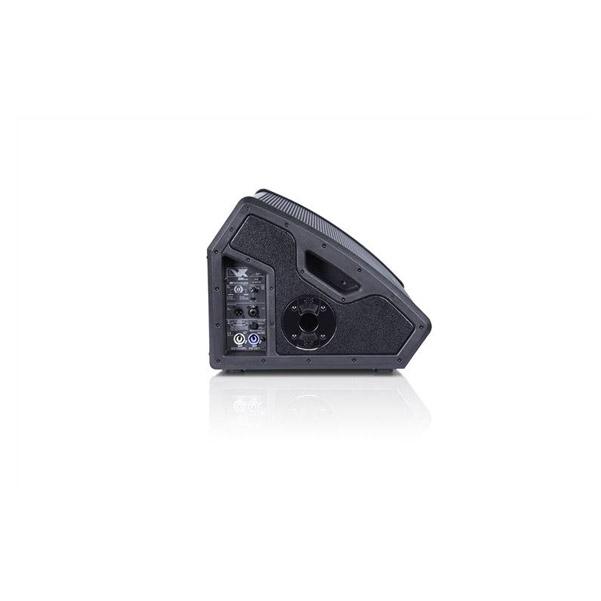

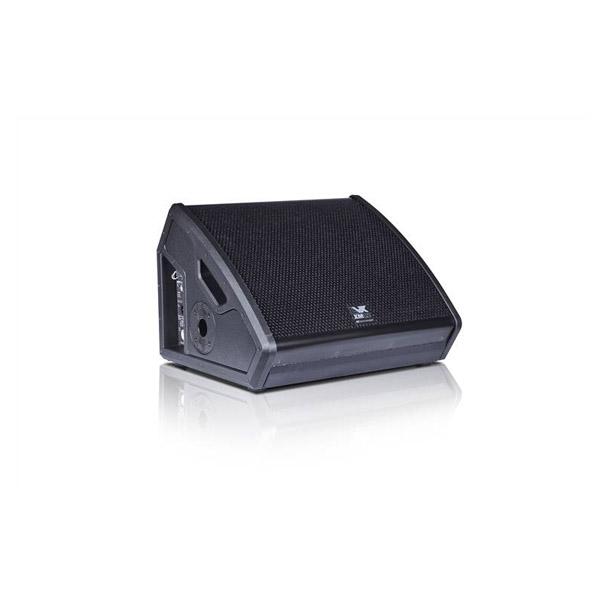

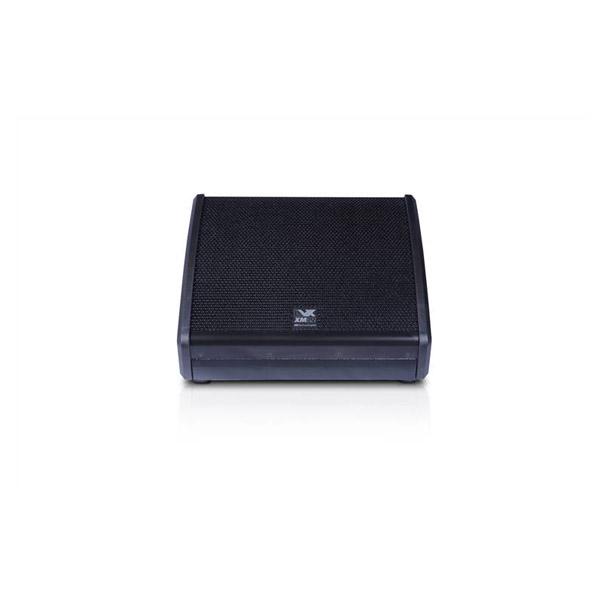

DB Technologies LVX XM 12 Floor Monitor

Write a review
| Ask a question
SKU : DBT-LVXXM12
Save 7%
Rs. 164,427
Rs. 152,439

   Free Delivery available on this product.

Limited Period Offer : Get Flat 5% off! use Coupon Code: " FESTIVE " at checkout.

Buy Bajaao Premium Warranty- With Accidental Damage Cover & Free Pickup and Return T&C

Seen It For Less? Learn More

Overview:

LVX XM 12 is equipped with heavy duty components and featuring a particular coaxial horn design, LVX XMs wedge deliver a powerful yet clear sound quality, raising the bar for intelligibility, definition and ease of use. These active wedges respond to all those live music and touring requirements where sound reinforcement systems must be lightweight, portable, and road resistant.

Specifications:


Technical Data
Speaker Type : 2-Way Active Coaxial Stage Monitor


Acoustical data
Frequency Response [- 6 dB] : 69 - 17,800 Hz
Max SPL : 127 dB
HF : 1 " Exit 1,4" v.c.
Directivity (HxV) : 90° x 70°
LF : 12", 2,5 v.c.

Amplifier
Amp Technology : Digipro G3
Amp Class : Class D
Power RMS : 600 W
Peak Power : 1200 W
Power Supply : SMPS with PSU Auto-range
Power Connection : PowerCon In/Link
Cooling : Convection

Processor
Controller : DSP 56 bit
Converter AD/DA : 24 bit/48 kHz
System Presets : 8 presets
Limiter : Peak, RMS, Thermal
Processing (filters) : Linear Phase FIR Filters
Controls : Rotary 8 positions,
MIC/LINE switch

Input
Mains Connections : PowerCON in/link
Signal Input : 1xCombo IN (XLR/Jack)
Signal Output : 1xXLR link OUT
USB connector : Mini USB B-Type (service only)

Mechanics
Housing : Plywood with black PVC Cover
Grille : Metal, black painted
Handles : 2, chassis integrated
Pole Mount : D36 mm
Width : 515 mm (20,28 in)
Height : 460 mm (18,11 in)
Depth : 370 mm (14,57 in)
Weight : 20,1 kg (44,31 lbs)
