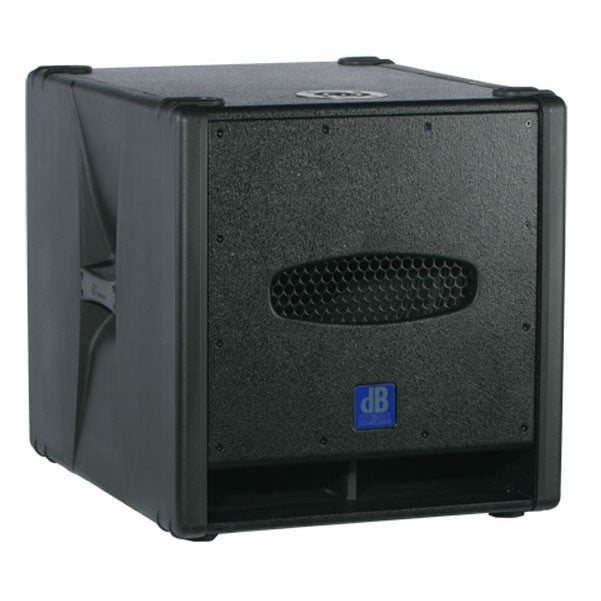

dB Technologies SUB 05D Active Bandpass Subwoofer

dB Technologies SUB 05D Active Bandpass Subwoofer

This item is out of stock

BAJAAO India presents the dB Technologies SUB 05D Active Bandpass Subwoofer.

The 400W/RMS SUB 05 D is an excellent choice for extending 10“ and 12” loudspeakers’ range. It packs the kind powerful low-end punch necessary for contemporary sounds and pumps out plenty of SPL for live applications. The unit connects easily and quickly courtesy of a built-in digital stereo crossover (DSP) with adjustable frequency and a phase inversion switch. Housed in the newly developed H.E.TTM enclosure featuring integrated control features, this rugged cabinet tough enough to stand up to the rigors of transport.

dB Technologies SUB 05D Specifications:

Speaker Type: Active Bandpass Subwoofer

Acoustical data

  • Frequency Response [-10dB]: 30 - 150 Hz
  • Max SPL: 129 dB
  • Directivity: Omnidirectional
  • LF: 15 "


  • Amp Class : Class D
  • Power PRG: 800 W
  • LF Amp: 400 W/RMS
  • Cooling: Convection


  • Controller: DSP 24 bit/ 48 kHz
  • Phase: 0, 180 °
  • Limiter: Dual Active Limiter
  • Crossover Frequency LF-MF: 2 setups Hz
  • Slope LF-MF: 24 dB/Octave

Input Section

  • Signal Input: 2x XLR
  • Signal Output: 2x XLR Link Out/X-Over Out
  • Power Socket: VDE


  • Housing: H.E.T
  • Housing Design: Square
  • Color: Black
  • Surface Texture: Textured acrylic laquer
  • Castors: No
  • Handles: 1x per side
  • Pole Mount: 1x 36mm on top
  • Front Grille: Wooden
  • Width: 490 mm (19.6 in)
  • Height: 515 mm (20.6 in)
  • Depth: 500 mm (20 in)
  • Weight: 31,8 kg (68.34 lbs).
