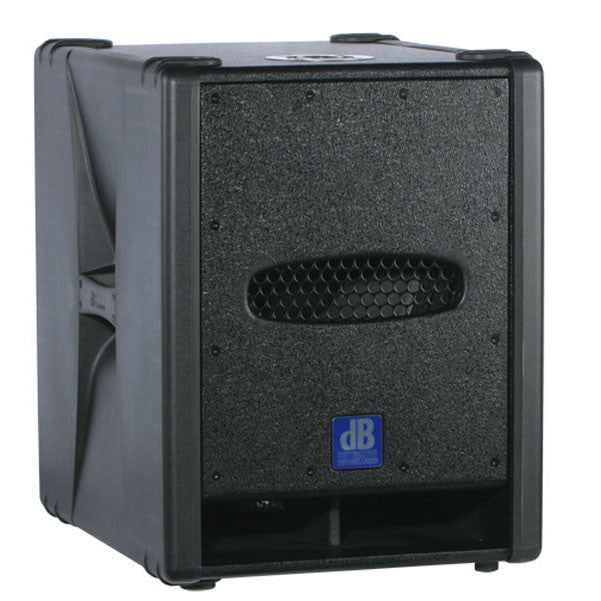

dB Technologies SUB 12D-Active Bandpass Subwoofer

dB Technologies SUB 12D-Active Bandpass Subwoofer

This item is out of stock

BAJAAO India presents the dB Technologies SUB 12D-Active Bandpass Subwoofer.

Equipped with a 400W/RMS digital power amp, the SUB 12 D is the perfect complement to 8“ or 10“ speaker systems for users looking to set up small but assertive satellite systems that deliver exceptional performance. Featuring compact dimensions and the innovative H.E.T housing, this unit is easy to transport and set up. Connecting satellites is an exercise in convenience thanks to an integrated digital crossover (DSP) with adjustable frequency.

dB Technologies SUB 12D Specifications:

Technical data

Speaker Type: Active Bandpass Subwoofer

Acoustical data

  • Frequency Response [-10dB]: 40 - 150 Hz
  • Max SPL: 127 dB
  • Directivity: omnidirectional
  • LF: 12 "


  • Amp Class: Class D
  • Power PRG: 800 W
  • LF Amp: 400 W/RMS
  • Cooling: Convection


  • Controller: DSP 24 bit/ 48 kHz
  • Phase: 0, 180 °
  • Limiter: Dual Active Limiter
  • Crossover Frequency LF-MF: 2 setups Hz
  • Slope LF-MF: 24 dB/Octave

Input Section

  • Signal Input: 2x XLR
  • Signal Output: 2x XLR Link Out/X-Over Out
  • Power Socket: VDE


  • Housing: H.E.T
  • Housing Design: Square
  • Color: Black
  • Surface Texture: Textured acrylic laquer
  • Castors: No
  • Handles: 1x per side
  • Pole Mount: 1x 36mm on top
  • Front Grille: Wooden
  • Width: 390 mm (15.6 in)
  • Height: 515 mm (20.6 in)
  • Depth: 500 mm (20 in)
  • Weight: 24,8 kg (52.91 lbs).
