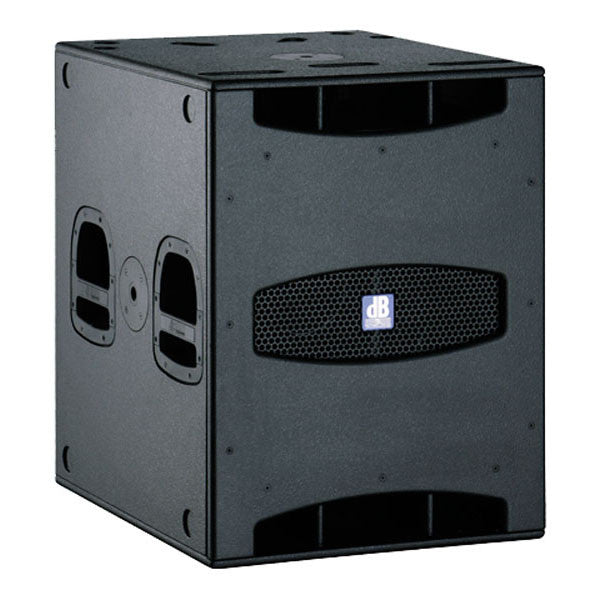

dB Technologies SUB 18D Active Bandpass Subwoofer

BAJAAO India presents the dB Technologies SUB 18D Active Bandpass Subwoofer _x005F The SUB 18D is the first-choice bass bin for users seeking powerful punch and ultra low-end response.

Fine-tuned to augment and amplify the high-power 18” woofer’s audio performance, this customengineered band-pass enclosure outperforms conventional bass-reflex designs, achieving higher peak levels _x005F dB Technologies SUB 18D Specifications: _x005F Speaker Type: Active Bandpass Subwoofer _x005F Acoustical data _x005F Frequency Response [-10dB]: 28 - 150 Hz _x005F Frequency Response [+/- 3dB]: 35 - 120 Hz _x005F Max SPL: 134 dB _x005F Directivity: Omnidirectional _x005F LF: 18 " _x005F Type\r\n Typern \n Type LF: RCF Precission Series rn Voice Coil LF: 4 " _x005F Amplifier _x005F Amp Technology : Digipro _x005F Amp Class : Class D _x005F LF Amp: 1000 W/RMS _x005F Cooling: Convection _x005F Processor _x005F Controller: Analog _x005F Phase: 0, 180 ° _x005F Limiter: RMS, Peakt, thermal _x005F Delay Option: No _x005F Crossover Frequency LF-MF: 90, 120 Hz _x005F Slope LF-MF: 24 dB/Octave _x005F Input Section _x005F Signal Input: 2x XLR _x005F Input Sensitivity [dBu]: Max.

-3 dBu _x005F Signal Output: 2x XLR X-Over Out/ Link Out _x005F Power Socket: Powercon In, Powercon Out _x005F Voltage Range: 240 V _x005F Mechanics _x005F Housing: Multiplex, birch plywood _x005F Housing Design: Square _x005F Color: Black _x005F Surface Texture: Textured acrylic laquer _x005F Castors: Optional _x005F Handles: 2x side _x005F Pole Mount: 1x M20 on top, 1x M20 on side _x005F Front Grille: Wooden, Metall grille _x005F Rigging Points: No _x005F Flytracks: No _x005F Width: 530 mm (21.2 in) _x005F Height: 700 mm (28 in) _x005F Depth: 600 mm (24 in) _x005F Weight: 42 kg (92.59 lbs) _x005F .
