dB Technologies VIO L208 2-way Active Line Array Module

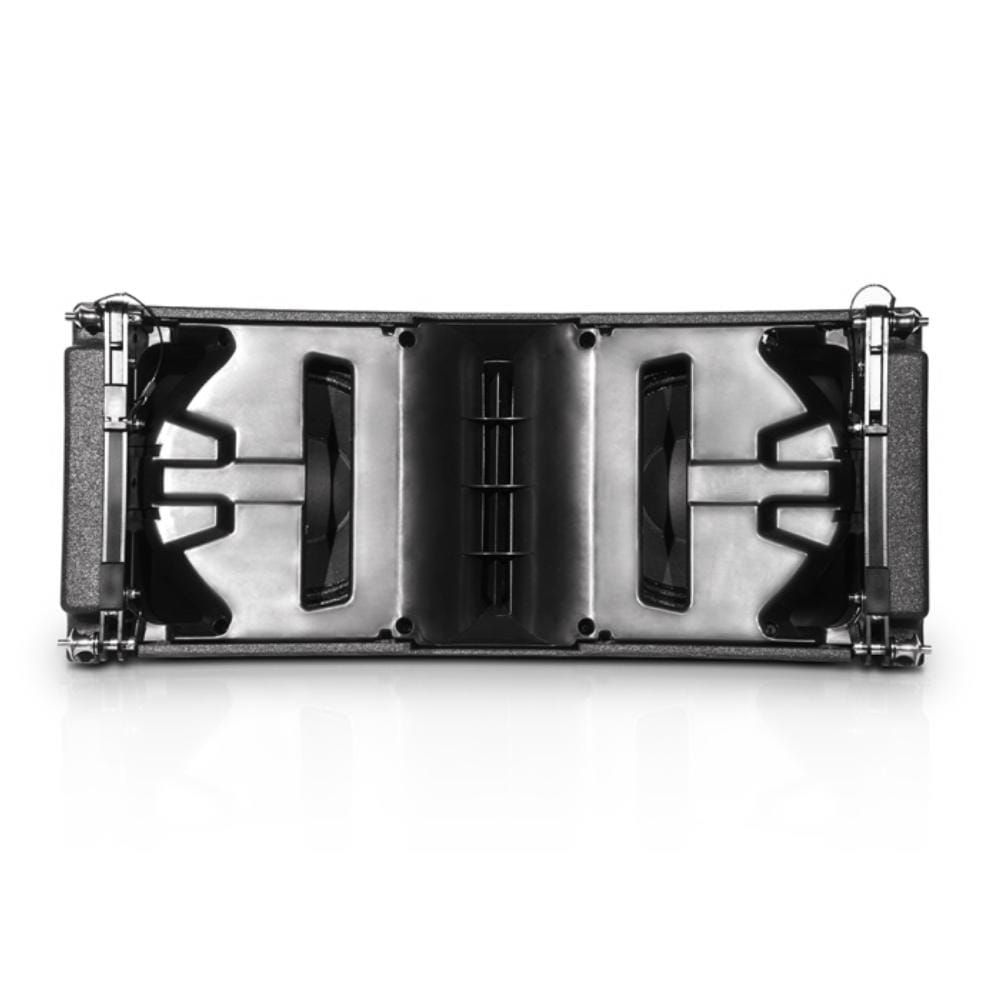

dB Technologies VIO L208 2-way Active Line Array Module Overview: VIO L208 is a 2-way active line array system equipped with 2x 8” neodymium woofers and 1x 1.4” neodymium compression driver (3” voice coil) The transducers are positioned behind an all-in-one panel which acts as a phase-plug and a HF horn.

The waveguide behind this panel contributes to the creation of a cylindrical wavefront, much to the advantage of hi-freq throw distance Each module of VIO L208 is driven by a Class-D Digipro G3 900W amp module with auto-range PSU.

A perfectly coherent emission is granted thanks to advanced sound processing with FIR filters The pre-amp module is also equipped with a digital optical isolation, guaranteeing interference-free input signal.

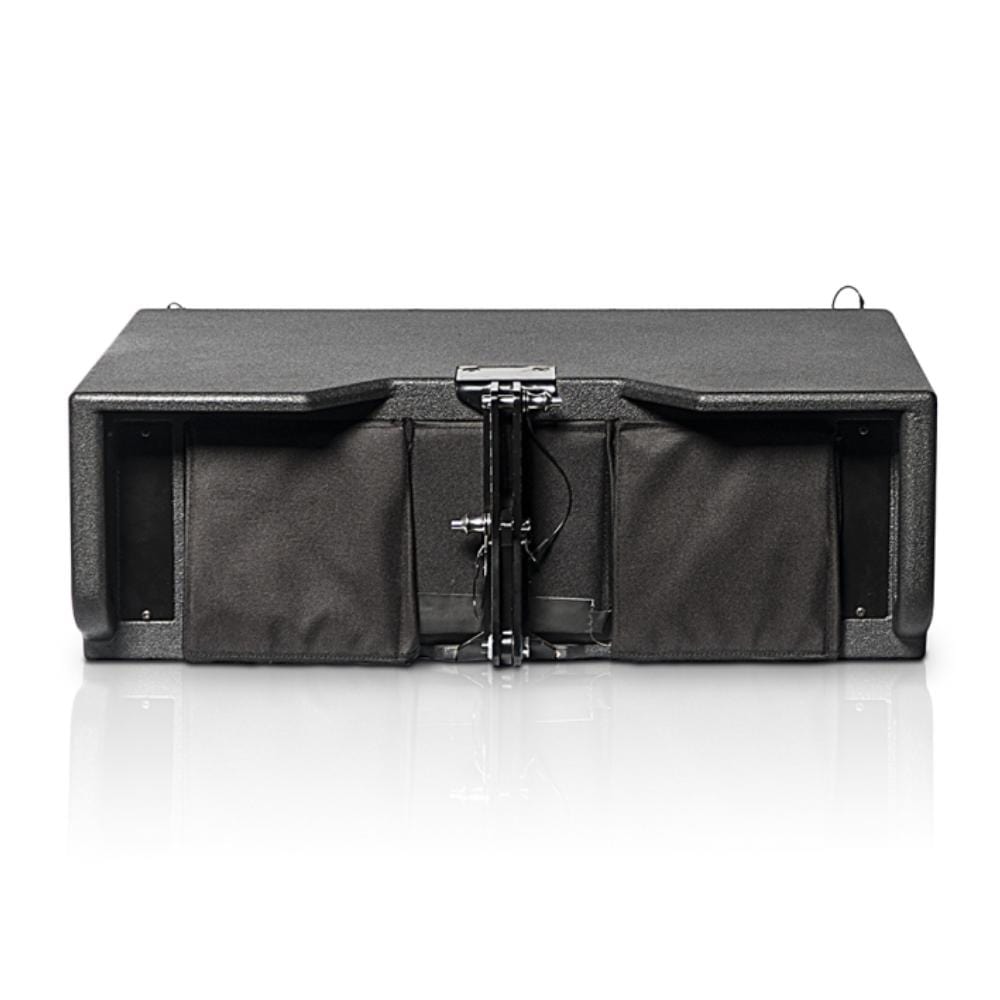

Just like larger VIO L210 system, VIO 208’s wooden enclosure comes with a built-in rigging system made for simplicity and speed: a back central rigging strand allows to set the relative splay angles, directly in the dedicated transport cart DT-VIOL208, able to house 4 modules plus 1 flying bar While lifting up the array, the rigging strand will automatically block the systems at the preset angles with no need of heavy lifting.

The dedicated 3-point flying frame DRK 208 allows to set a precise inclination of the array and is ready to carry an optional inclinometer laser pointer When not in use, the flybar can be easily stored in the transport cart.

AF-VIO1 accessory allows you to rig the module under a VIO S118 flyable subwoofer or, alternatively, to use VIO 208 as downfill in larger VIO L210 systems The same accessory also serves as safety interface in stacked configuration on VIO subs.

Specifications Speaker Type: 2-way Active Line Array Module Acoustical data Usable Bandwidth [- 6 dB]: 75 Hz - 20 KHz Frequency Response [+/- 3dB]: 85 Hz -18,1 KHz Max SPL: 133.5 dB HF: 1x1.4" Voice Coil HF: 3" Type HF: Neodymium LF: 2x8" Voice Coil LF: 2" Type LF: Neodymium Horizontal Directivity: 100° Vertical Directivity: Depends on array size and configuration Amplifier Amp Technology: Digipro G3 [bi-amped] Amp Class: Class-D Power RMS: 900 W Peak Power: 1800 W Cooling: Convection Power Supply: 900 W SMPS with Auto-range PSU Processor Controller: DSP 28/56 bit AD/DA Converter: 24 bit/48 KHz Limiter: Dual Active Peak, RMS, Thermal Processing (filters): FIR Linear Phase Filters Crossover Frequency LF-HF: 1000 Hz Input Signal Input: 1xXLR fem, Bal Signal Output: 1xXLR male, Bal.

Network: RDNet remote control RJ45 connector IN/OUT Mains Connections 1x PowerCON TRUE1 In 1x PowerCON TRUE1 Out Controls 1xSpeakers Coupling (7 presets) 1x HF Compensation (8 presets) 1XInput Attenuation Rotary Switch Mechanics Housing: Multiplex Plywood, Polyurea painted Handles: 1 x Side, 2 on back Rain Cover: Included Rigging Points: Integrated 3-point flying hardware Dimensions Width: 600 mm (25.98 in) Height: 260 mm (10.23 in) Depth: 390 mm (15.35 in) Weight: 18.1 Kg (39.9 lbs).
