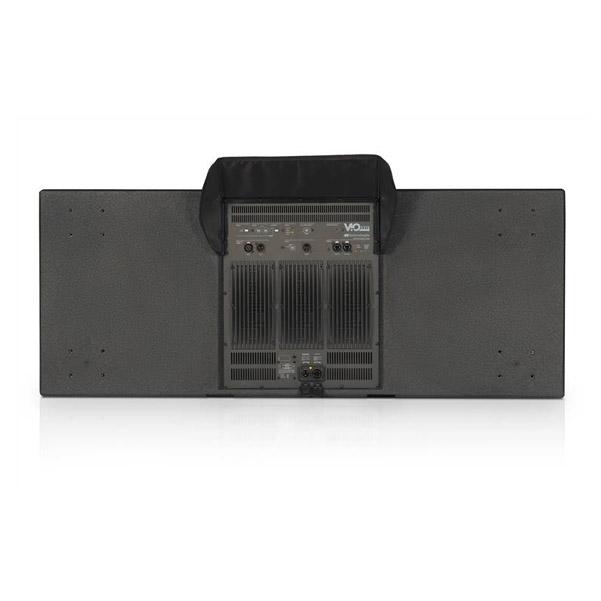

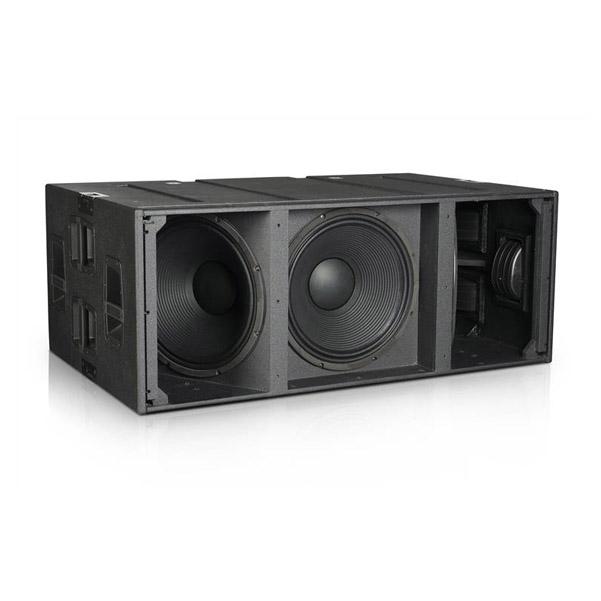

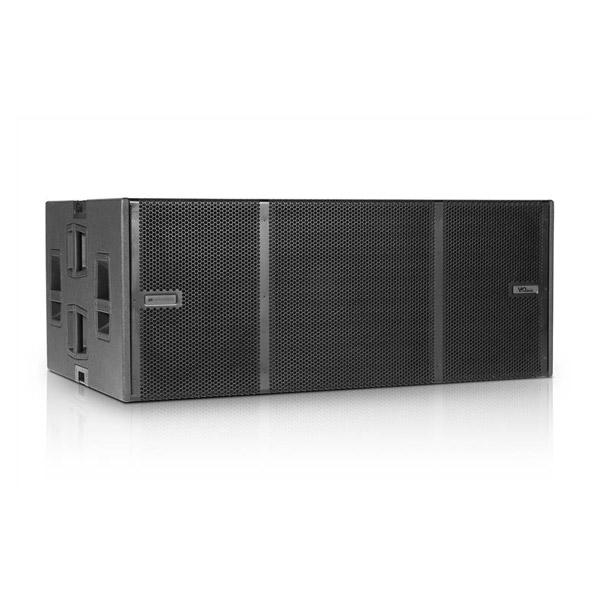

DB Technologies VIO S318 Active Subwoofer

Overview: As for lower frequencies, the VIO series is completed by VIO S318 subwoofer, a one of a kind system both for its acoustic configuration and majestic output Indeed, dBTechnologies succeded in designing an extraordinary powerful triple 18” woofer system while maximizing its frontal emission and extending lower frequencies.

Specifications: Technical Data Speaker Type : Active Bassreflex Semi-Horn-Loaded Subwoofer Acoustical data Frequency Response [- 6 dB] : 39 Hz to Cut Freq (X-Over Dependent) Frequency Response [- 10 dB] : 35 Hz (HPF) Max SPL : 143 dB LF : 3x18" Voice Coil : LF4 " Directivity : Omnidirectional Amplifier Amp Technology : Digipro® G3 Amp Class : Class D RMS Power : 2700 W Peak Power : 5400 W Cooling : Convection Power Supply : 2700 W SMPS with Auto Range PSU Processor Controller : DSP 64 bit AD/DA Converter : 24 bit/48 KHz Limiter : RMS, Peak, Thermal Delay Option : 0-9.9 ms internal Steps of 0.1 ms Crossover Frequency : LF-HF70-105Hz + Full range LF-Xover out slope : 24 dB/Octave Input Signal Input : 1xXLR balanced 1xRJ45 LINK (RDNet) Signal Output : 1x XLR balanced 1xRJ45 LINK (RDNet) Power Socket : 1xPowerCON TRUE1 IN 1xPowerCON TRUE1 OUT Controls : 1x Input Attenuation Rotary Switch 2x Rotary Encoder (Delay 9.9 ms) 1XPolarity Inversion Switch (0° or 180°) 1xCardioid Mode Switch 1x X-Over Freq Switch (70-105 Hz + Full Range (steps of 5 Hz) Mechanics Housing : Multiplex plywood Polyurea painted Handles : 4x Per Side Aluminium Raincover : Included Rigging Points : 2xPick Points on top to fix DRK-210 rigging frame Width : 1300 mm (51.18 in) Height : 520 mm (20.47 in) Depth : 800 mm (31.5 in) Weight : 103.9 kg (229.06 lbs) Features: Active 3x18" bassreflex semi-horn loaded subwoofer Internal design to nmaximize in-phase frontal emission On-board delay for perfect time alignment On-board cardioid array configuration preset Frequency range extending down to 35Hz Network ready with an integrated RDNet port.
