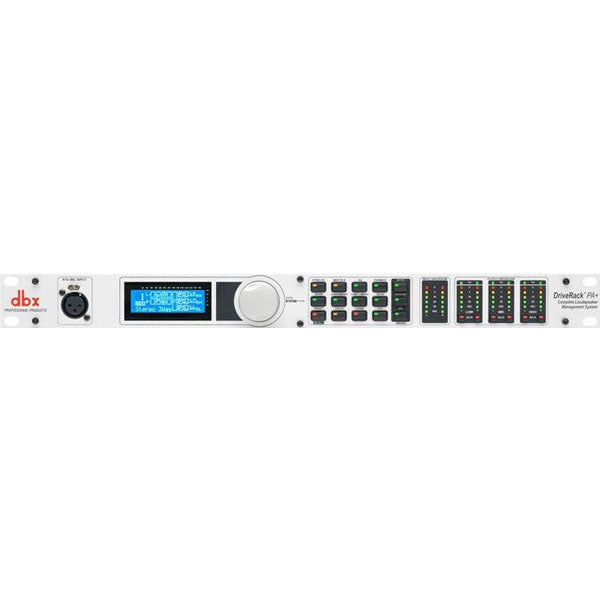

dbx DriveRack PA+ Complete Loudspeaker Management System

dbx DriveRack PA+ Complete Loudspeaker Management System

This item is out of stock


Buy dbx DriveRack PA+ Complete Loudspeaker Management System online in India at the best price with free shipping from BAJAAO - India's music equipment superstore.

dbx DriveRack PA+ Complete Loudspeaker Management System.

A reliable loudspeaker management system that optimizes your sound.

    The dbx DriveRack PA+ Loudspeaker Management System builds on the tradition of the earlier DriveRack PA—one of the world's most popular loudspeaker managers. Showcasing all the features that users around the world have come to expect, including easy setup, rock-solid reliability, and unparalleled sound quality, the new DriveRack PA+ goes to great lengths to earn its "plus " designation. With more settings, more control and enhanced circuitry, dbx DriveRack PA+ puts the sound you seek right at your fingertips.

    Although the DriveRack PA+ is loaded with functions and features, it is easy to set-up and use. The dbx exclusive Set Up Wizards walk you through system set up with easy-to-follow step-by-step instructions. Just pick your speakers and amps from the built-in list on the PA+, and then let the Auto Level Wizard fine tune the level settings of each speaker. You can then let the Auto EQ Wizard help you further optimize your sound. Finish up by using the AFS Wizard, which automatically sets filters to eliminate any feedback during performances. Within minutes, your PA system will sound like it was tuned by a pro! No experience required. Get the most out of your PA with the dbx DriveRack PA+, the worldwide standard in loudspeaker management.

    dbx DriveRack PA+ Features:

    • Setup Wizard Steps Through Speaker and Amp Selection and Levels
    • Auto EQ Wizard with 28-Band RTA Tunes Your System For The Venue
    • AFS Wizard Helps Eliminate Feedback
    • Stereo Feedback Elimination with 12 feedback notch filters
    • dbx 120A Sub-harmonic Synthesizer
    • Classic dbx Input Compression
    • JBL Speaker and Crown Power Amp Tunings included
    • USB Firmware and Speaker Tunings Field Updatable With Harman HiQnet System
    • Architect
    • Full time RTA function
    • Front-Panel Output Mutes
    • Pink Noise Generator (used with Auto EQ and Auto Level Wizards)
    • Linked Stereo DSP Processing for ease of use
    • 24-Bit ADC/24-Bit DAC, >113 dB Dynamic Range
    • 2-Channel XLR Input and 6-Channel XLR Output
    • 2x3, 2x4, 2x5, 2x6 Crossover Configurations
    • Dual 28-band Graphic EQ-Linked or Dual Mono
    • Stereo Multi-band Parametric EQ
    • Stereo Output Limiters
    • Output Alignment Delay
    • Power on/off Mute Circuitry
    • Front-panel RTA-M XLR input with phantom power
    • 25 User Programs/25 Factory Programs
    • Full Graphic LCD Display
    • Front Panel Input and Output Meters

    dbx DriveRack PA+ Specifications:

    • ANALOG INPUTS:
    • Number of Inputs: (2) Line inputs. (1) RTA Mic input
    • Connectors: (2) Female XLR line inputs, XLR RTA Mic input
    • Type: Electronically balanced/RF filtered
    • Impedance: > 40kohm
    • Max input line level: > +20dBu
    • CMRR: > 45dB
    • RTA Mic Phantom Voltage: +15VDC
    • RTA Mic EIN:
    • ANALOG OUTPUTS:
    • Number of Outputs: (6) Line Outputs
    • Connectors: Male XLR
    • Type: Electronically balanced, RF filtered
    • Impedance: 120 ohms
    • Max Output Level: > +20dBu
    • CMRR: > 45dB
    • Alignment Delay: 10ms per channel (60ms total)
    • A/D PERFORMANCE:
    • Type: dbx Type IV conversion system
    • Dynamic Range: 110 dB A-weighted, >107 dB unweighted
    • Type IV dynamic range: 123 dB with transient material, A-weighted, 22kHz BW
    • 121 dB with transient material, unweighted, 22kHz BW
    • 115 dB typical with program material, A-weighted,
    • 22kHz BW
    • Sample Rate: 48kHz
    • D/A PERFORMANCE:
    • Dynamic Range: 112 dB A-weighted, 110 dB unweighted
    • Sample Rate: 48kHz
    • SYSTEM PERFORMANCE:
    • Dynamic Range: 110 dB A-weighted, >107 dB unweighted
    • THD+N: 0.004% typical at +4 dBu, 1kHz, 0 dB input gain
    • Frequency Response: 20Hz — 20kHz, +/- 0.5 dB
    • Interchannel Crosstalk:
    • Crosstalk input to output:
    • POWER SUPPLY:
    • Operating Voltage: 100-120VAC 50/60 Hz - EU: 220-240 VAC 50/60 Hz,
    • Power Requirements: 25 Watts
    • PHYSICAL:
    • Weight: 5.5 lbs. (2.5 kg); Shipping weight 7 lbs. (3.18 kg)
    • Dimensions: 1.75" H x 5.75" D x 19" W, (4.4 x 14.6 x 48.26 cm)
